Valve Rocker Cover

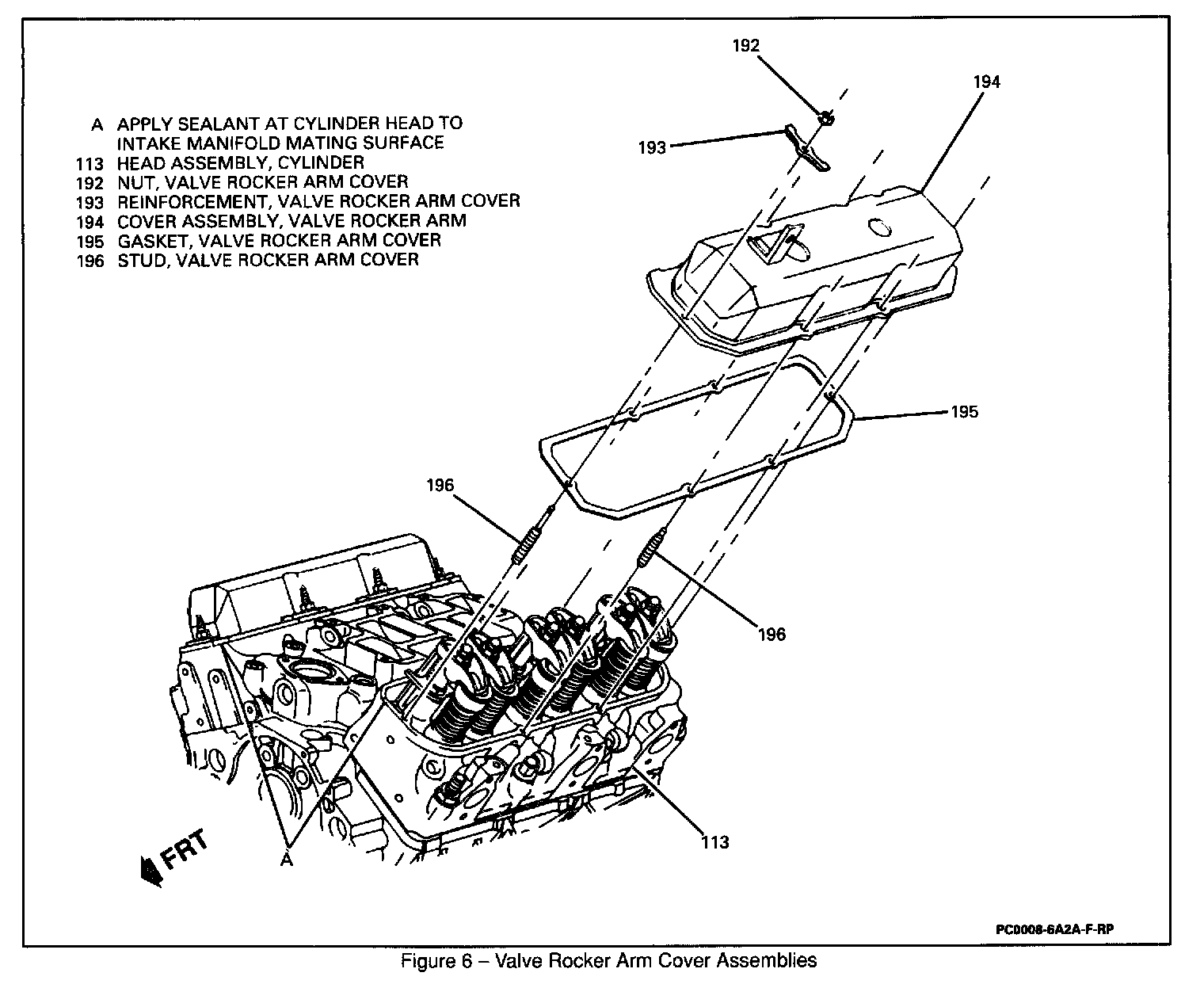

VALVE ROCKER COVER

Install or Connect
1. Valve rocker cover gasket (195) and cover (194).
- Apply sealant GM p/n 12345739 at cylinder head to lower manifold joint.

2. Reinforcement (193) and nuts (192).
- Tighten Nuts (192) to 10 N.m (89 lb. in.).
