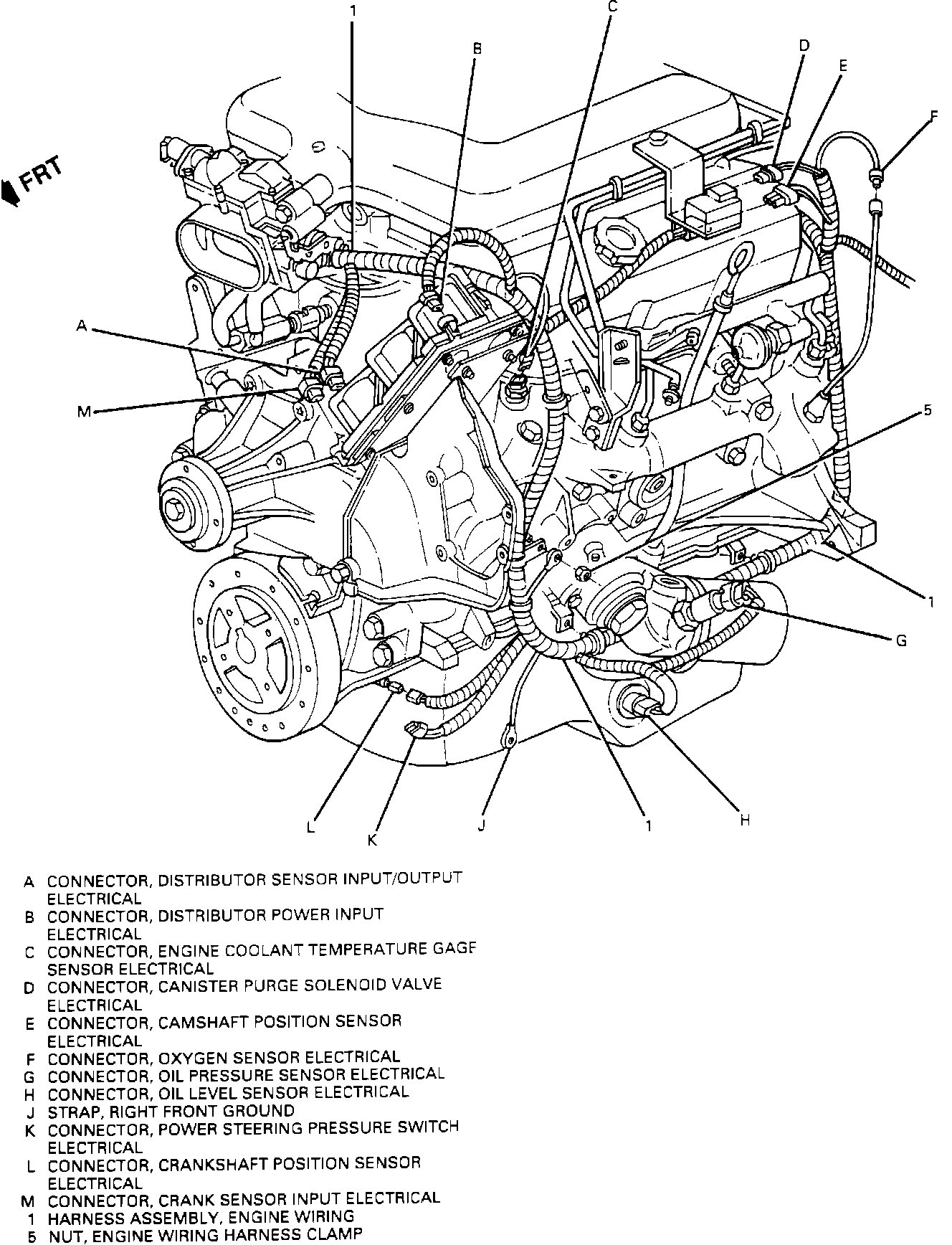

Left Side View
Left Side Engine Wiring Harness:
A CONNECTOR, DISTRIBUTOR SENSOR INPUT/OUTPUT ELECTRICAL
B CONNECTOR, DISTRIBUTOR POWER INPUT ELECTRICAL
C CONNECTOR, ENGINE COOLANT TEMPERATURE GAGE SENSOR ELECTRICAL
D CONNECTOR, CANISTER PURGE SOLENOID VALVE ELECTRICAL
E CONNECTOR, CAMSHAFT POSITION SENSOR ELECTRICAL
F CONNECTOR, OXYGEN SENSOR ELECTRICAL
G CONNECTOR, OIL PRESSURE SENSOR ELECTRICAL
H CONNECTOR, OIL LEVEL SENSOR ELECTRICAL
J STRAP, RIGHT FRONT GROUND
K CONNECTOR, POWER STEERING PRESSURE SWITCH ELECTRICAL
L CONNECTOR, CRANKSHAFT POSITION SENSOR ELECTRICAL
M CONNECTOR, CRANK SENSOR INPUT ELECTRICAL
1 HARNESS ASSEMBLY, ENGINE WIRING
5 NUT, ENGINE WIRING HARNESS CLAMP
