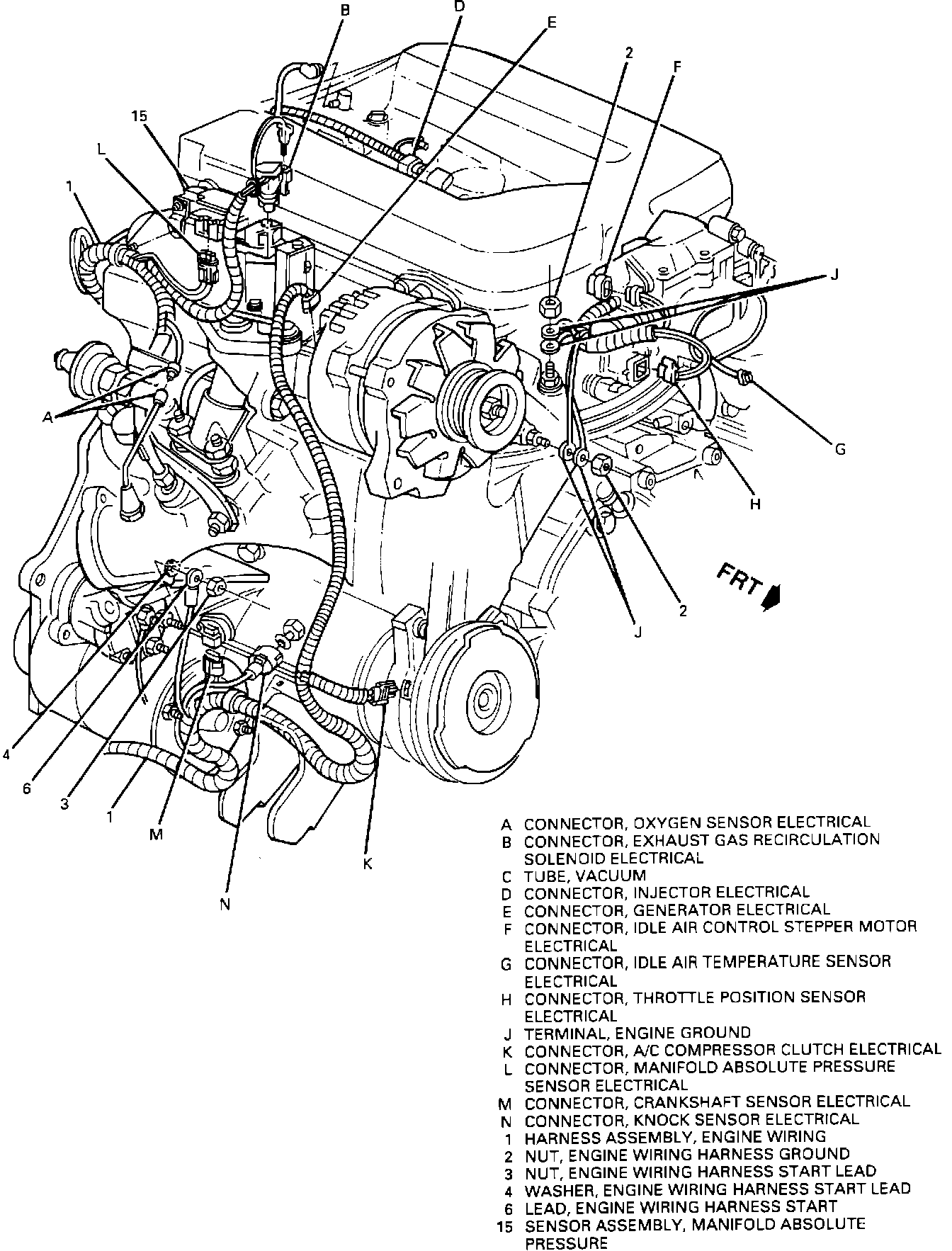

Right Side View

Right Side Engine Wiring Harness Assembly:

A CONNECTOR, OXYGEN SENSOR ELECTRICAL
B CONNECTOR, EXHAUST GAS RECIRCULATION SOLENOID ELECTRICAL
C TUBE, VACUUM
D CONNECTOR, INJECTOR ELECTRICAL
E CONNECTOR, GENERATOR ELECTRICAL
F CONNECTOR, IDLE AIR CONTROL STEPPER MOTOR ELECTRICAL
G CONNECTOR, IDLE AIR TEMPERATURE SENSOR ELECTRICAL
H CONNECTOR, THROTTLE POSITION SENSOR ELECTRICAL
J TERMINAL, ENGINE GROUND
K CONNECTOR, A/C COMPRESSOR CLUTCH ELECTRICAL
L CONNECTOR, MANIFOLD ABSOLUTE PRESSURE SENSOR ELECTRICAL
M CONNECTOR, CRANKSHAFT SENSOR ELECTRICAL
N CONNECTOR, KNOCK SENSOR ELECTRICAL
1 HARNESS ASSEMBLY, ENGINE WIRING
2 NUT, ENGINE WIRING HARNESS GROUND
3 NUT, ENGINE WIRING HARNESS START LEAD
4 WASHER, ENGINE WIRING HARNESS START LEAD
6 LEAD, ENGINE WIRING HARNESS START
15 SENSOR ASSEMBLY, MANIFOLD ABSOLUTE PRESSURE
