Front Camber Adjustment

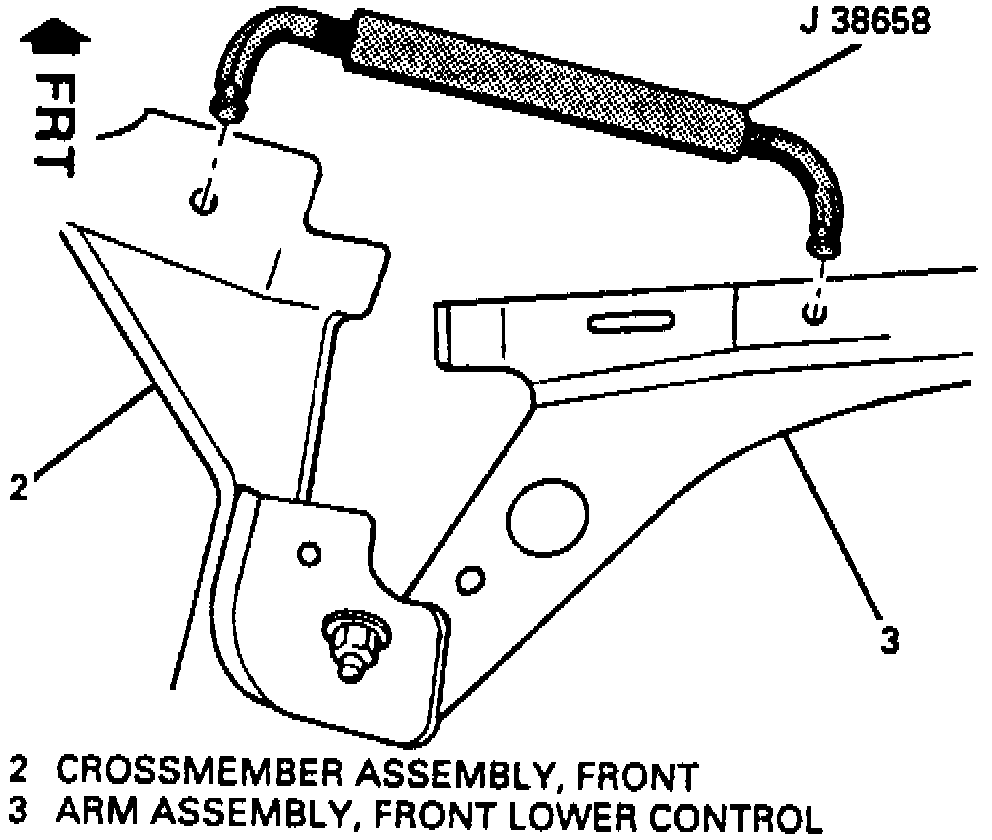

Fig. 2 Front Camber Adjustment Tool Installation:

1. Jounce front bumper three times to allow vehicle to return to normal ride height, then raise and support vehicle.
2. Loosen front lower control arm nuts, then install camber/caster adjuster tool No. J 38658, or equivalent, to slot holes in lower control arm and front crossmember, Fig. 2.
3. Adjust camber to specifications by rotating turnbuckle on camber/caster adjuster. Clockwise increases caster, counterclockwise decreases caster.
4. Remove camber/caster adjuster, then torque front lower control arm nuts to 96 ft. lbs.
