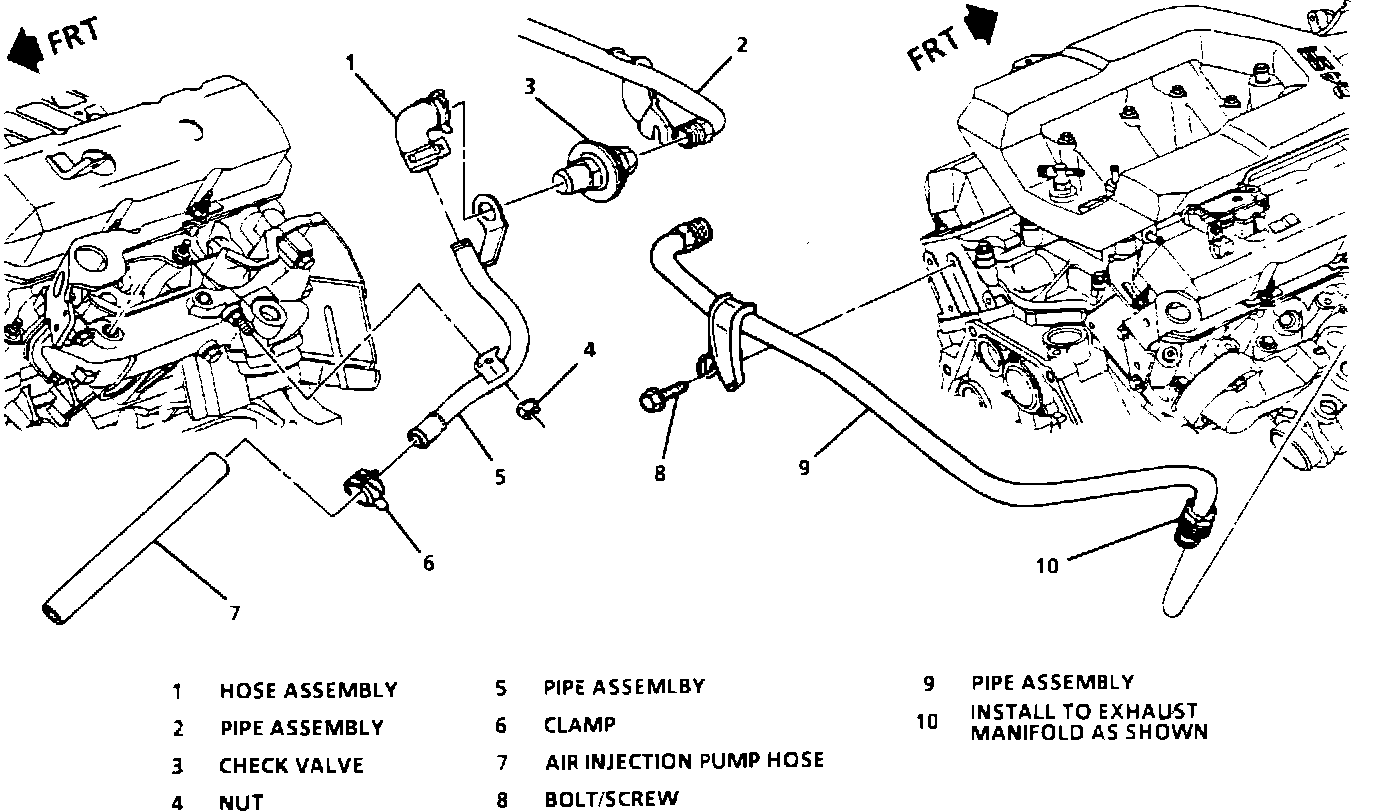

Air Injection Check Valve: Service and Repair
AIR System:
Remove or Disconnect 1.
Check valve clamp
2.
Hose from check valve
3.
Left check valve pipe
4.
Unscrew check valve from
air injection pipeInstall or Connect 1.
Screw check valve onto
air injection pipe Torque Value: 19 Nm (14 lb ft)
2.
Air pipe to exhaust manifold
3.
Air hose to check valve
4.
Check valve clamp
