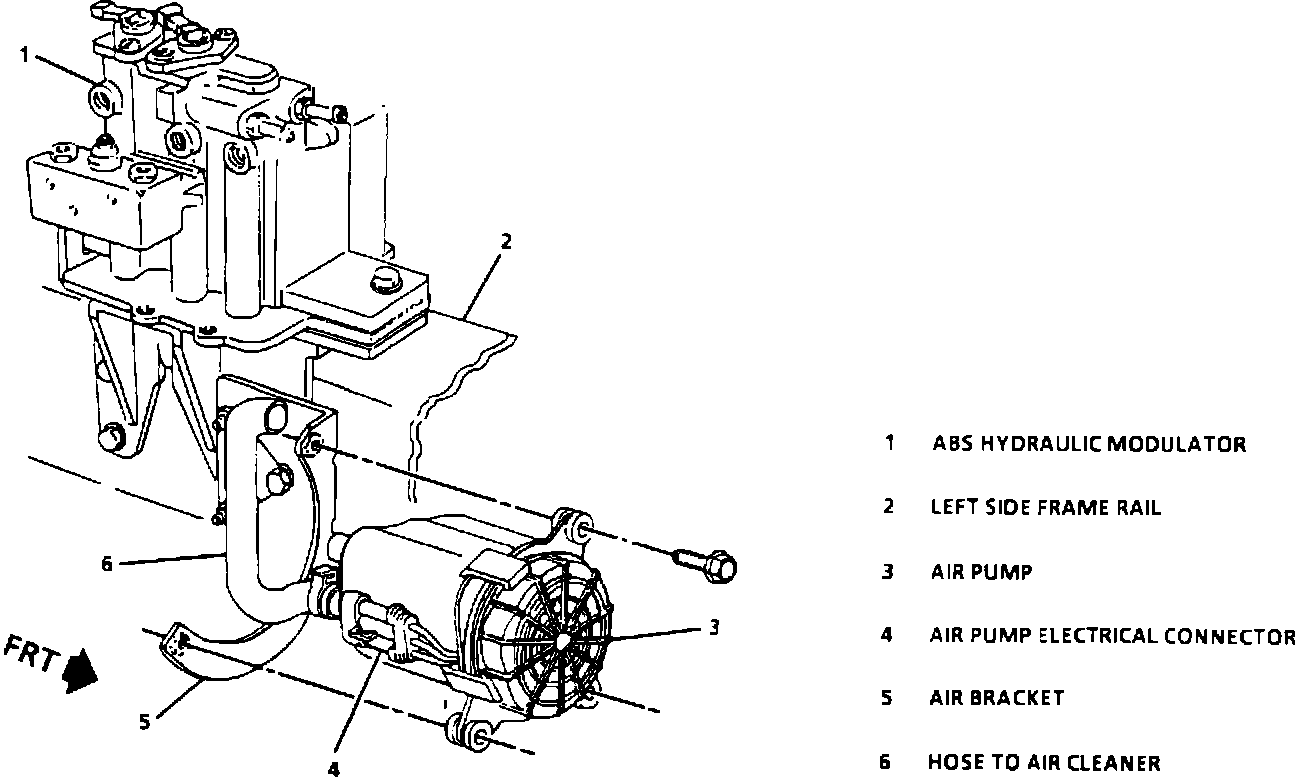

Air Injection Pump: Service and Repair

AIR Pump Service:





Remove or Disconnect

1. Negative battery cable
2. Raise vehicle
3. Electrical connectors from air pump
4. Outlet and inlet hoses
5. Three electric air pump mounting bolts from bracket

Install or Connect

1. Electric air pump mounting bracket to electric air pump assembly
2. Three mounting bolts
Torque Value: 12 Nm (9 lb in)
3. Outlet and inlet hoses to pump
4. Electric connectors to air pump
5. Lower vehicle
6. Negative battery cable
7. Check AIR system for proper operation
