Clutch Switch: Description and Operation

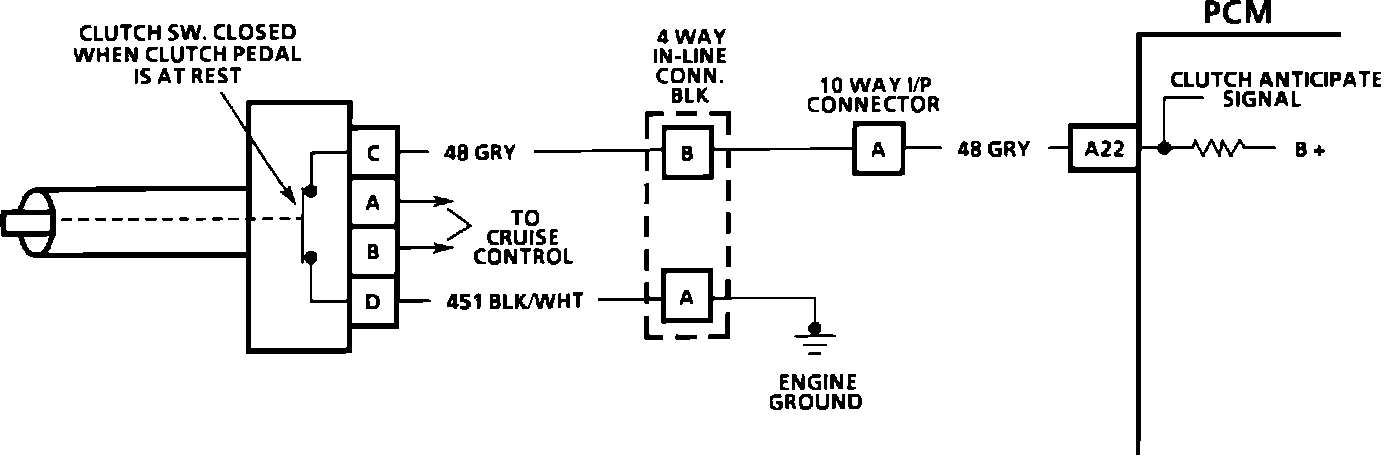

Clutch Switch Circuit:

Purpose:
The PCM utilizes a Clutch Anticipate Switch to monitor clutch pedal status.

Operation:
The clutch switch is normally closed when the clutch pedal is at rest. When the clutch pedal is depressed, the switch will change from "OFF" to "ON". The PCM runs a diagnostic check that looks for a change of state in the switch logic.

Location:
The clutch switch is mounted to the clutch pedal assembly.
