Door Window Channel and Window Rear Guide Channel Assy.

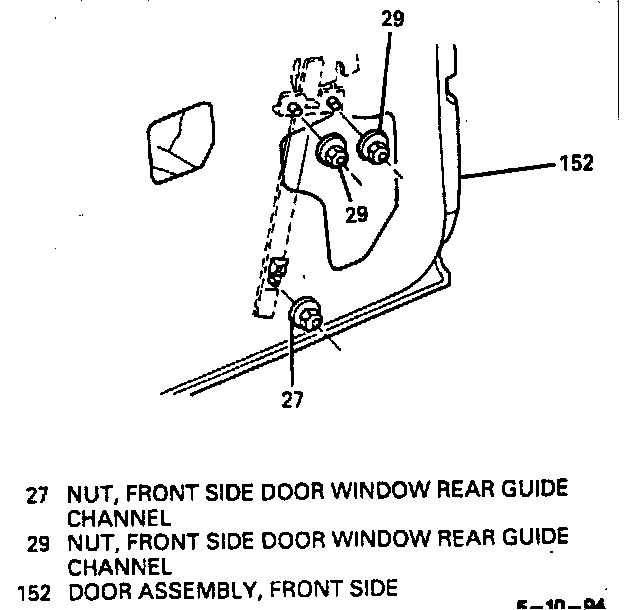

Removing Front Side Door Window Rear Guide Channel Nuts (Typical):

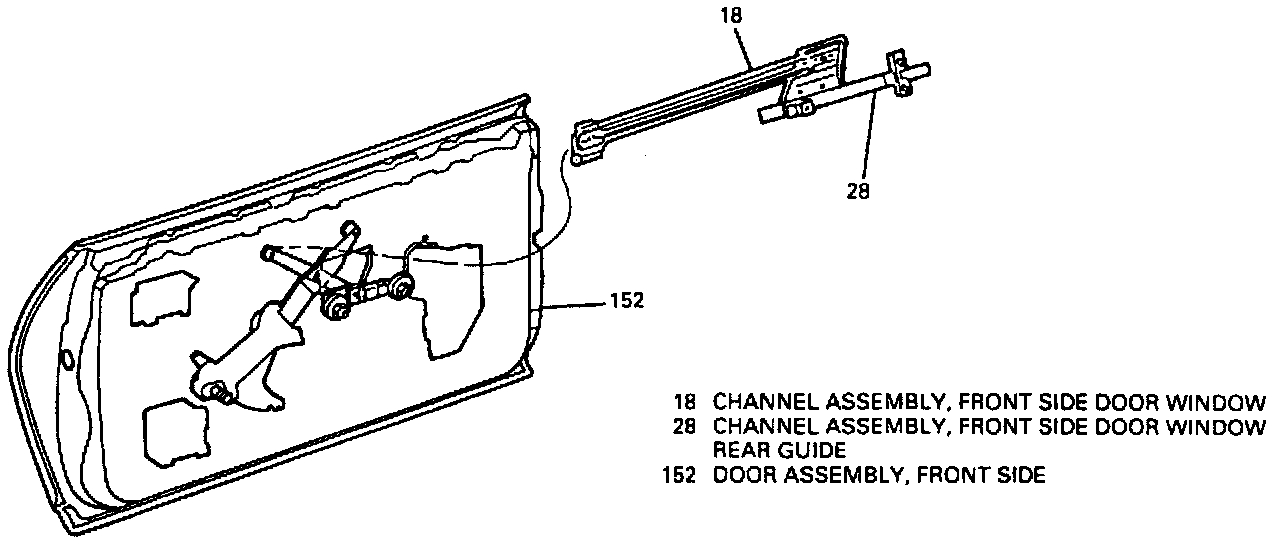

Removing Front Side Door Window Channel Assembly And Front Side Door Window Rear Guide Channel Assembly (Typical):







REMOVE OR DISCONNECT
1. Front side door window.
2. Nuts (27 and 29).
3. Channel assembly (18) with rear guide channel assembly (28) attached from regulator rollers.
4. Channel assembly (18) through access hole.
5. Rear guide channel assembly (28) from channel roller.

INSTALL OR CONNECT
1. Rear guide channel assembly (28) to channel roller.
2. Channel assembly (18) with rear guide channel assembly (28) through access hole, allowing rear guide channel assembly (28) to drop.
3. Channel assembly (18) to regulator rollers.
^ Insert front of channel assembly (18) onto front regulator roller.
^ Push forward until rear edge of channel assembly (18) lines up with rear roller.
^ Insert rear roller onto channel assembly (18) by pushing rearward.
4. Align studs on rear guide channel assembly (28) to slots in door inner panel.
5. Tighten nuts (27) to 10 N.m (89 lb in).
6. Tighten nuts (29) to 27 N.m (20 lb. ft.).
6. Front side door window.
