Front Side Door Locking Rod Knob

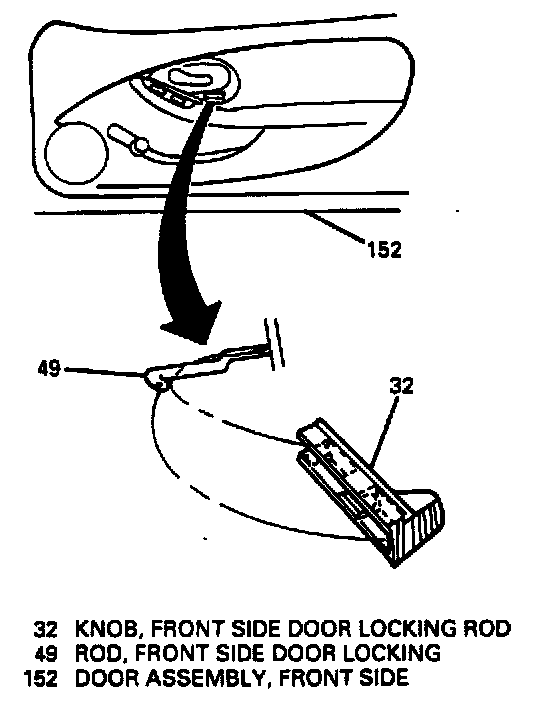

Installing Front Side Door Locking Rod Knob (Typical):






REMOVE OR DISCONNECT
1. Knob (32).
^ Slide knob (32) forward.
^ Insert a small flat-bladed tool behind end of knob (32) and pry it away from locking rod (49).

INSTALL OR CONNECT
1. Knob (32).
^ Position knob (32) over locking rod (49) and insert end of knob (32) through hole in handle bezel.
^ Slide knob (32) rearward over locking rod (49) until end of locking rod (49) fits into depression in lock knob (32).
^ Snap knob (32) over locking rod (49).
