Front Side Door Window Regulator Handle Assembly

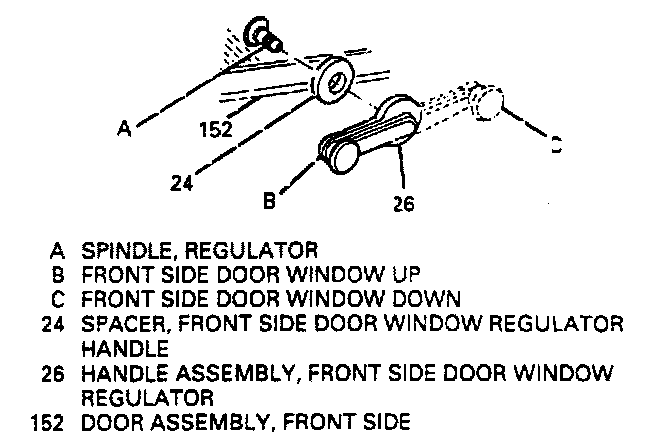

Front Side Door Window Regulator Handle Assembly (Typical):





REMOVE OR DISCONNECT
TOOL REQUIRED:
J-9886-01 Door Handle Clip Remover.

1. Handle assembly (26) by pushing J-9886-01 between handle assembly (26) and spacer (24) to release clip.
2. Spacer (24) from spindle.

INSTALL OR CONNECT
1. Spacer (24) to spindle.

NOTICE: Strike handle assembly with mallet at hub when installing to avoid damage.

2. Handle assembly (26).
^ Position handle assembly (26) to spindle pointing forward if window assembly is up, or rearward if window assembly is down.
^ Tap handle assembly (26) with mallet until snap ring in handle assembly (26) engages groove in spindle.
