Body Mount Assembly - Revised
Group Ref.: 10 BodyBulletin: 432001
Date: August, 1994
SUBJECT:
BODY MOUNT ASSEMBLY DESIGN CHANGE
MODEL:
1994 CHEVROLET CAPRICE WITH RPOs FE1, FE2, FE3, FE4 or F41
This bulletin is being issued to clarify an interim body mount assembly design change affecting certain mount locations with RPO FE1, FE2, FE3, FE4 or F41 suspension levels and assembled after VIN breakpoint RR 138000.

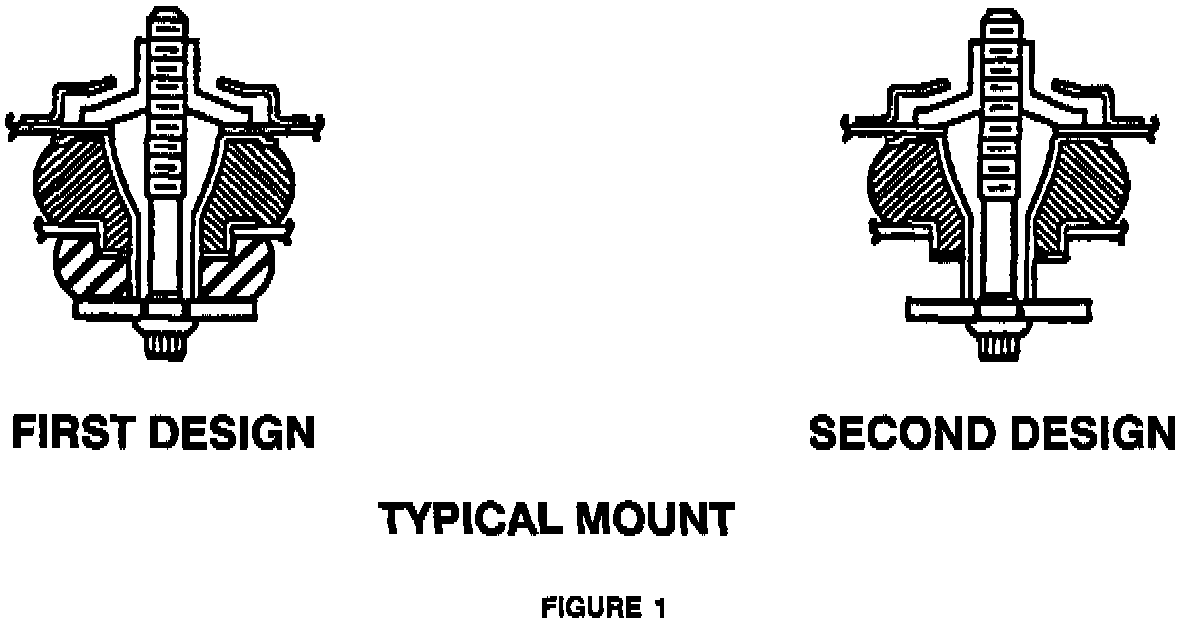

The design change to the body mount assembly eliminates the body bolt lower cushion assembly and replaces it with a flat metallic retainer/washer at the 1, 2 and 3 mount positions.
