Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1994
>>
Caprice V8-350 5.7L
>>
Repair and Diagnosis
>>
Maintenance
>>
Alignment
>>
Specifications
>>
Vehicle Ride (Trim) Height Specifications
Vehicle Ride (Trim) Height Specifications

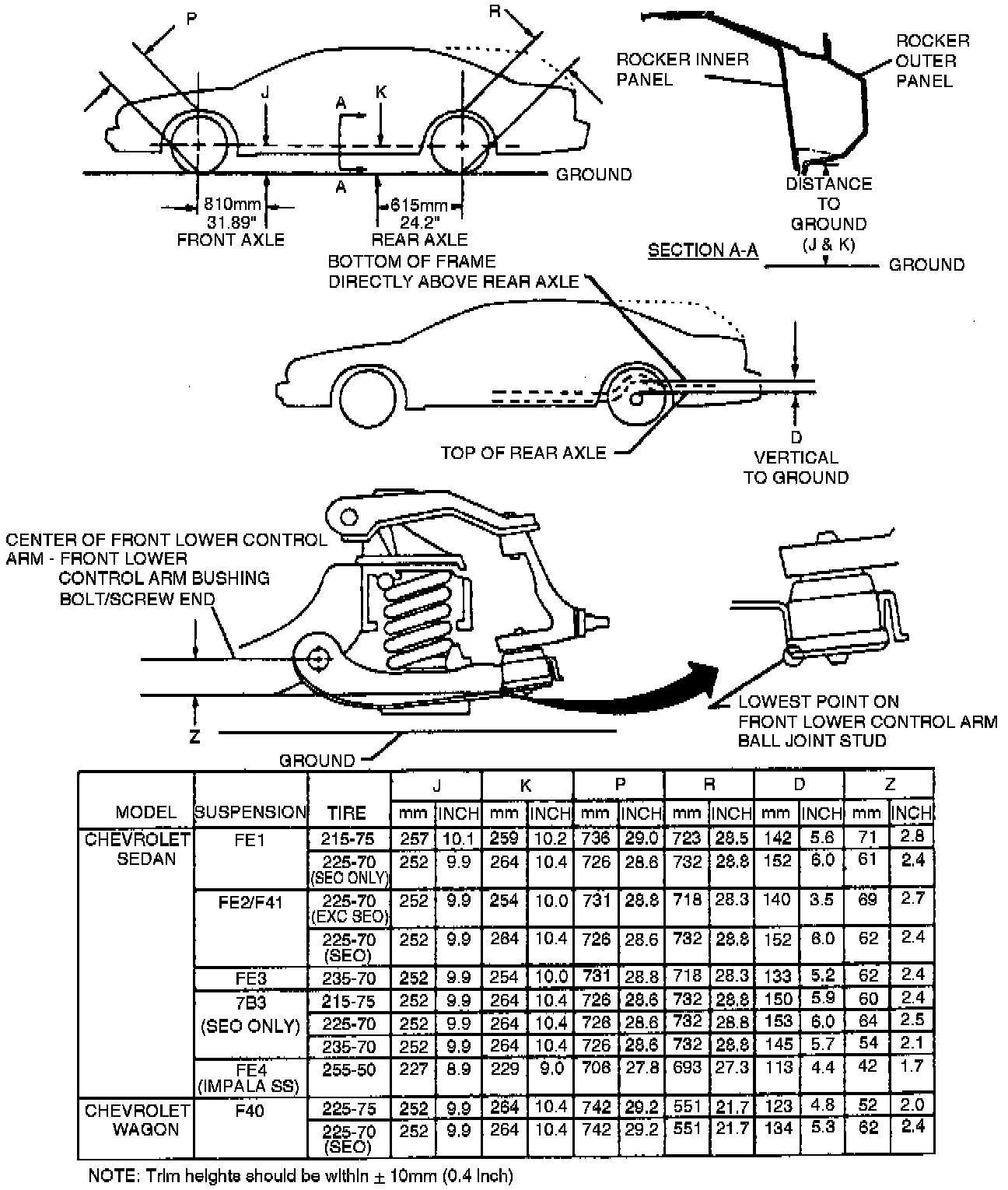

Fig. 4 Vehicle Ride Height Measurement Locations & Specifications:
