Fastener Tightening Specifications - Sequence

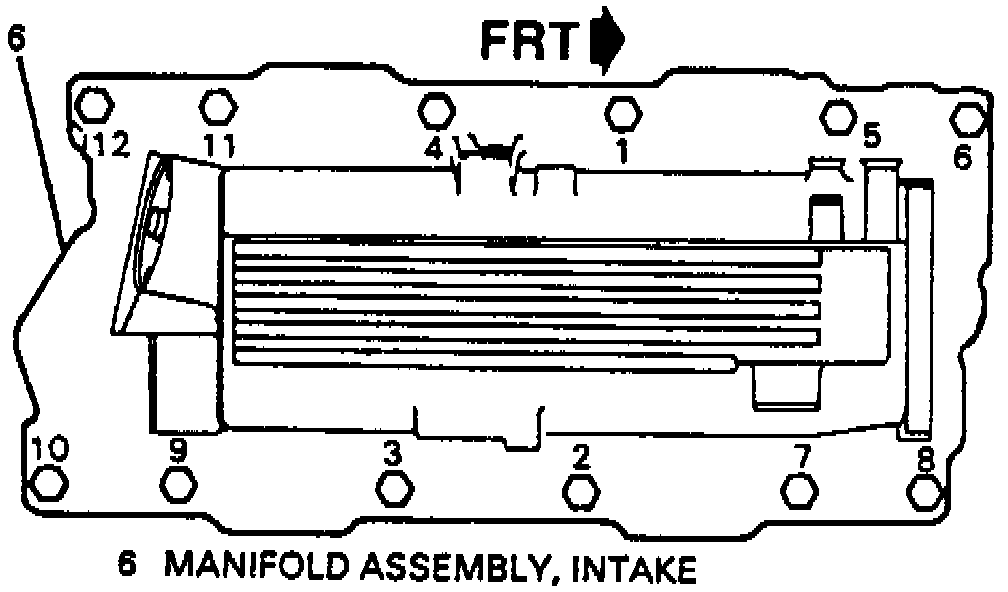

Intake Manifold Bolt Tightening Sequence:

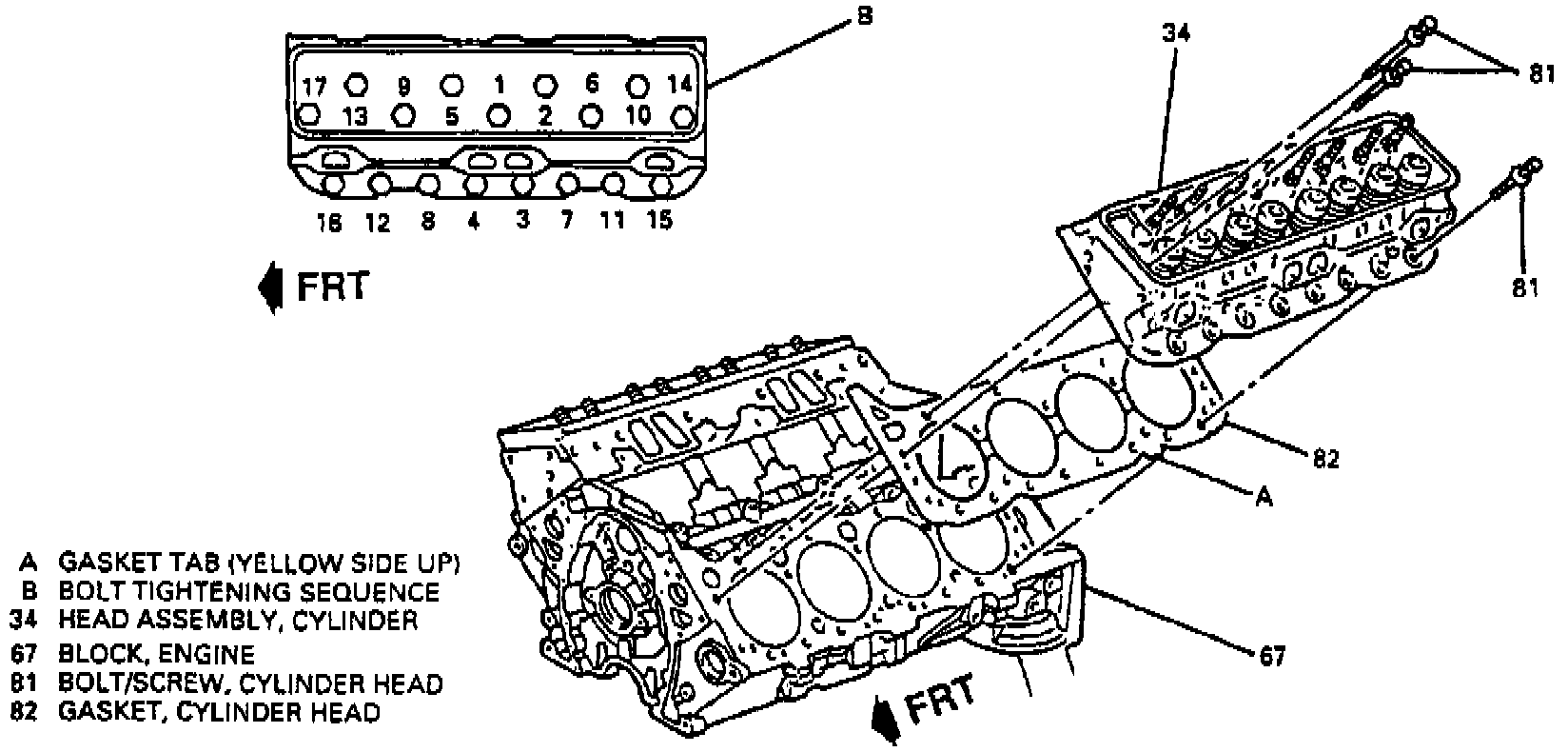

Cylinder Head Bolt Tightening Sequence:
