Service Procedure

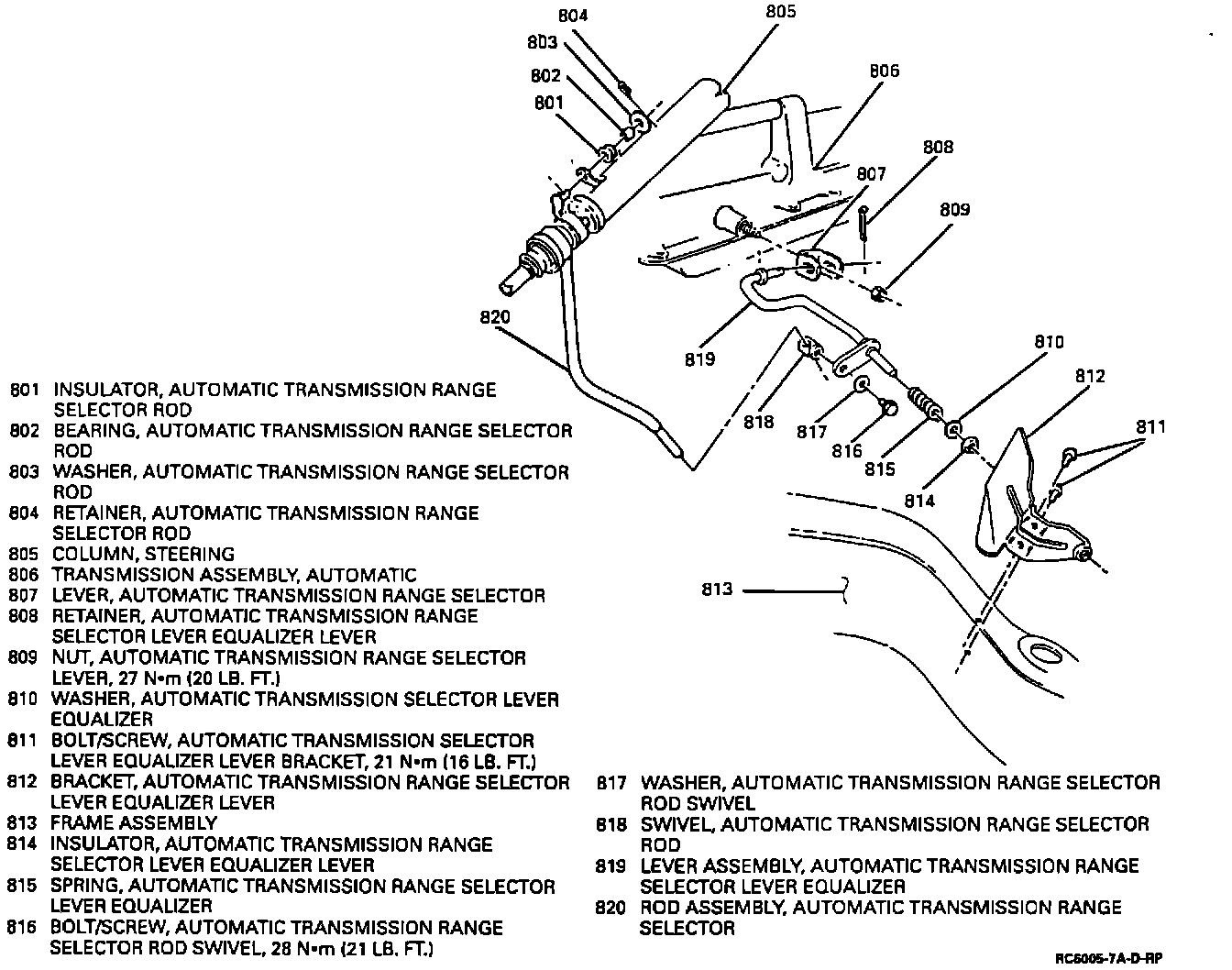

SERVICE PROCEDURE - Figure may be useful in performing the procedure below.

1. Inspect transmission fluid for signs of excessive heat (burnt smell and/or color changed to brown). If transmission fluid is burnt, replace complete transmission before adjusting linkage following instructions in 1994 Chevrolet Caprice Service Manual. If fluid is not burnt or discolored, use steps 2 through 7 to properly adjust linkage.

2. Place steering column shift lever in "Neutral" position.

3. Loosen bolt which clamps shift rod to shift lever at side of transmission under vehicle.

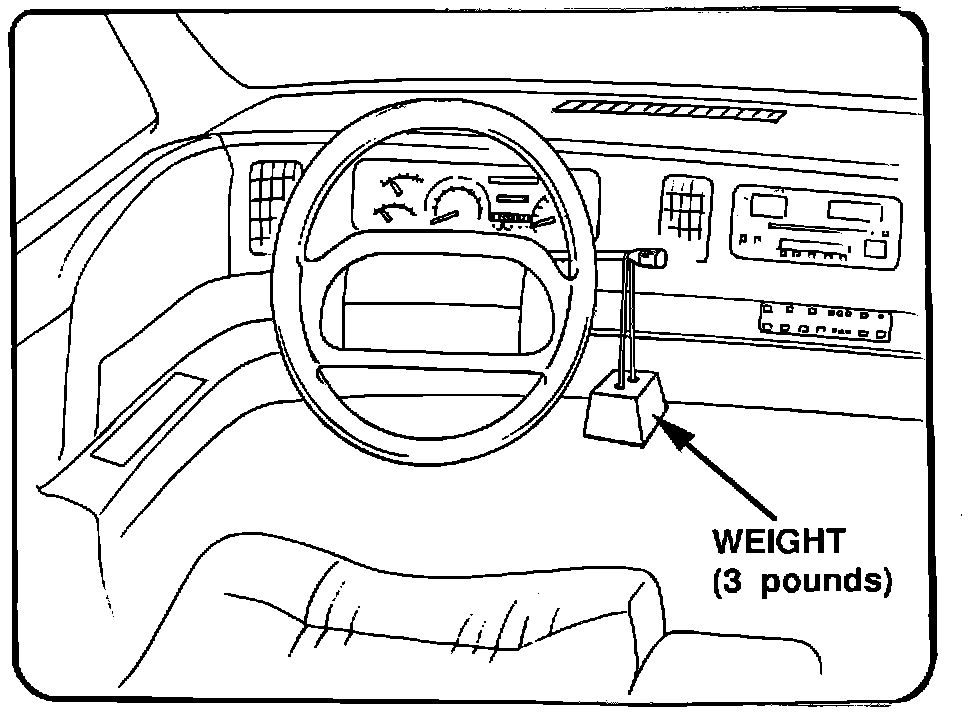

4. Hang or attach a 3 pound weight on shift lever at steering column to bias linkage toward the "0D" (overdrive) position (see figure).

Notice:
Kent-Moore tool number J8092, driver handle, weighs approximately 3 pounds, and may be a possible choice.

5. Verify transmission is still in "Neutral" position.

6. Re-tighten bolt to 28 N-m (21 lb.ft.).

7. Remove weight and verify shift linkage and steering column range selector for proper operation and selection.

8. Install Campaign Identification Label.

NOTICE:
This new linkage adjustment procedure is to be used for all 1994 4L60E transmissions anytime the transmission is removed, replaced or reinstalled.
