Information Bus: Testing and Inspection

Serial Data Line Diagnosis (Part 1 Of 2):

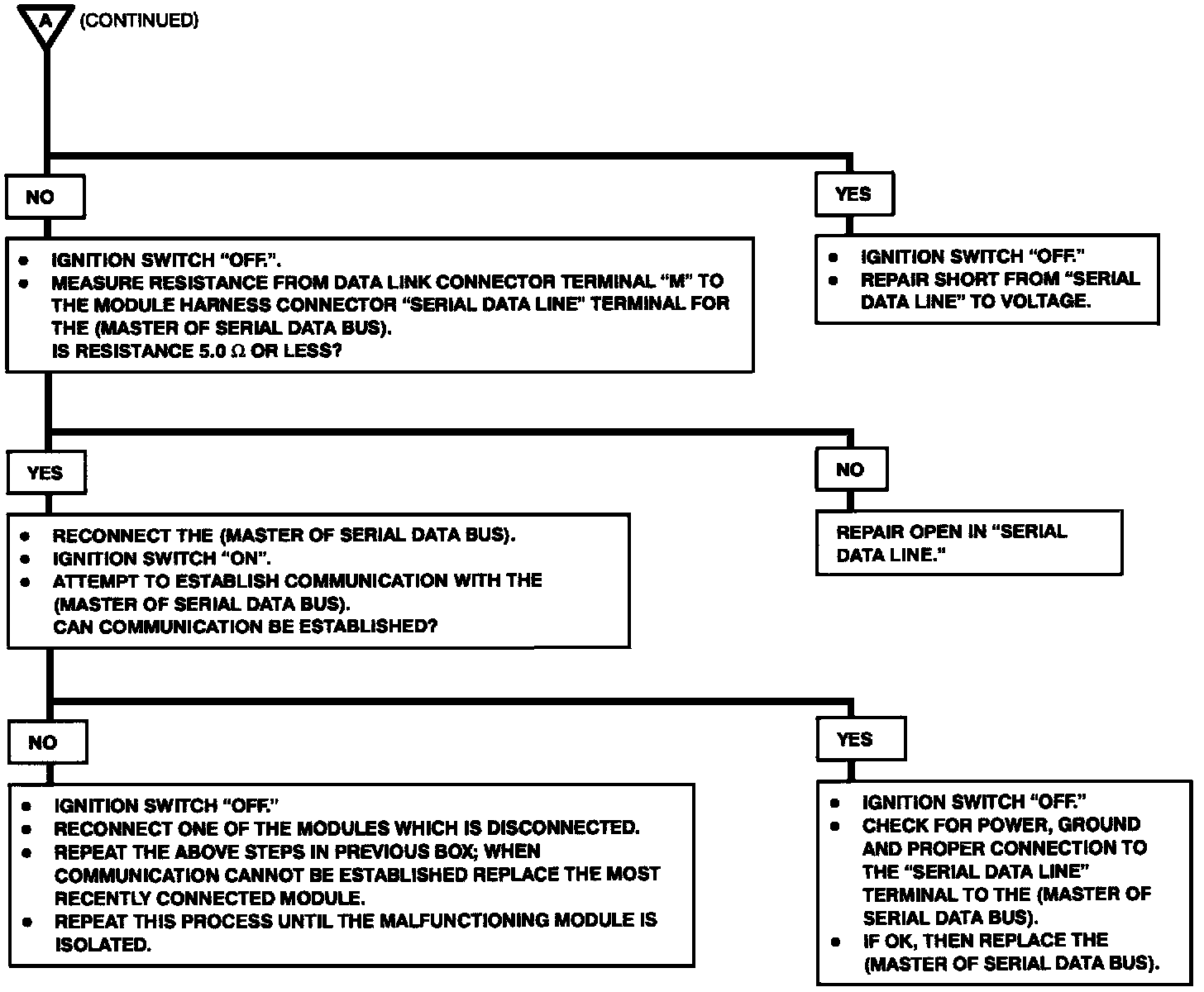

Serial Data Line Diagnosis (Part 2 Of 2):
