PKE Receiver Diagnosis

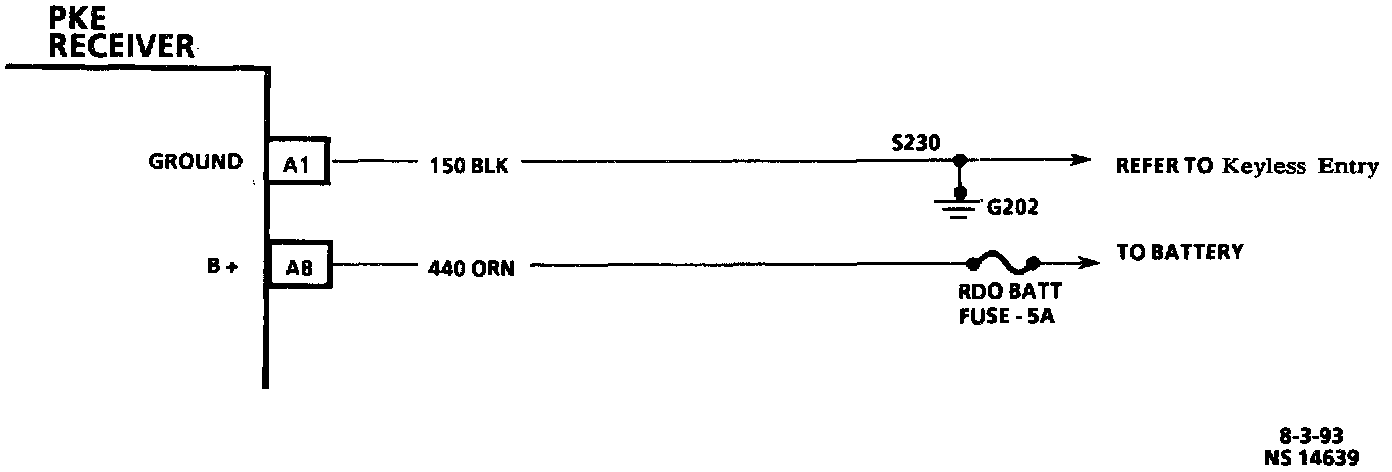

CIRCUIT DESCRIPTION

The solid state portion of the PKE receiver is supplied B+ on CKT 440 at terminal "A8". Ground is supplied to the PKE receiver on CKT 150 at terminal "A1".

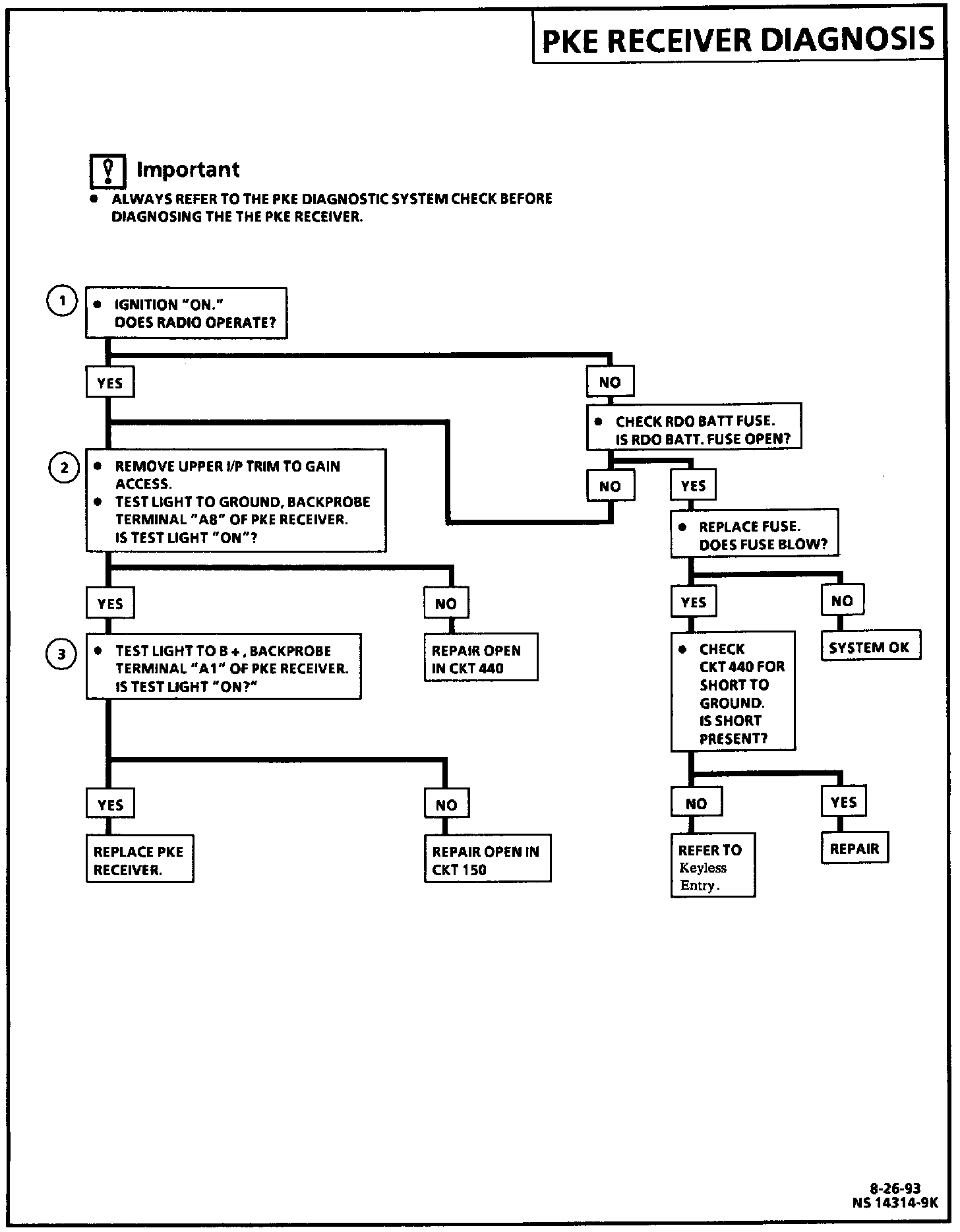

CHART TEST DESCRIPTION

Number(s) below refer to circled number(s) on the diagnostic chart.

Important
^ Always refer to the PKE diagnostic system check chart before referring to PKE receiver diagnosis.

1. Determines if the RDO BATT fuse is open.

2. Determines if B+ is supplied at terminal "A8" of the PKE receiver.

3. Determines if ground is present at terminal "A1" of the PKE receiver.
