Home >> Chevrolet >> 1994 >> Corvette V8-350 5.7L DOHC VIN J MFI >> Repair and Diagnosis >> Diagrams >> Components >> Miscellaneous Components >> Cigar Lighter >> Base Power Seats

Base Power Seats

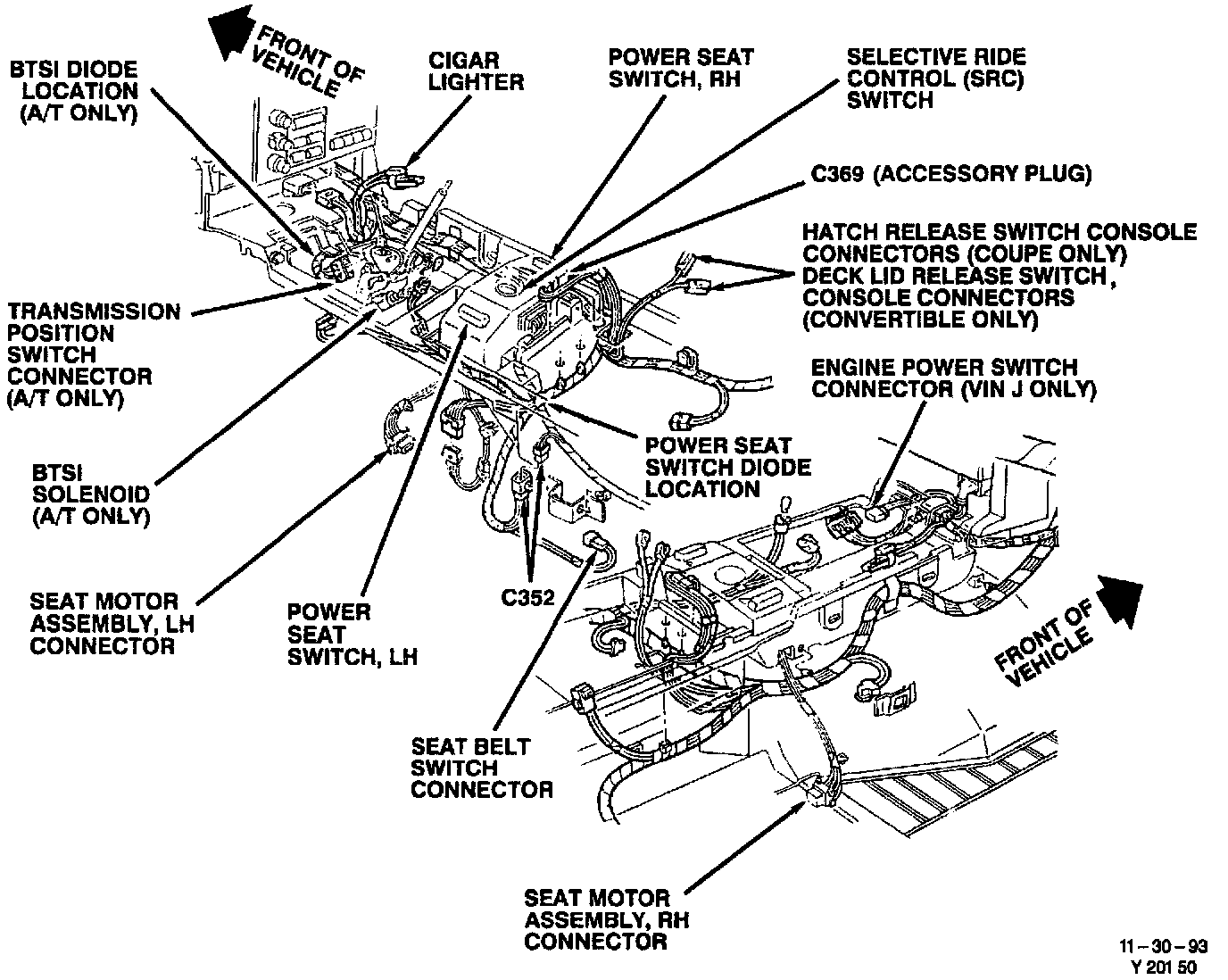

Center Console (Base Power Seats):
