Home
>>
Chevrolet
>>
1994
>>
Corvette V8-350 5.7L DOHC VIN J MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Relays
>>
Delayed Accessory Bus (Dab) Relay

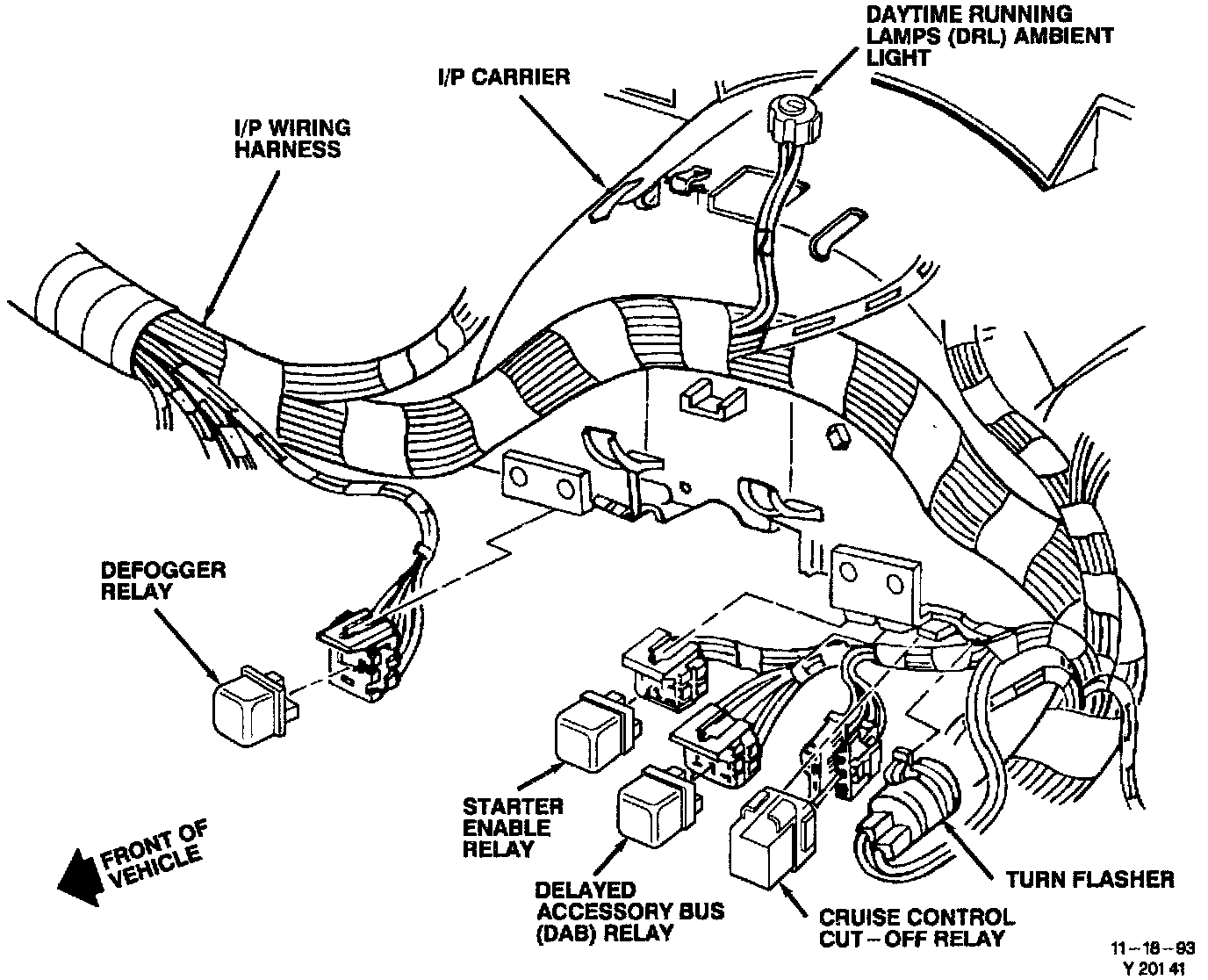

Delayed Accessory Bus (Dab) Relay
Behind LH I/P Above Steering Column:
