Corvette V8-350 5.7L DOHC VIN J MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antilock Brakes / Traction Control Systems
>>
Electronic Brake Control Module
>>
Pinout Description
Pinout Description

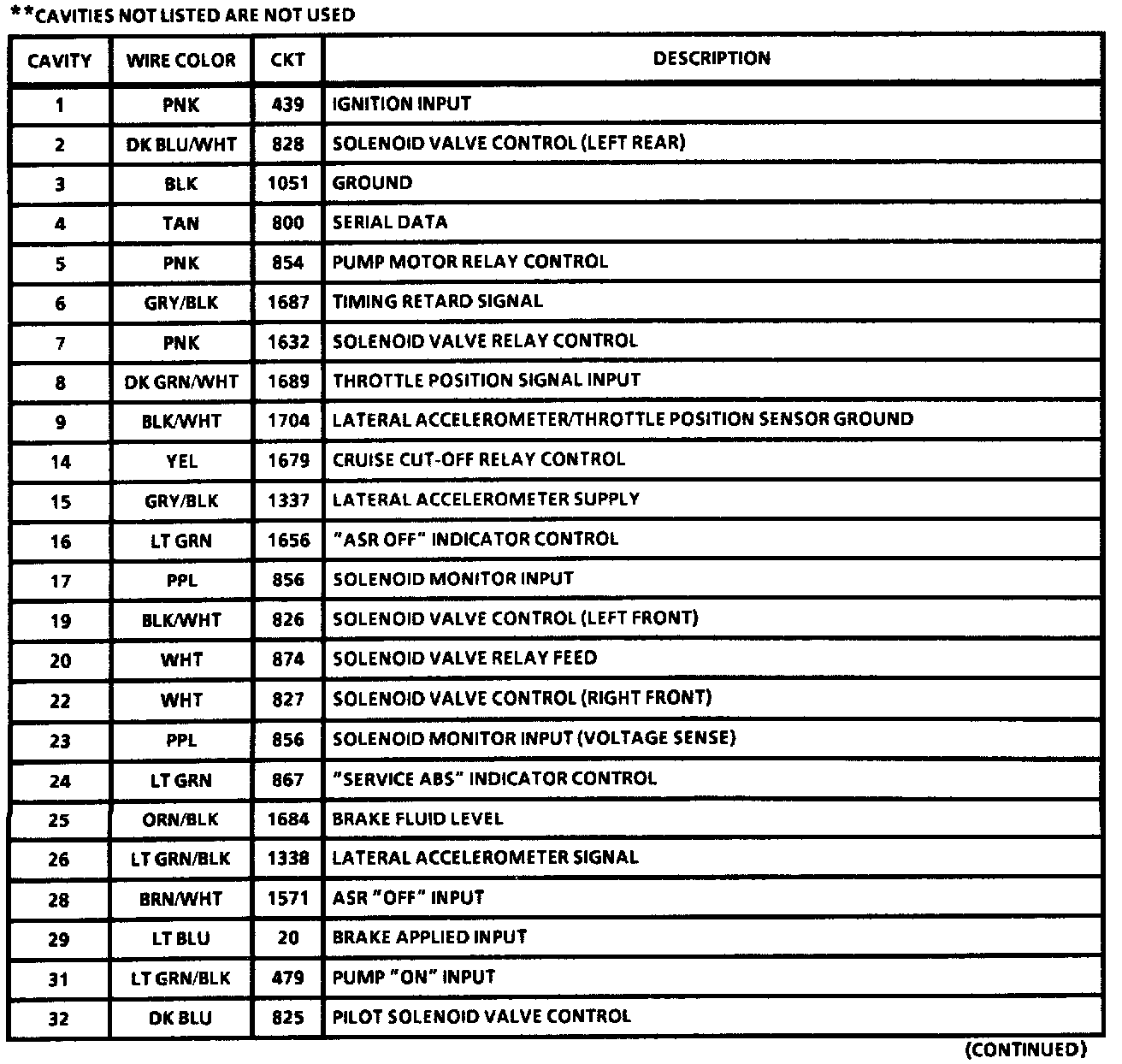

Electronic Brake And Traction Control Module (EBTCM) (Part 1 Of 2):

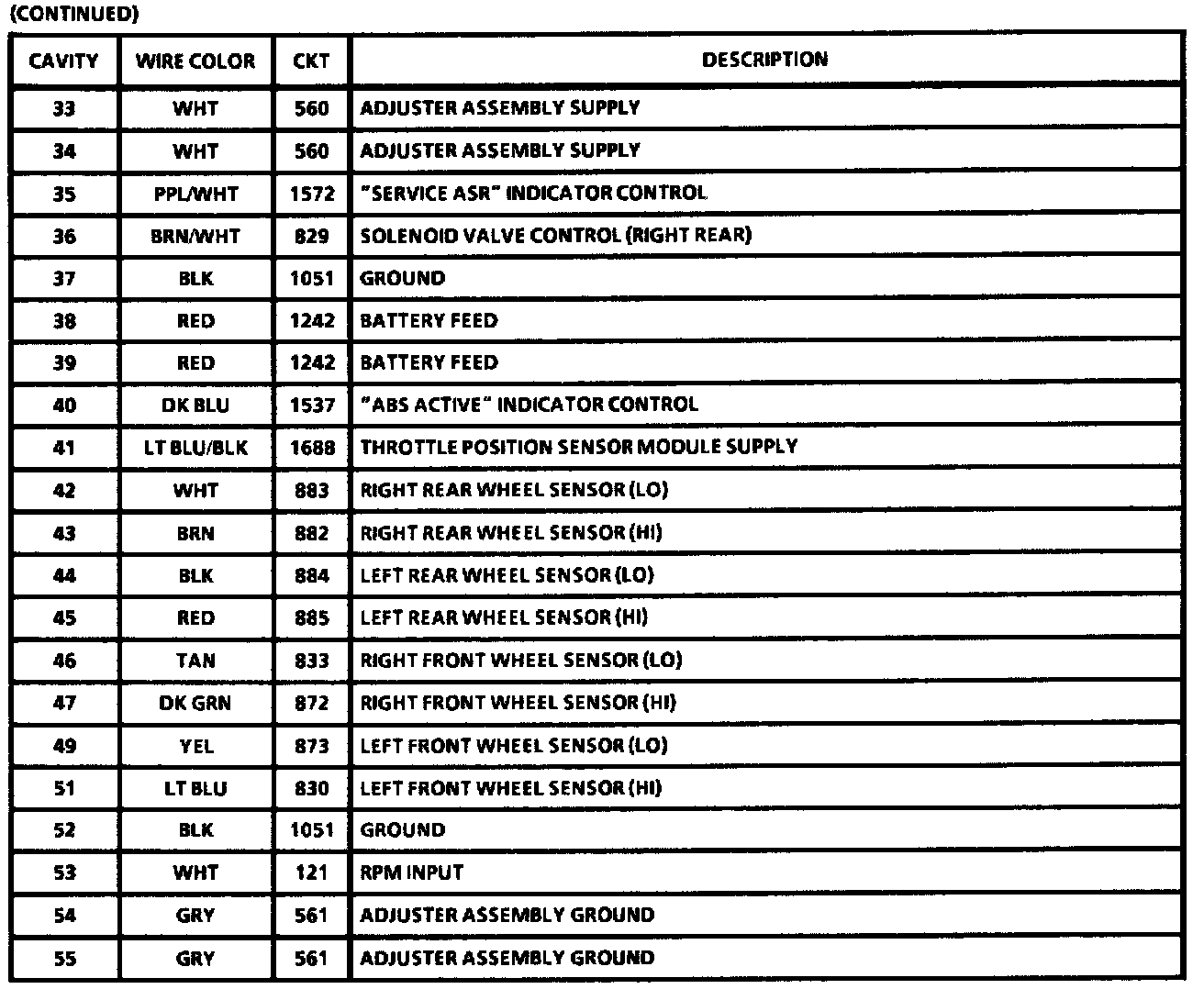

Electronic Brake And Traction Control Module (EBTCM) (Part 2 Of 2):
