Corvette V8-350 5.7L DOHC VIN J MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Suspension Control ( Automatic - Electronic )
>>
Diagnostic Connector, Suspension
>>

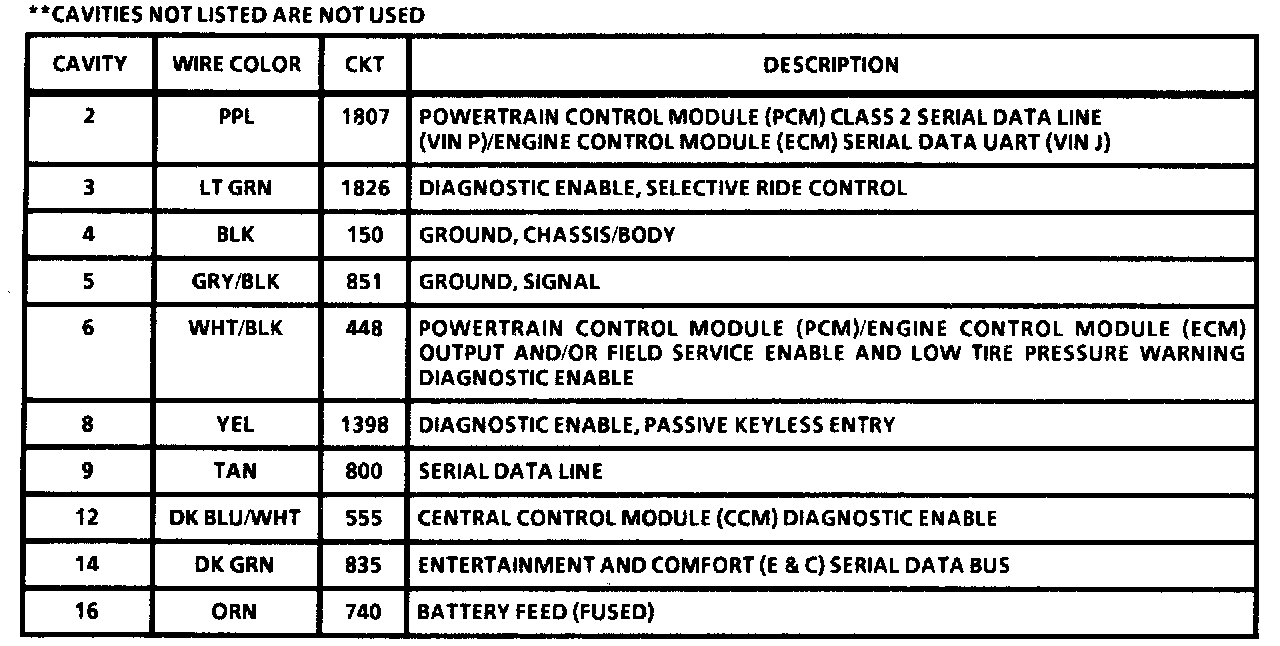

Pinout Description
Pinout Description
Data Link Connector (DLC):
