Home
>>
Chevrolet
>>
1994
>>
Corvette V8-350 5.7L DOHC VIN J MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Keyless Entry
>>
Wiring Diagram
>>
Convertible
Convertible

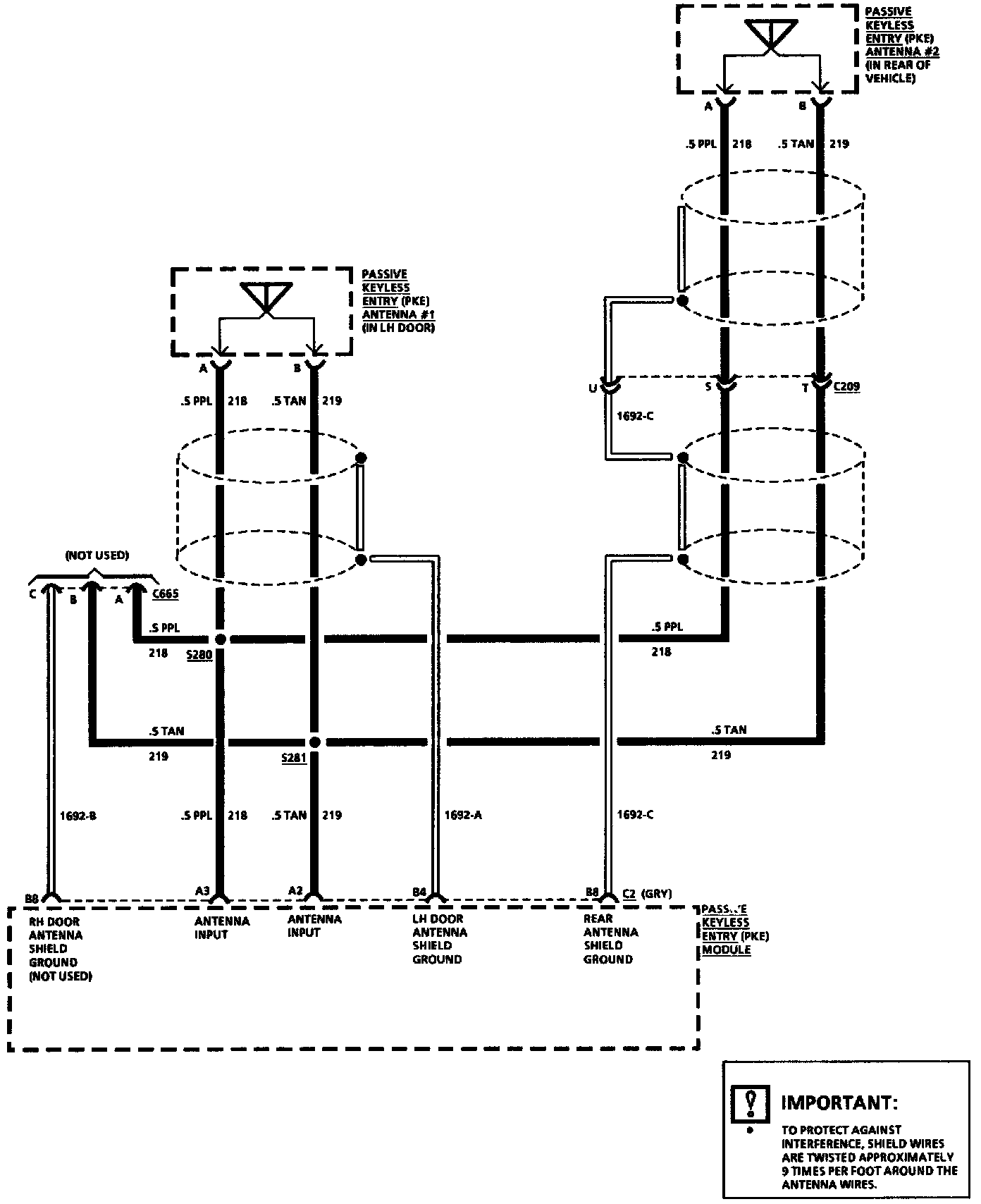

Passive Keyless Entry/Power Door Locks (Part 1 Of 3):

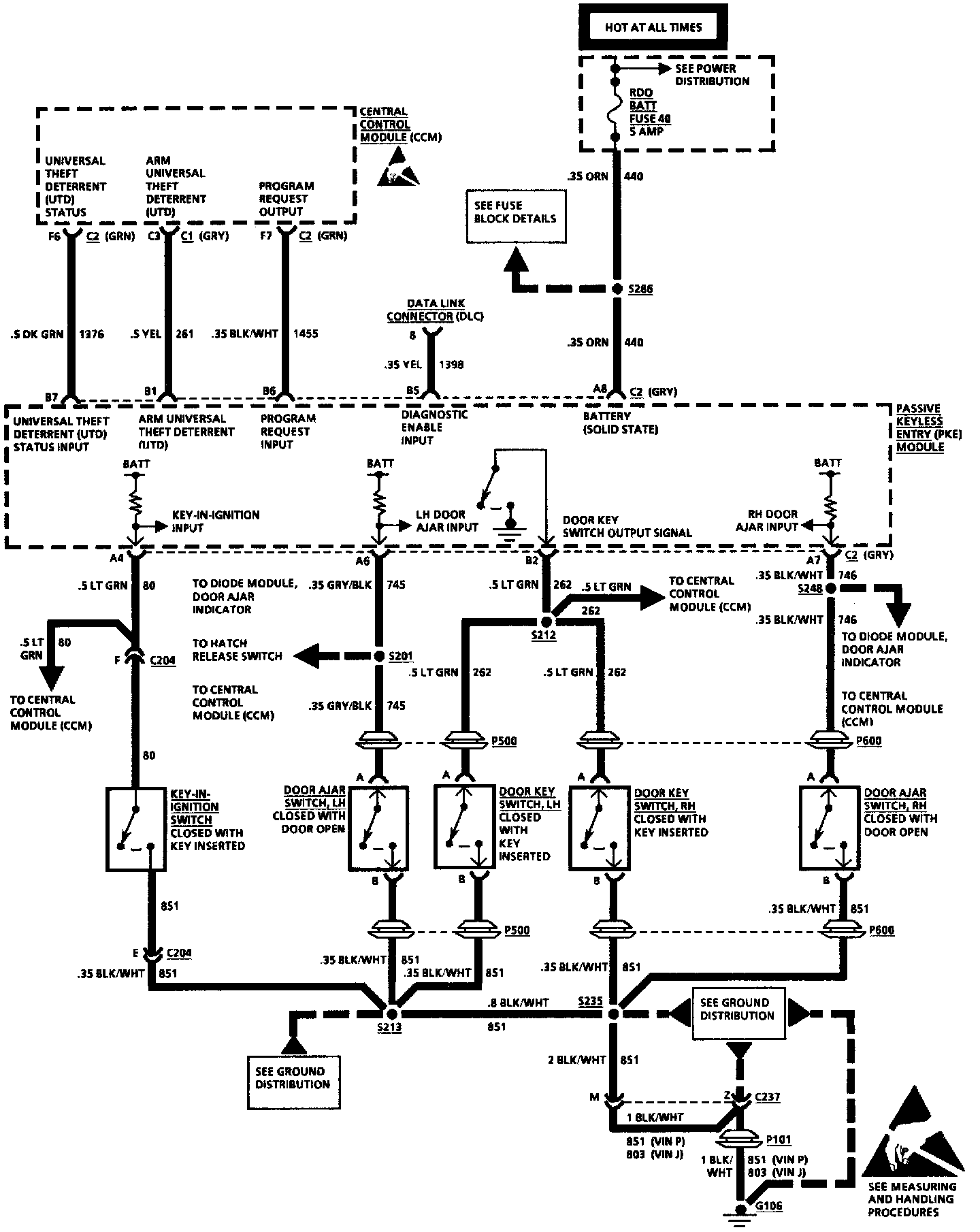

Passive Keyless Entry/Power Door Locks (Part 2 Of 3):

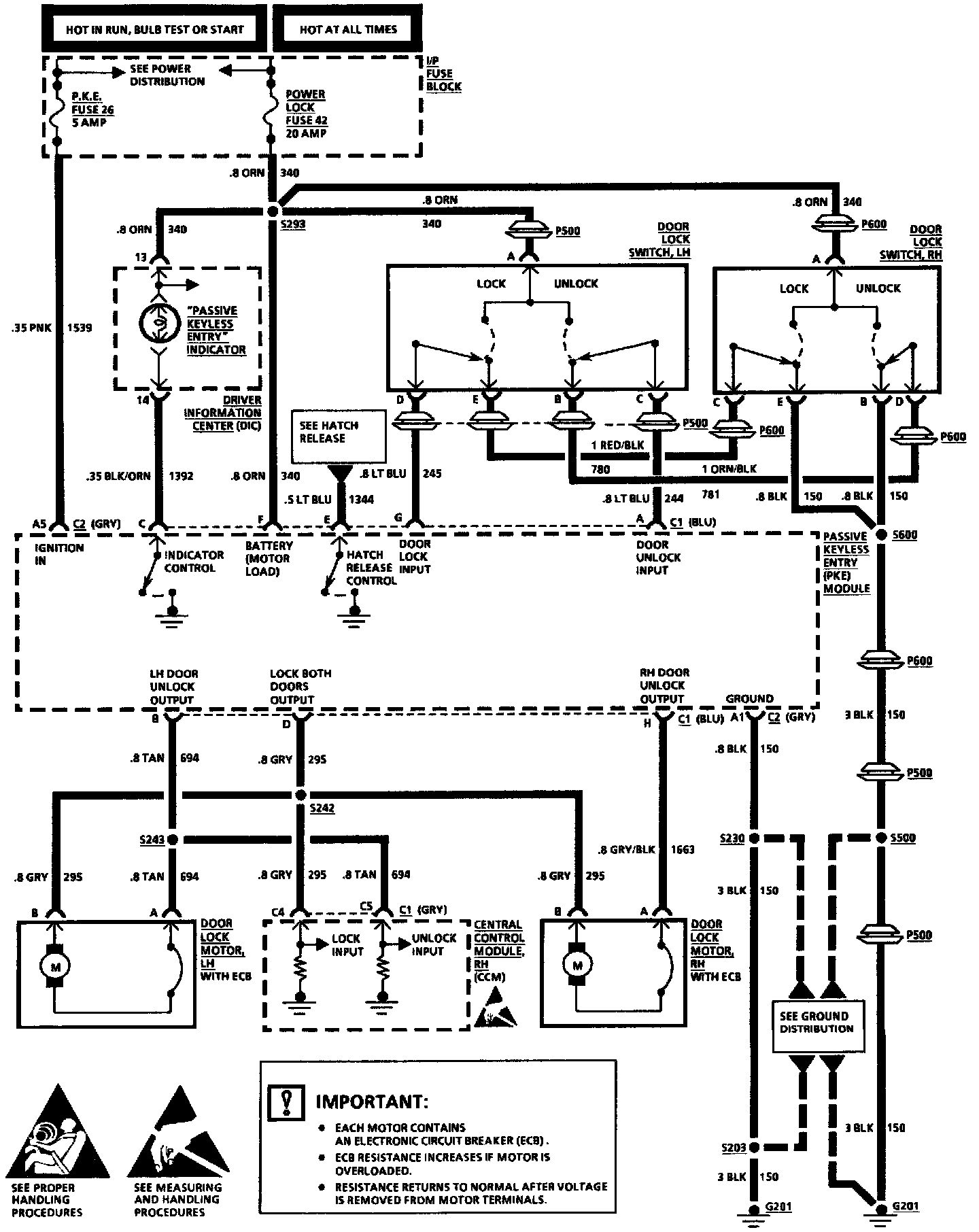

Passive Keyless Entry/Power Door Locks: Coupe (Part 3 Of 3):
