Lumbar Support

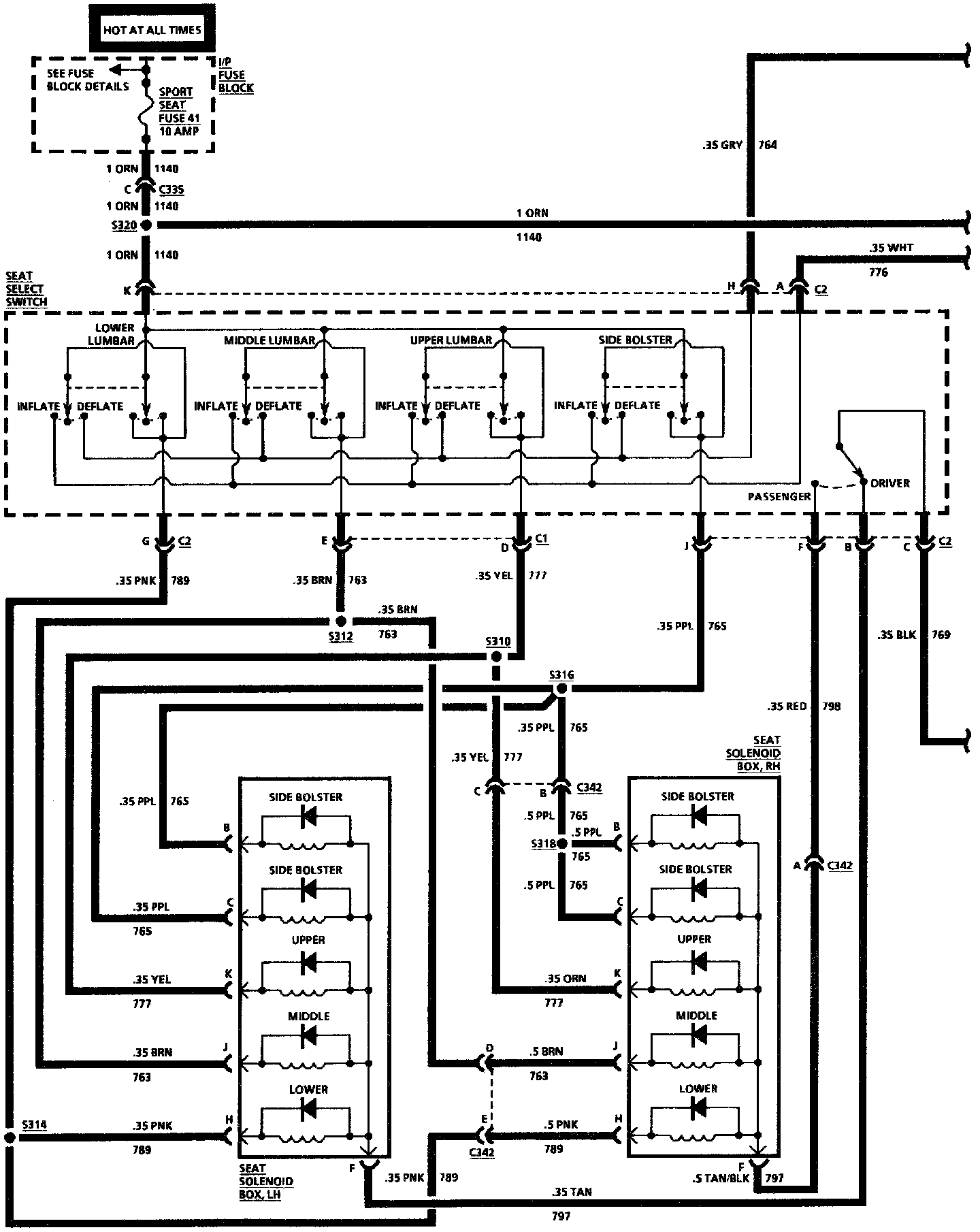

Sport Seats (Lumbar Supports) (Part 1 Of 2):

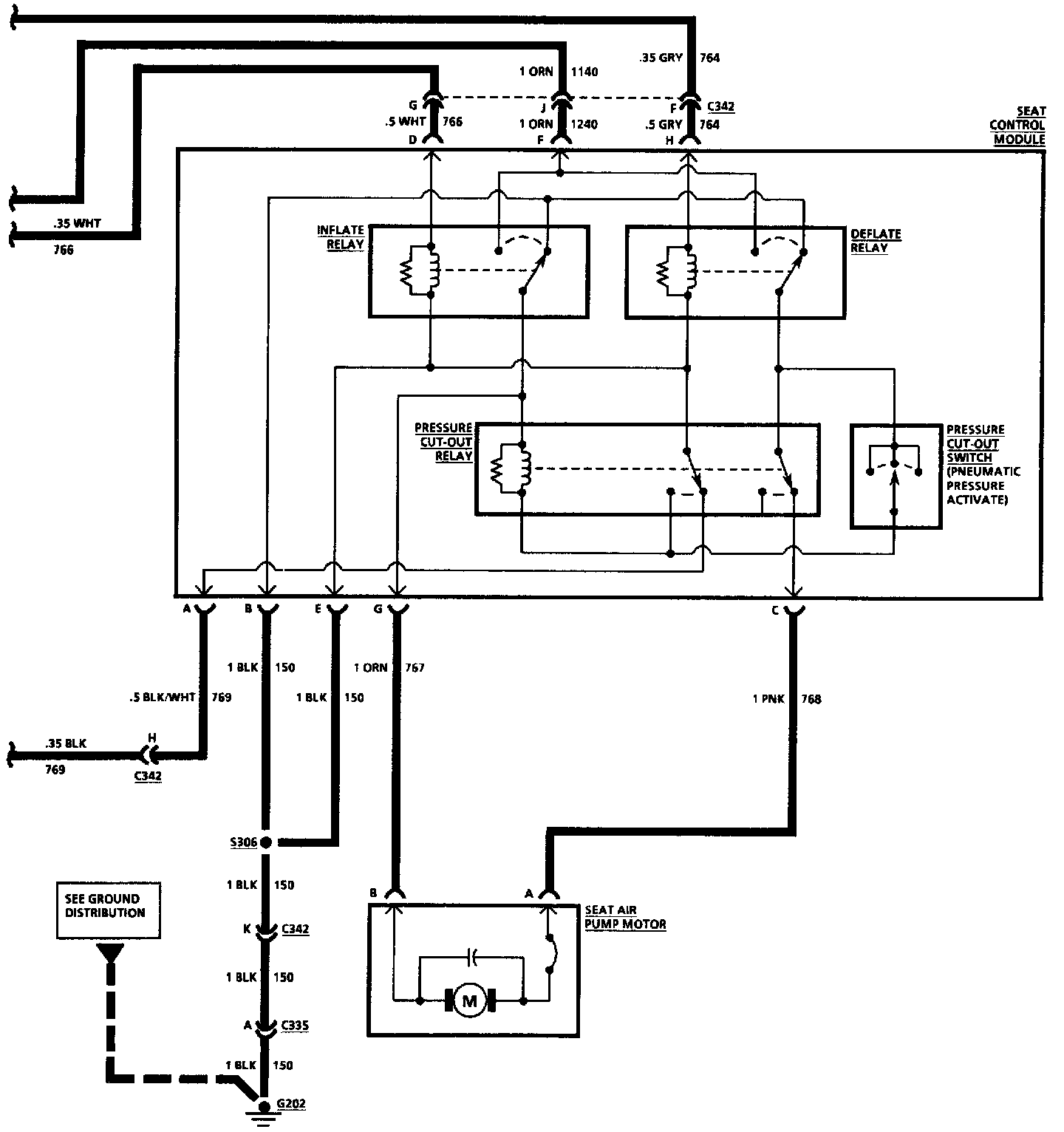

Sport Seats (Lumbar Supports) (Part 2 Of 2):
