Cluster Fuse, Pke Fuse, Fan Fuse, ENG 1 Fuse and Back Up Fuse

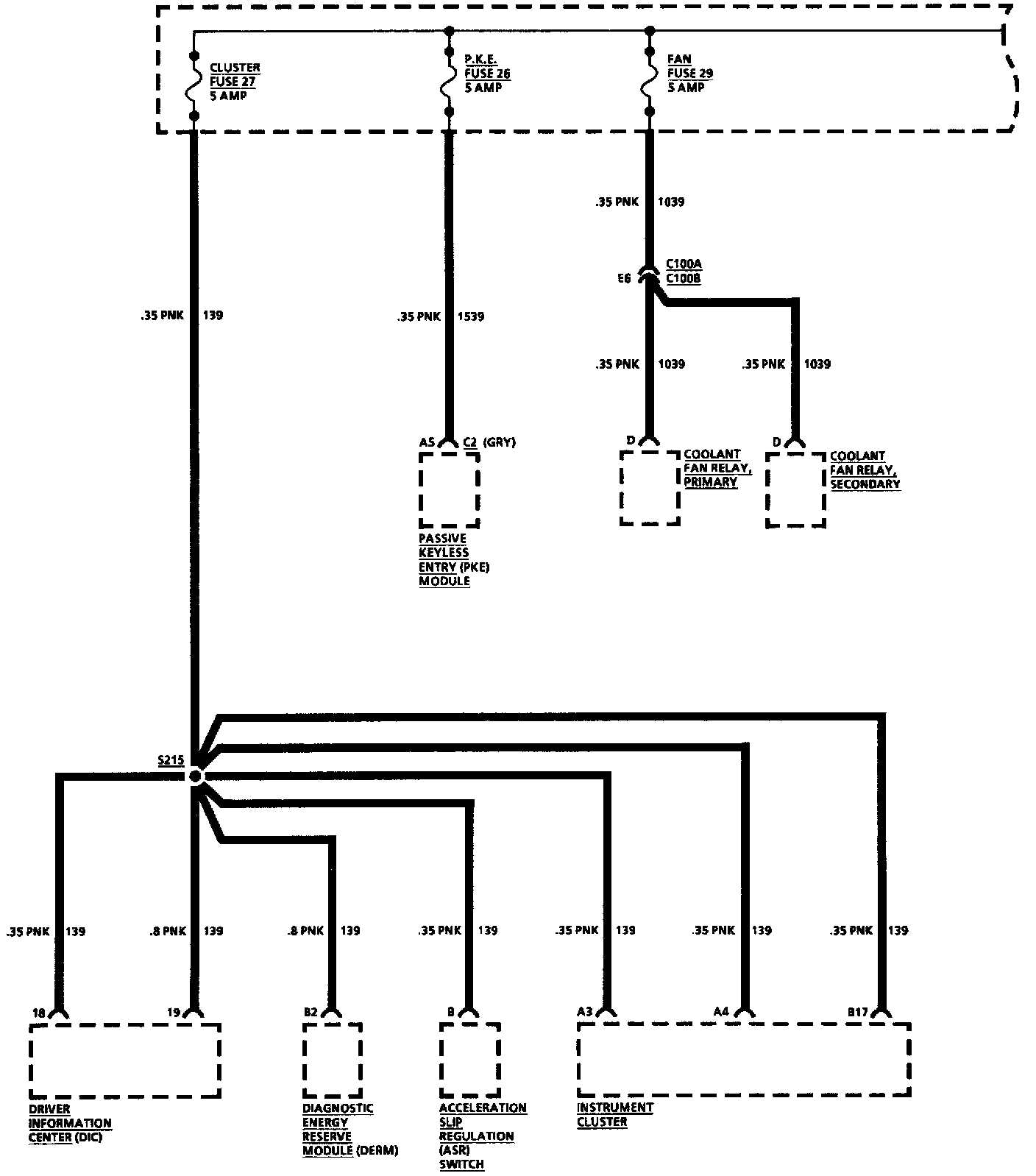

Cluster Fuse, P.K.E. Fuse, Fan Fuse, ENG 1 Fuse & Back Up Fuse (Part 1 Of 2):

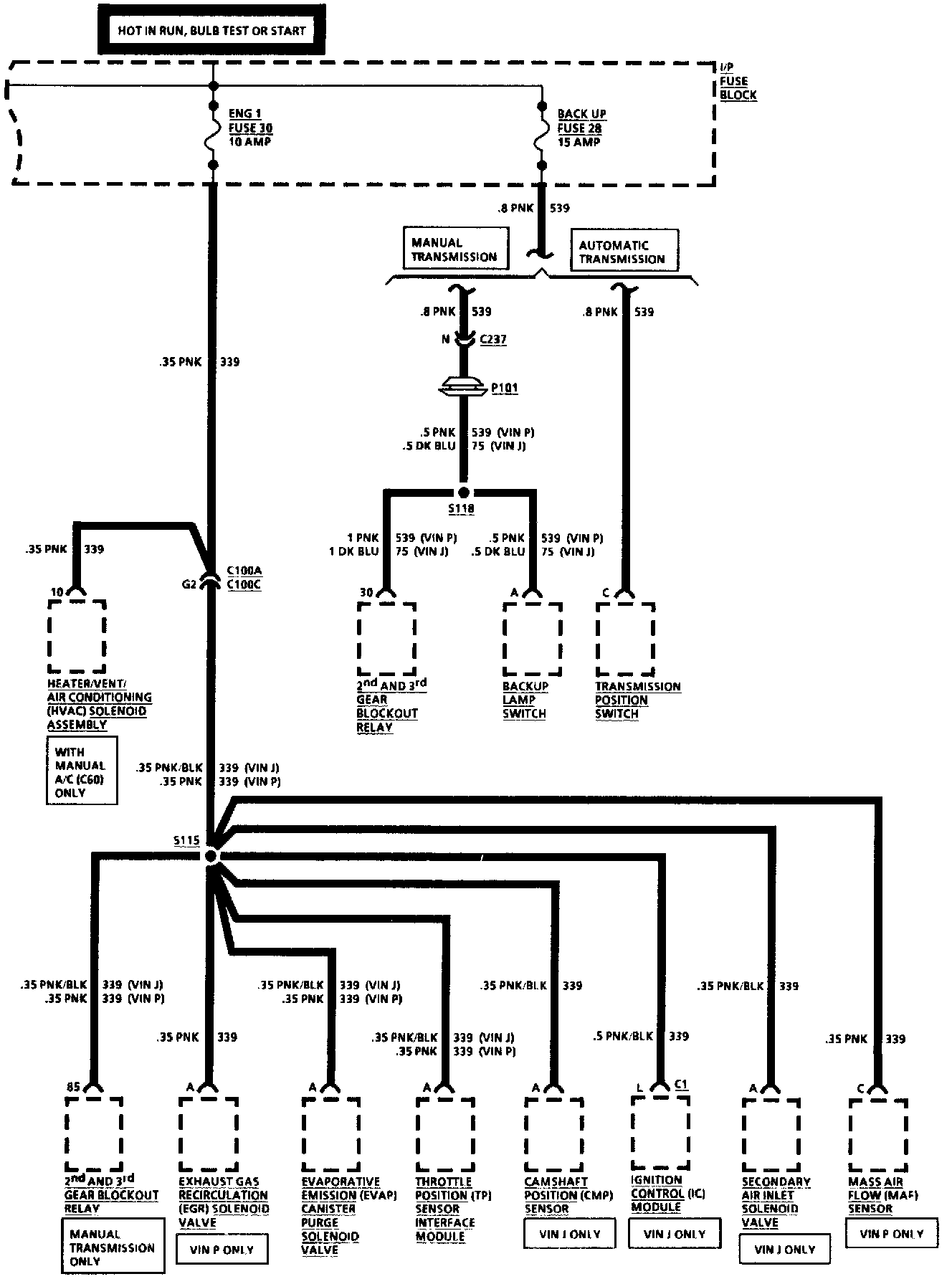

Cluster Fuse, P.K.E. Fuse, Fan Fuse, ENG 1 Fuse & Back Up Fuse (Part 2 Of 2):
