Chart 2 Blower Motor Goes to Hi Speed
Chart 2 Blower Motor Goes to Hi Speed

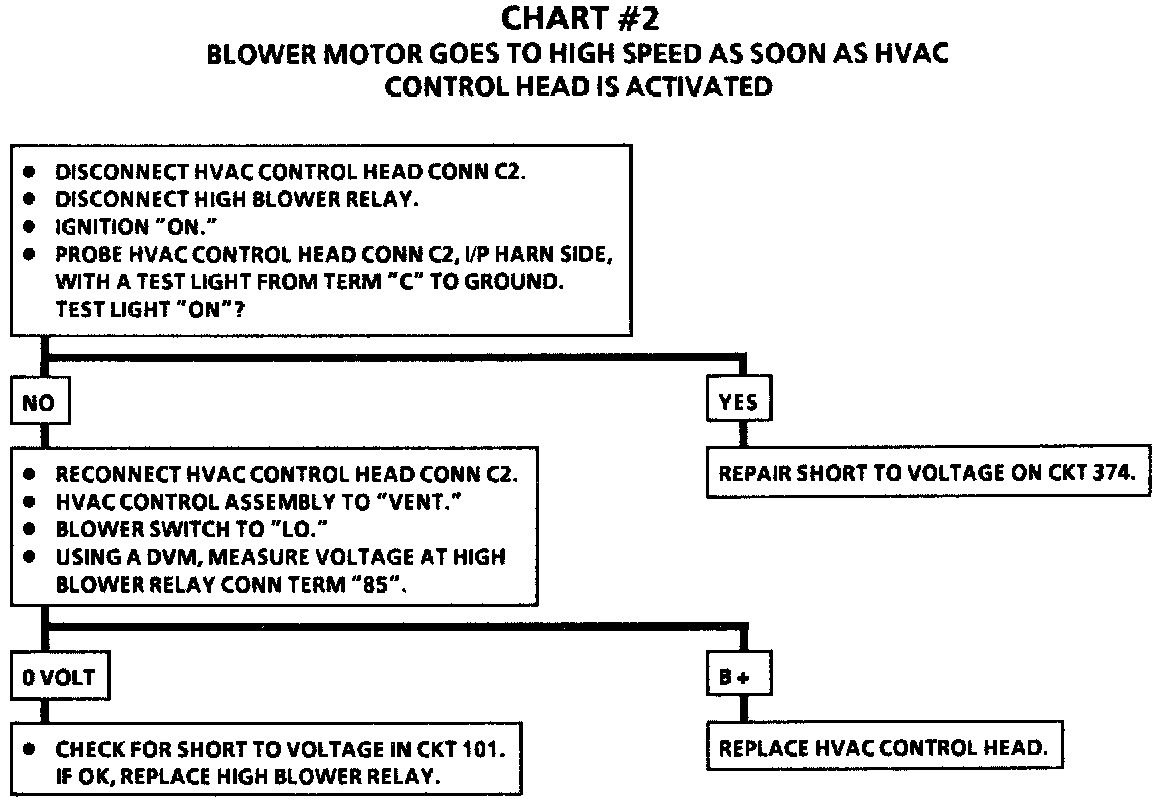

Chart #2 Blower Motor Goes To High Speed As Soon As HVAC Control Head Is Activated:
