Corvette V8-350 5.7L DOHC VIN J MFI
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>
Connector Views
>>
I/P Harness to Engine Harness
>>
Pinout Description
Pinout Description

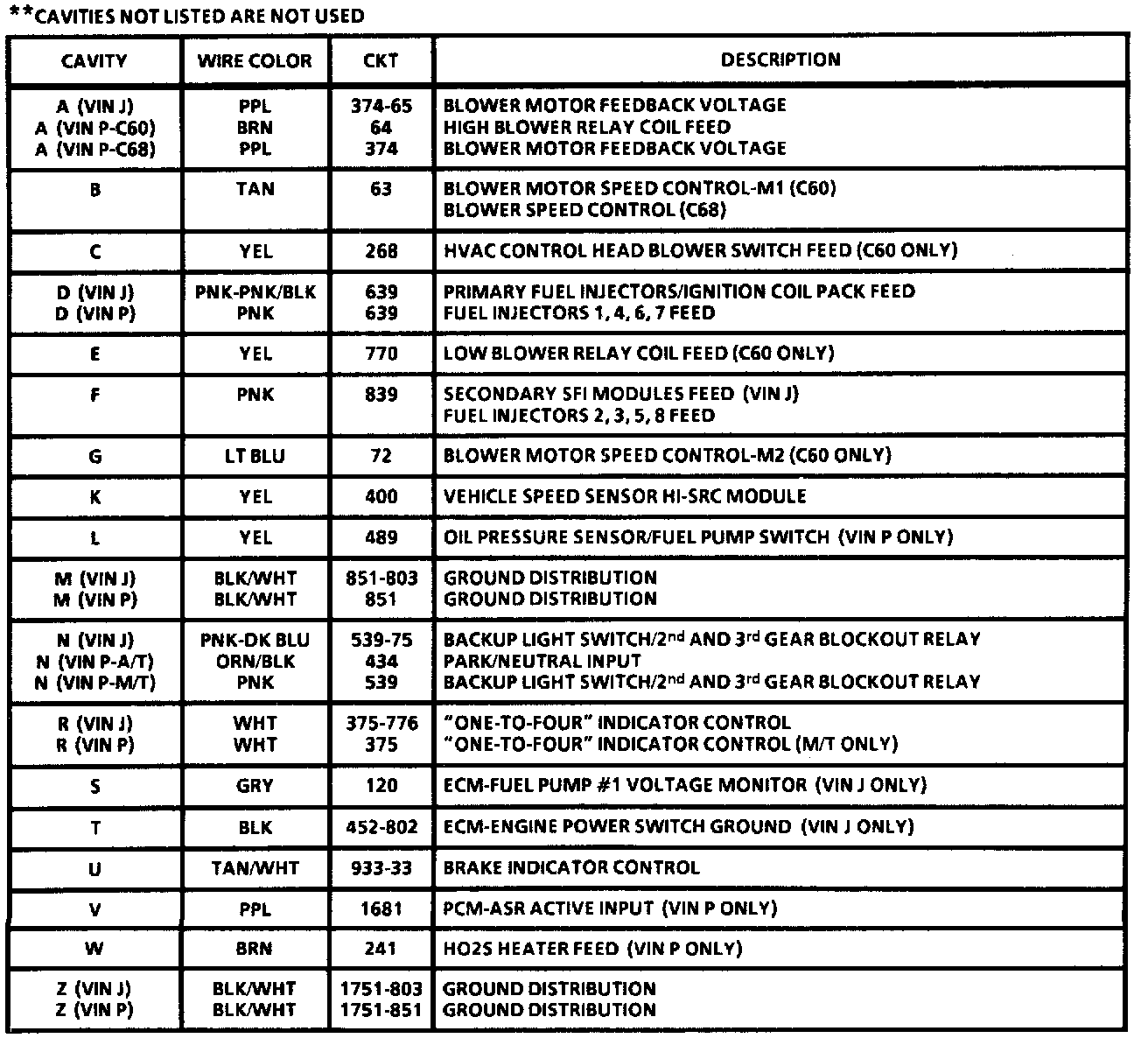

C237: I/P Harness To Engine Harness:
C238: I/P Harness To Engine Harness:
C239: I/P Harness To Engine Harness:
