Corvette V8-350 5.7L DOHC VIN J MFI
>>
Repair and Diagnosis
>>
Locations
>>
Component Locations
>>
Modules
>>
Diagnostic/Energy Reserve Module (DERM)

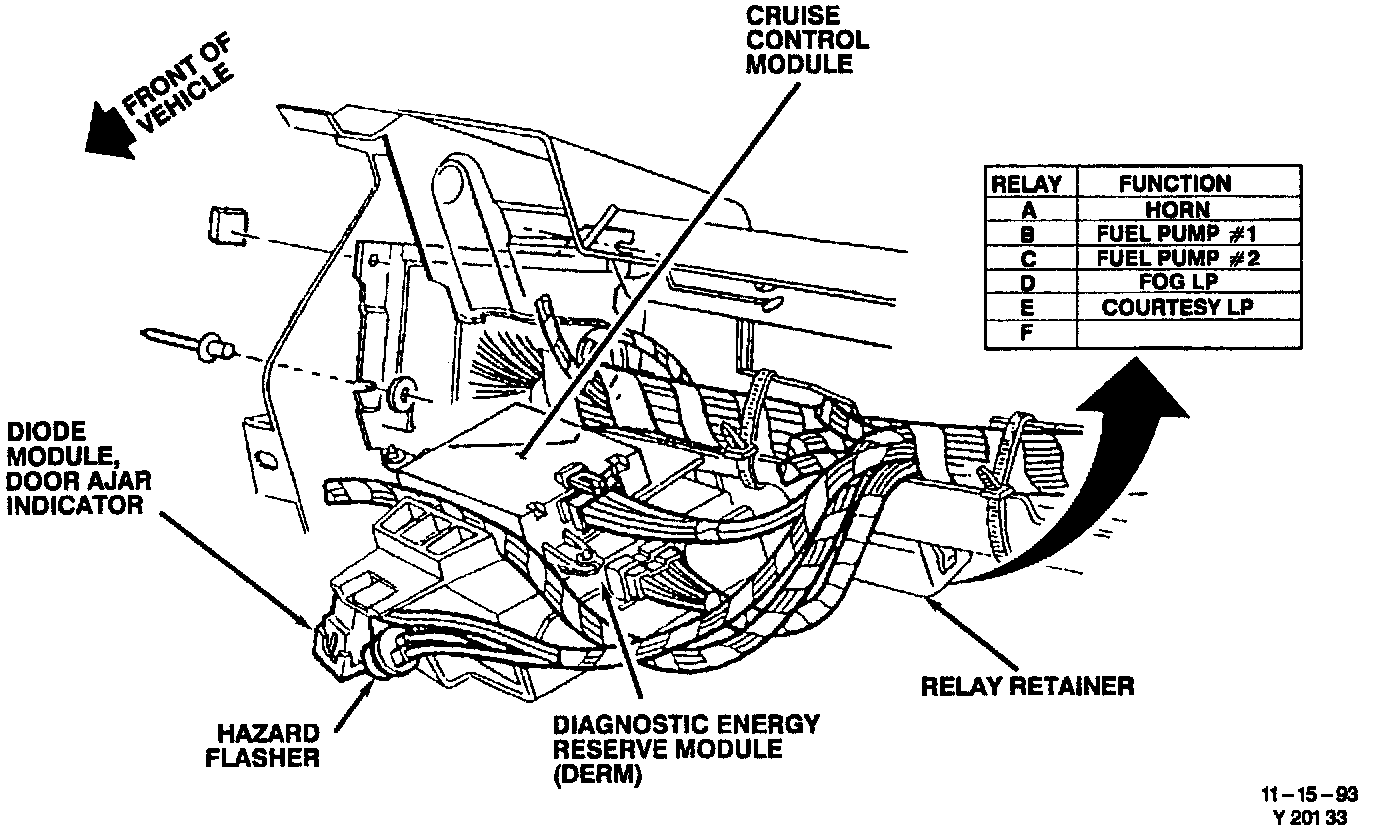

Diagnostic/Energy Reserve Module (DERM)
Behind RH Side Of I/P:
