Fuel Injector: Diagrams

Fuel Rail Removal:

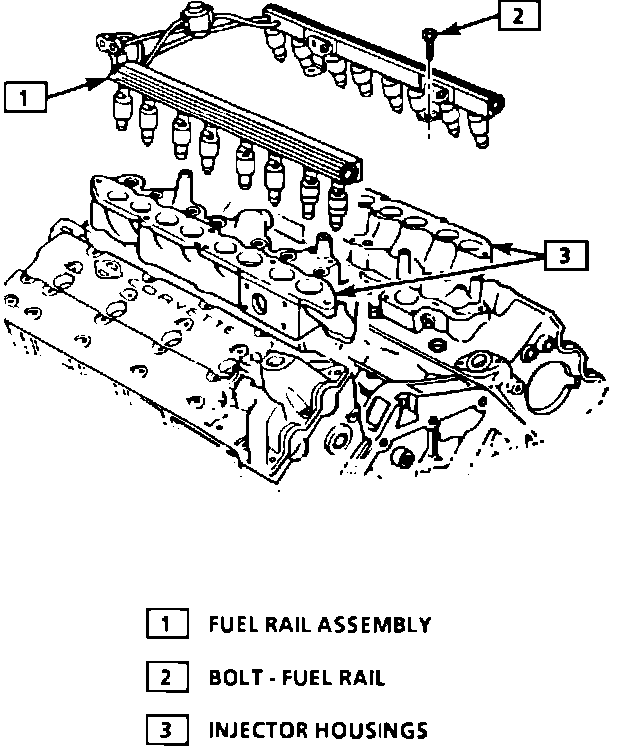

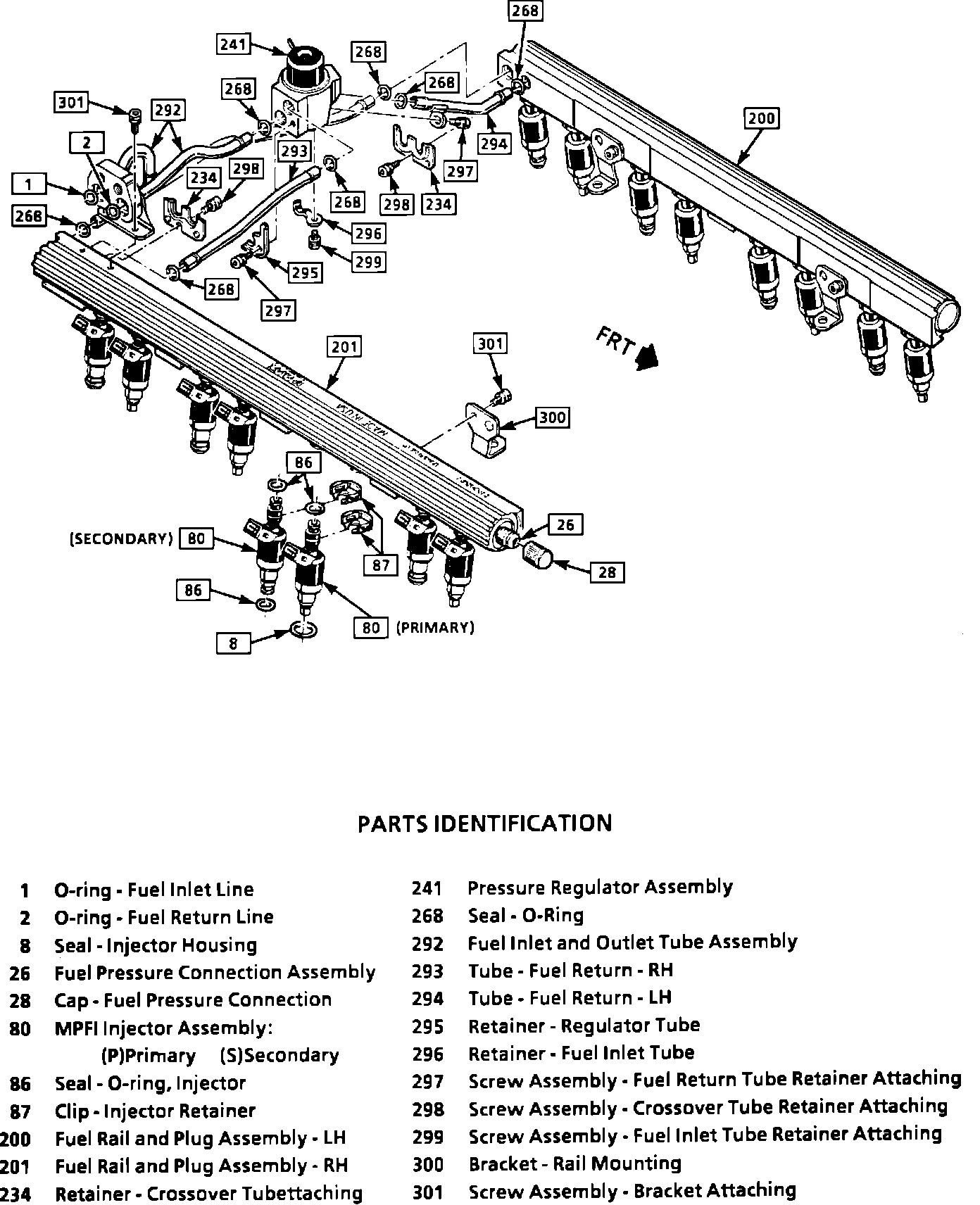

Fuel Rail Assembly - Exploded View:

Fuel injectors are installed in the injector housing on the top of the engine, under the intake plenum. Injectors are held in place by the fuel rail.
