Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1994
>>
Corvette V8-350 5.7L DOHC VIN J MFI
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Fuse Block Details
>>
Tail Fuse, Horn Fuse and Stop/Haz Fuse
Tail Fuse, Horn Fuse and Stop/Haz Fuse

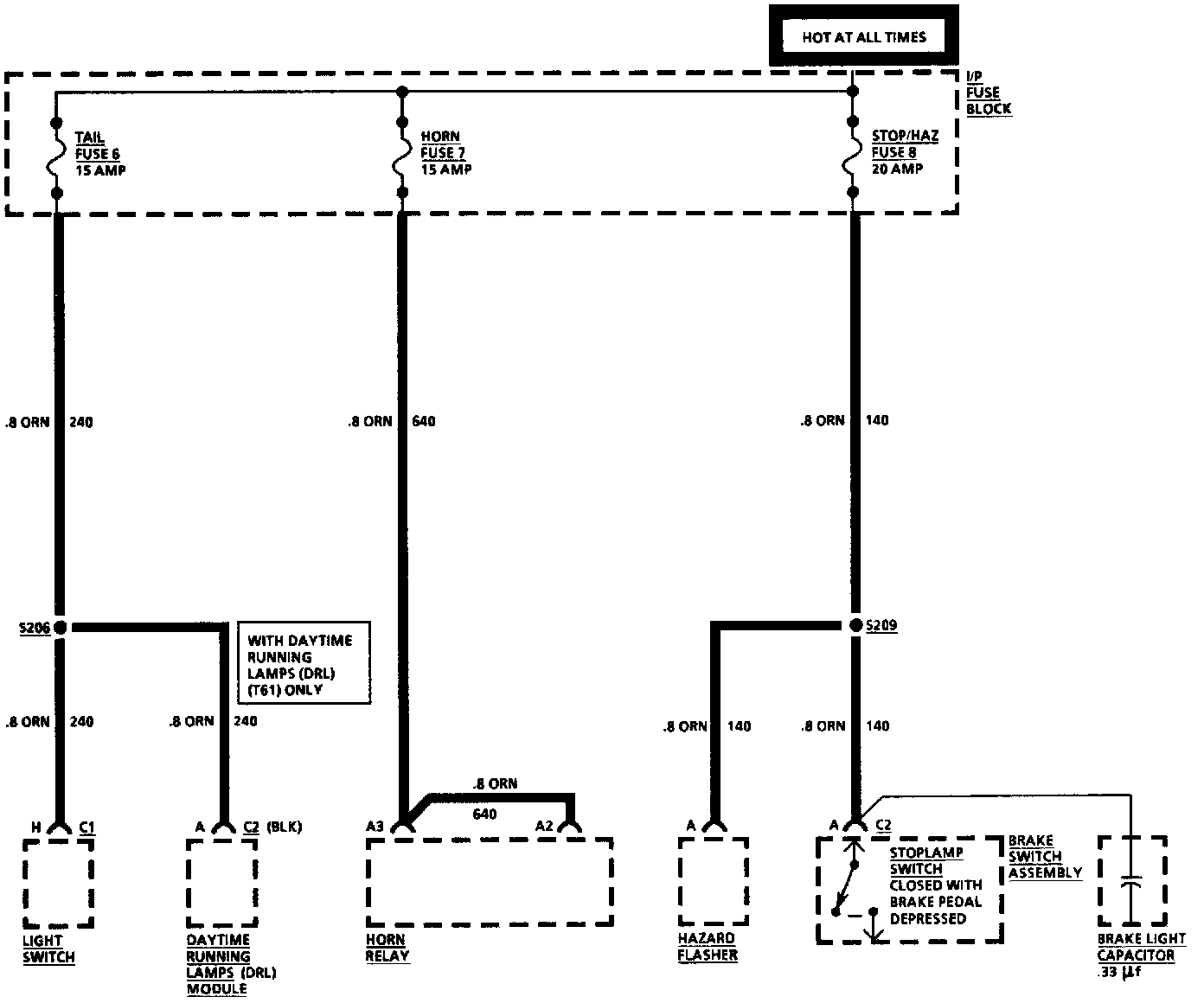

Tail Fuse, Horn Fuse And Stop/HAZ Fuse:
