Home
>>
Chevrolet
>>
1994
>>
Corvette V8-350 5.7L DOHC VIN J MFI
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>

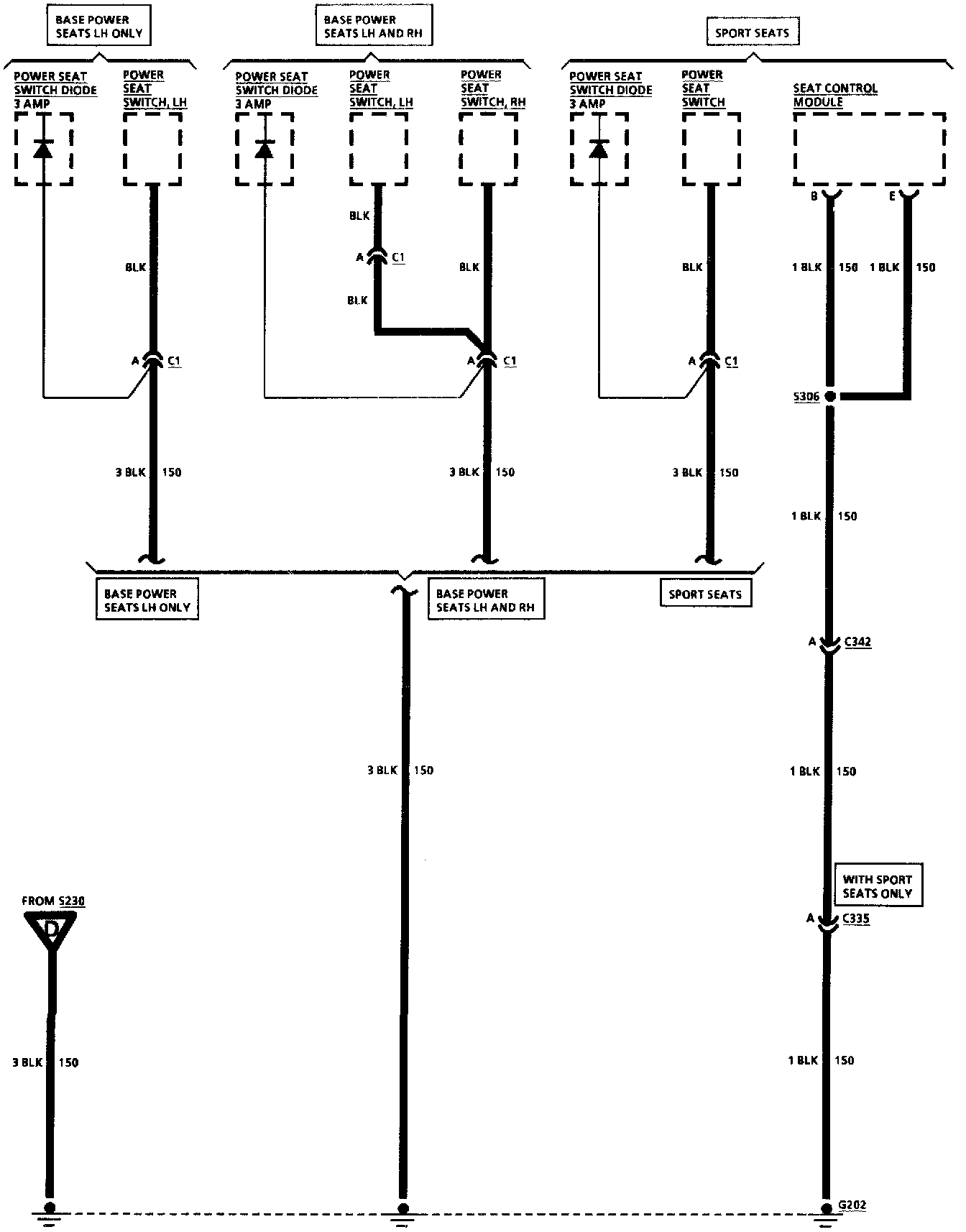

G202
G202
G202:
