Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1994
>>
Corvette V8-350 5.7L DOHC VIN J MFI
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse Block
>>
Application and ID
>>
Underhood Fuse Block
>>
Fuse Block #2
Fuse Block #2

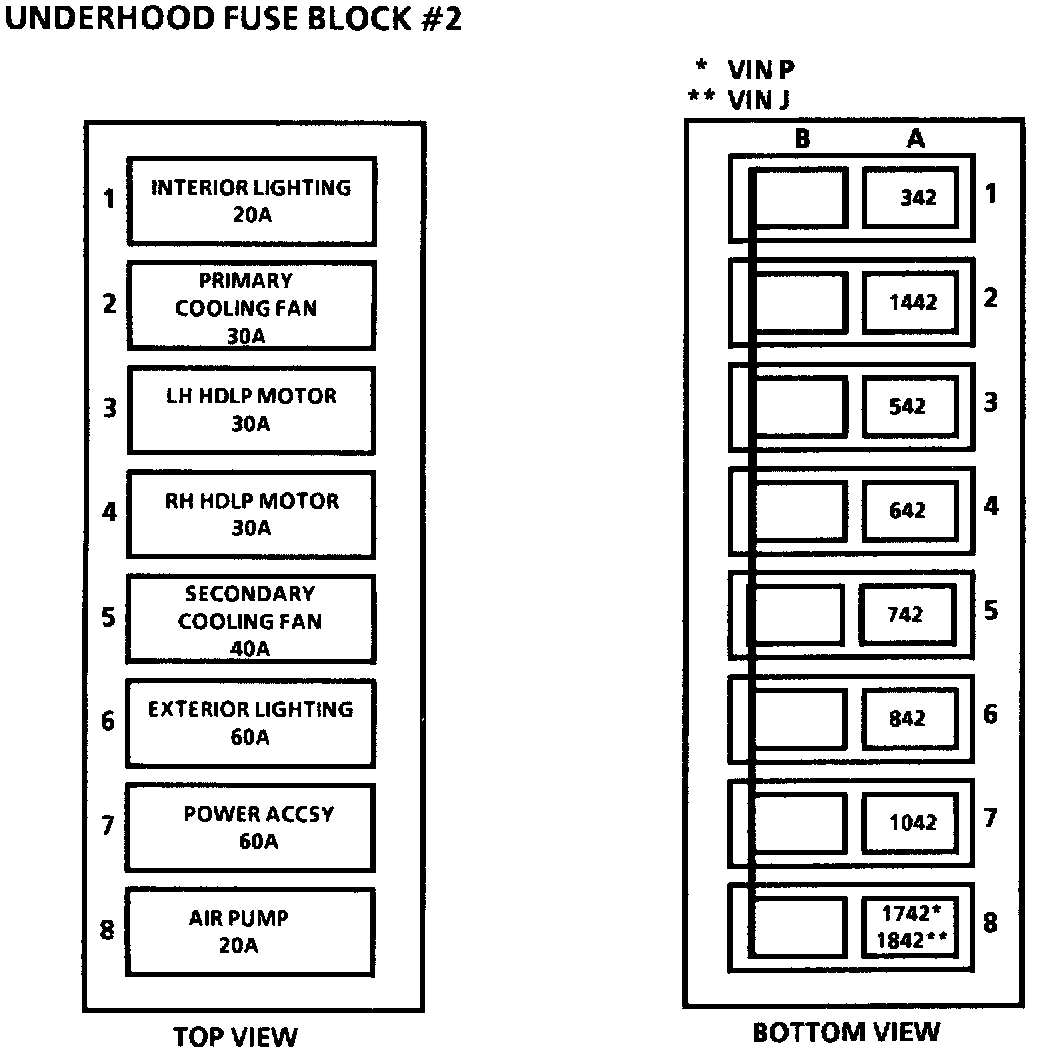

Underhood Fuse Block #2:

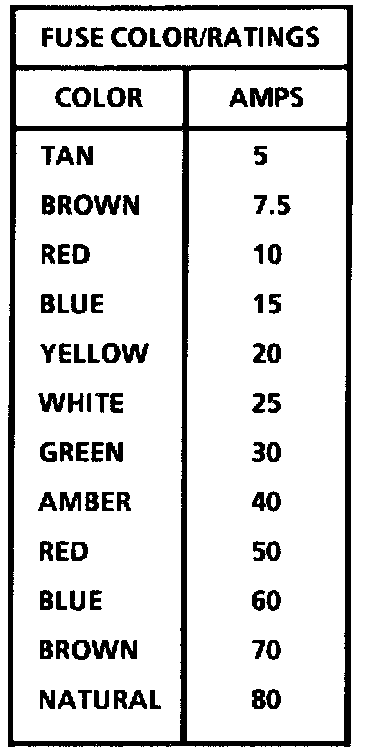

Fuse Color/Ratings:

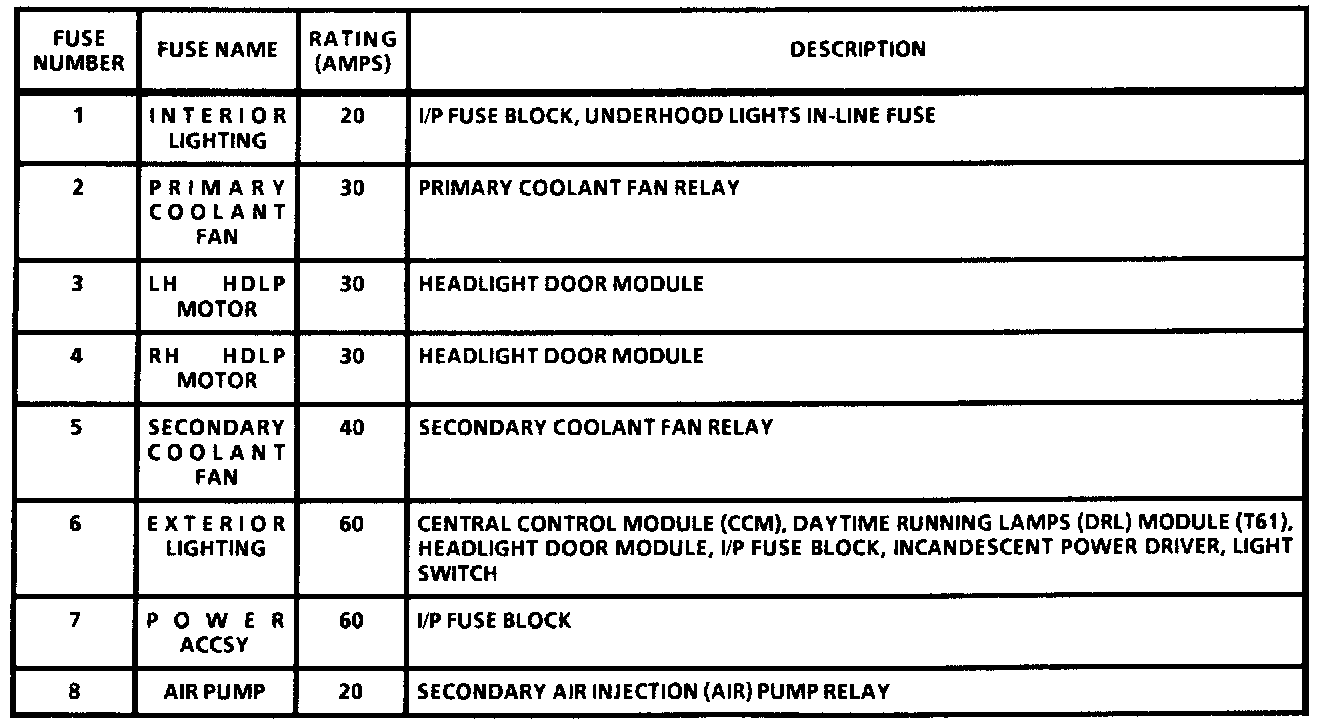

Underhood Fuse Block #2:
