Ride Control System
>>
Part 1 of 4
Part 1 of 4

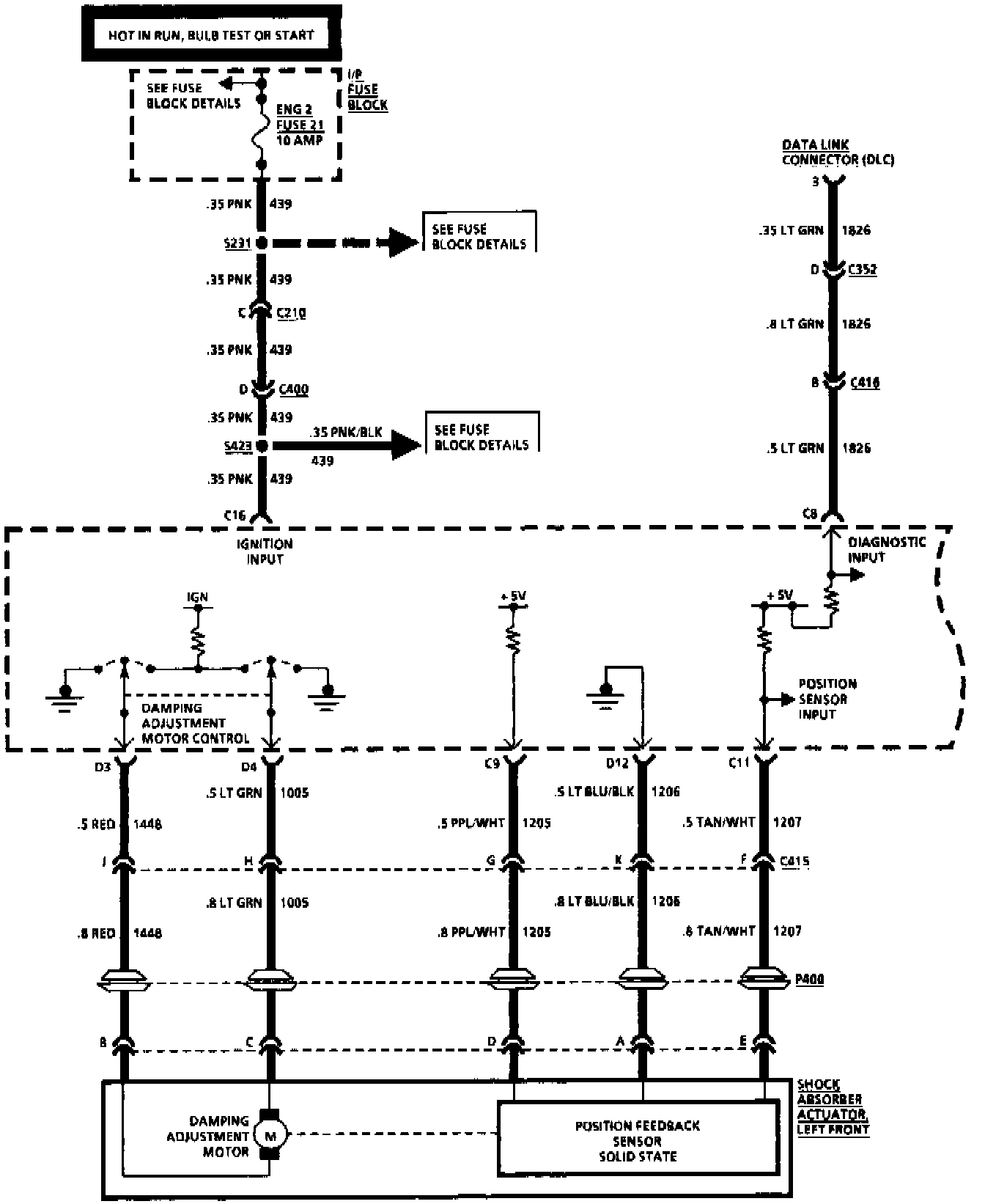

Fig. 2 Selective Ride Wiring Diagram (Part 1 Of 4).:
Diagnose selective ride control system by reading the diagnostic trouble codes stored in the
selective ride control module
. Refer to
Fig. 2
for wiring diagram.
