Lateral Accelerometer: Service and Repair

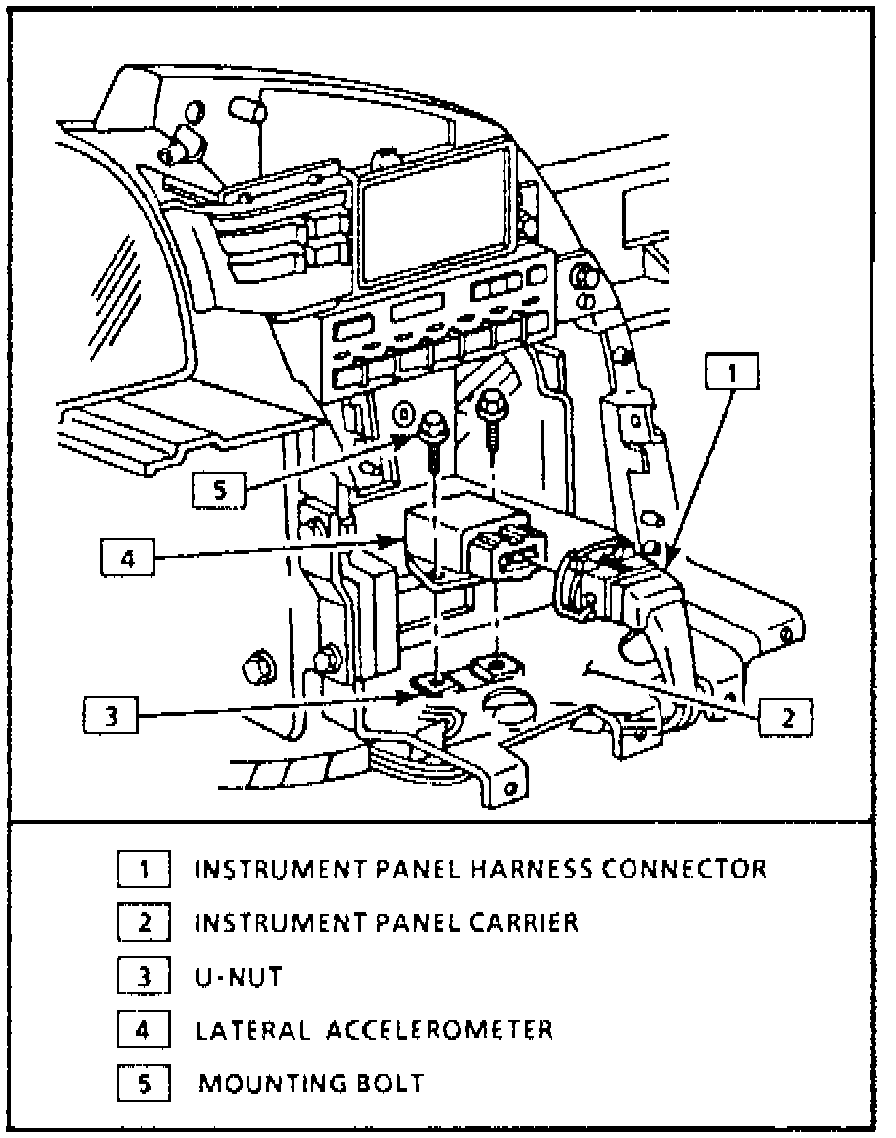

Fig. 85 Lateral Acceleration Switch (Accelerometer).:

1. Disconnect battery ground cable.
2. Remove console trim plate.
3. Remove accessory trim plate.
4. Remove radio control assembly.
5. Depress ABS/ASR harness to lateral accelerometer electrical connector to release, Fig. 85.
6. Remove accelerometer to I/P carrier attaching bolts.
7. Remove lateral accelerometer from I/P carrier.
8. Reverse procedure to install, noting the following:
a. Ensure accelerometer electrical connector is tight and fully seated.
b. Torque accelerometer attaching bolts to 29 inch lbs.
