Electronic

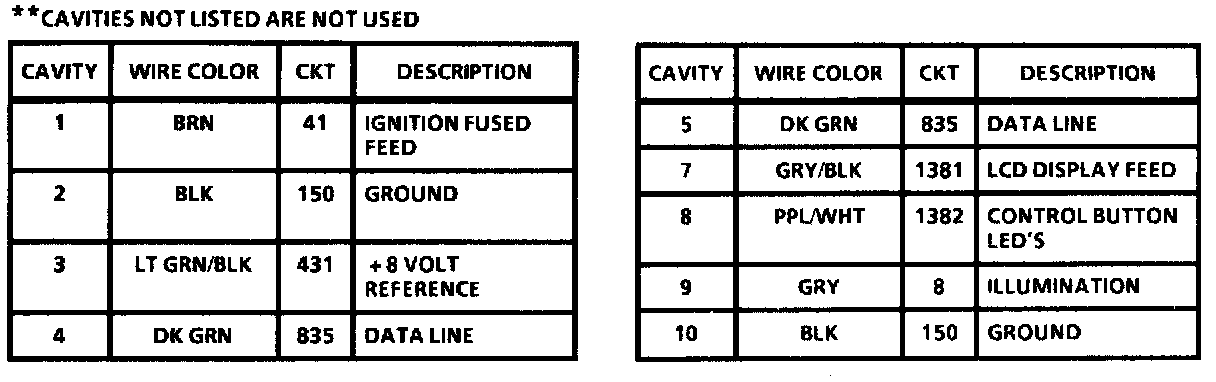

Heater/Vent/Air Conditioning (HVAC) Control Head (C68):

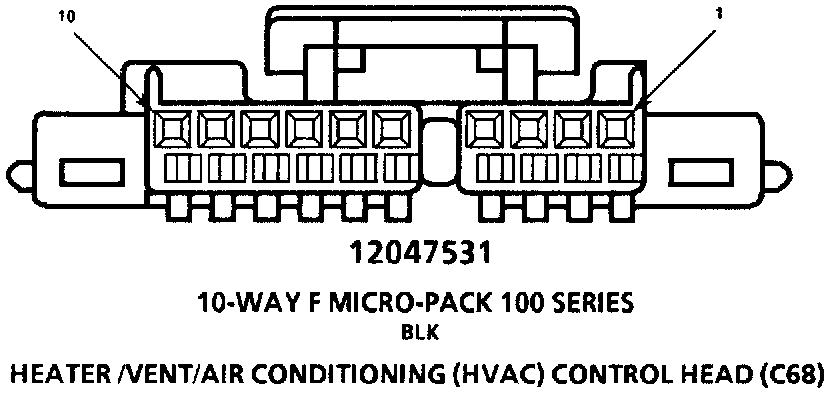

Heater/Vent/Air Conditioning (HVAC) Control Head (C68):
