HVAC Blower Control - Revised Diagnostic Chart

File In Section: 8 - Chassis/Body Electrical

Bulletin No.: 53-81-38

Date: January, 1996

SERVICE MANUAL UPDATE

Subject:

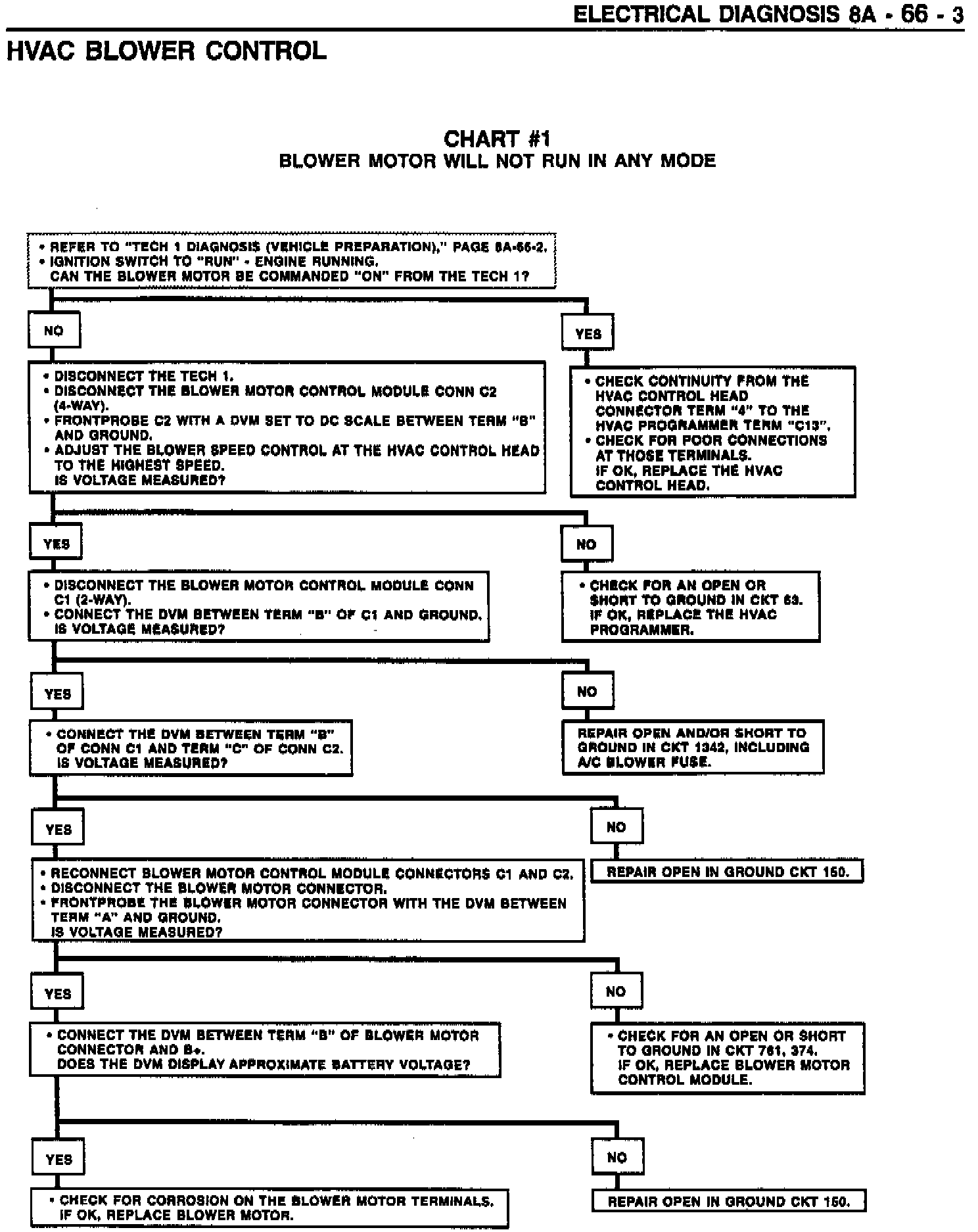

Section 8A-66 - Revised Diagnostic Chart # 1 for HVAC Blower Control

Models:
1993-96 Chevrolet Corvette

This bulletin updates the HVAC Blower Control diagnostic chart # 1 on page 8A-66-3 of the 1996 Preliminary Corvette Service Manual (GMP/96-Y-P).





Please use the page to replace the existing page in the appropriate Service Manuals.
