Compressor Controls

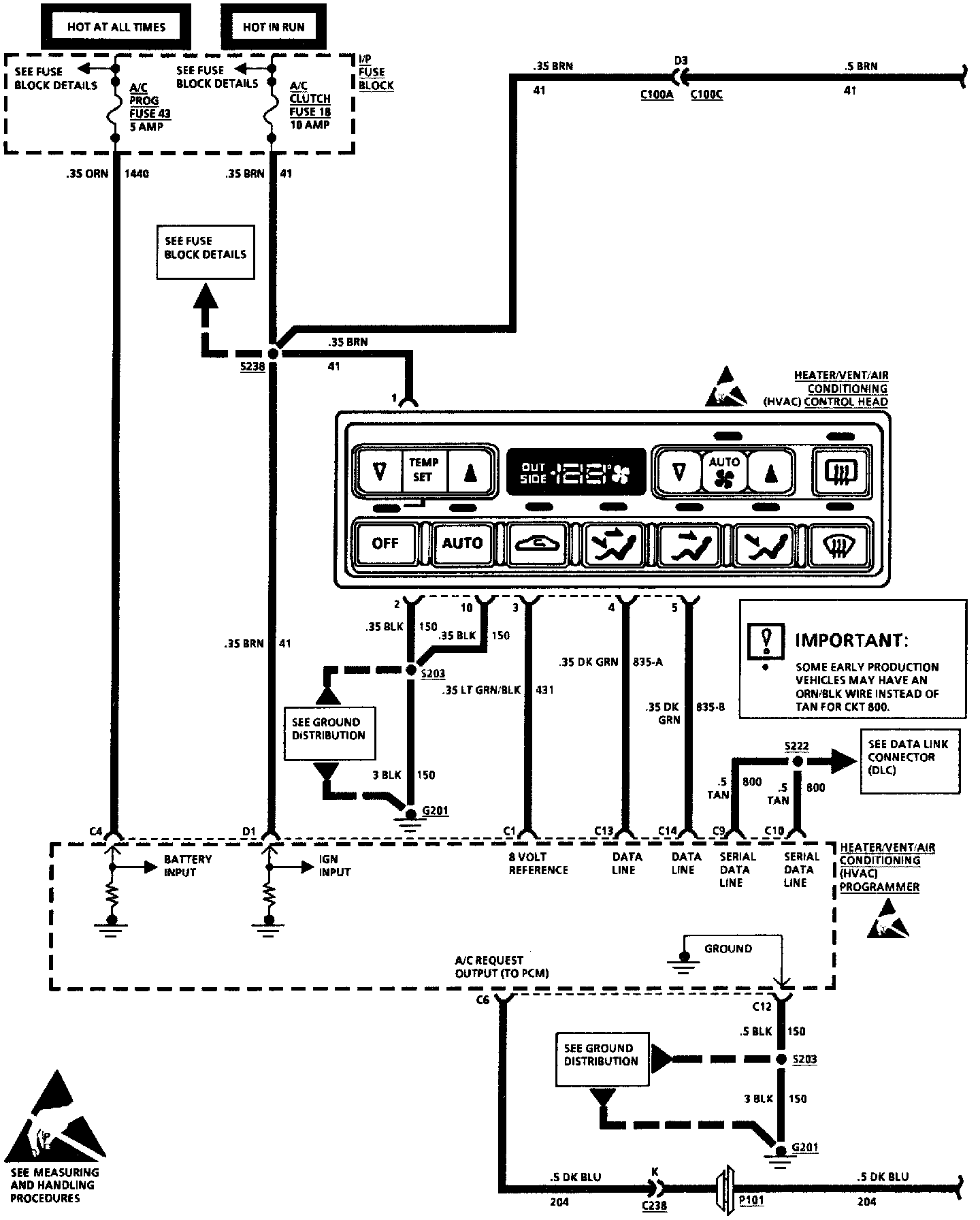

HVAC Compressor Controls: C68, Electronic (Part 1 Of 2):



HVAC Compressor Controls: C68, Electronic (Part 2 Of 2):
