Home >> Chevrolet >> 1994 >> Corvette V8-350 5.7L >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Electrical Diagrams >> Manual Air Conditioning >> Compressor Controls

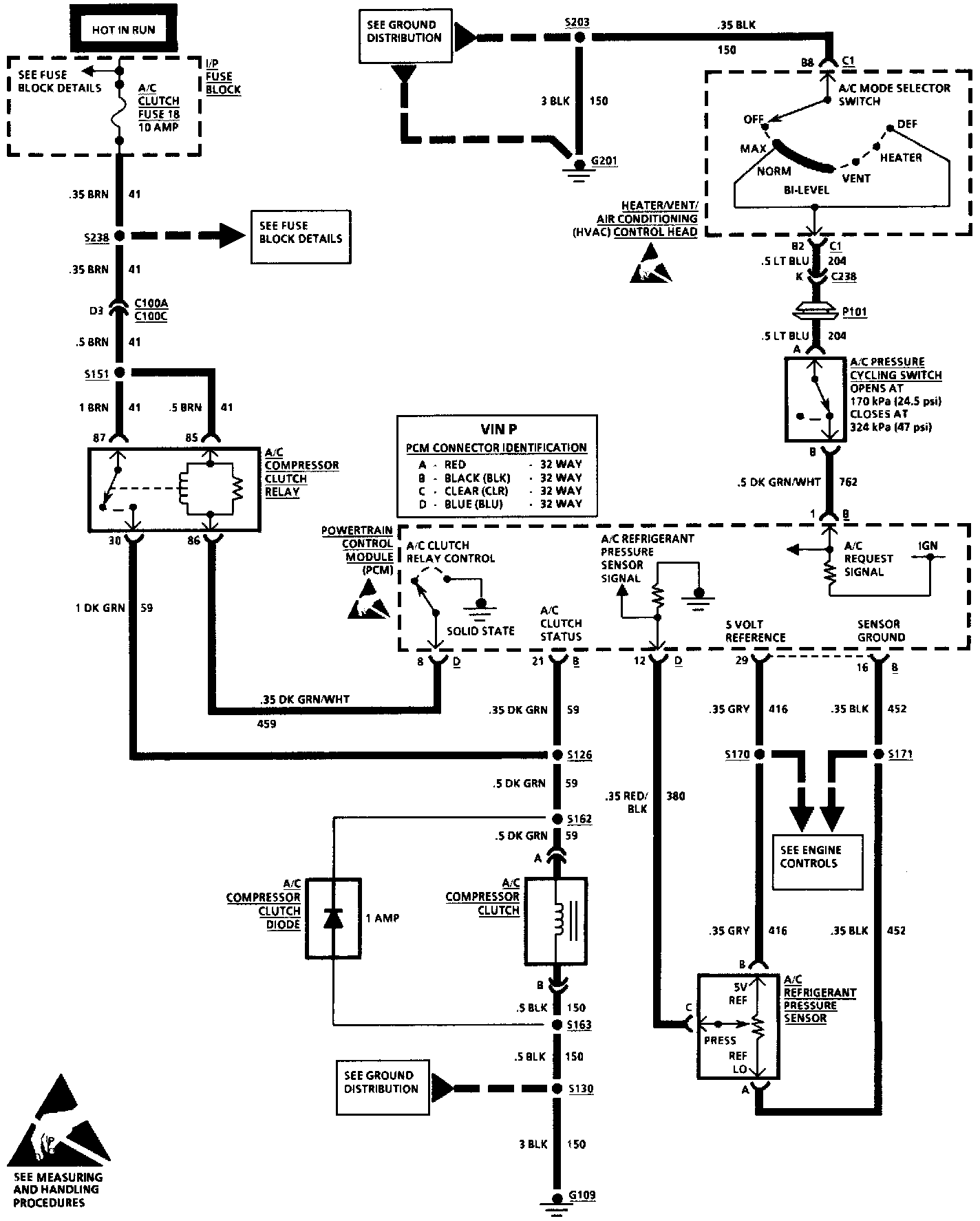

Compressor Controls

HVAC Compressor Manual: C60, Manual:
