Rear Camber Adjustment

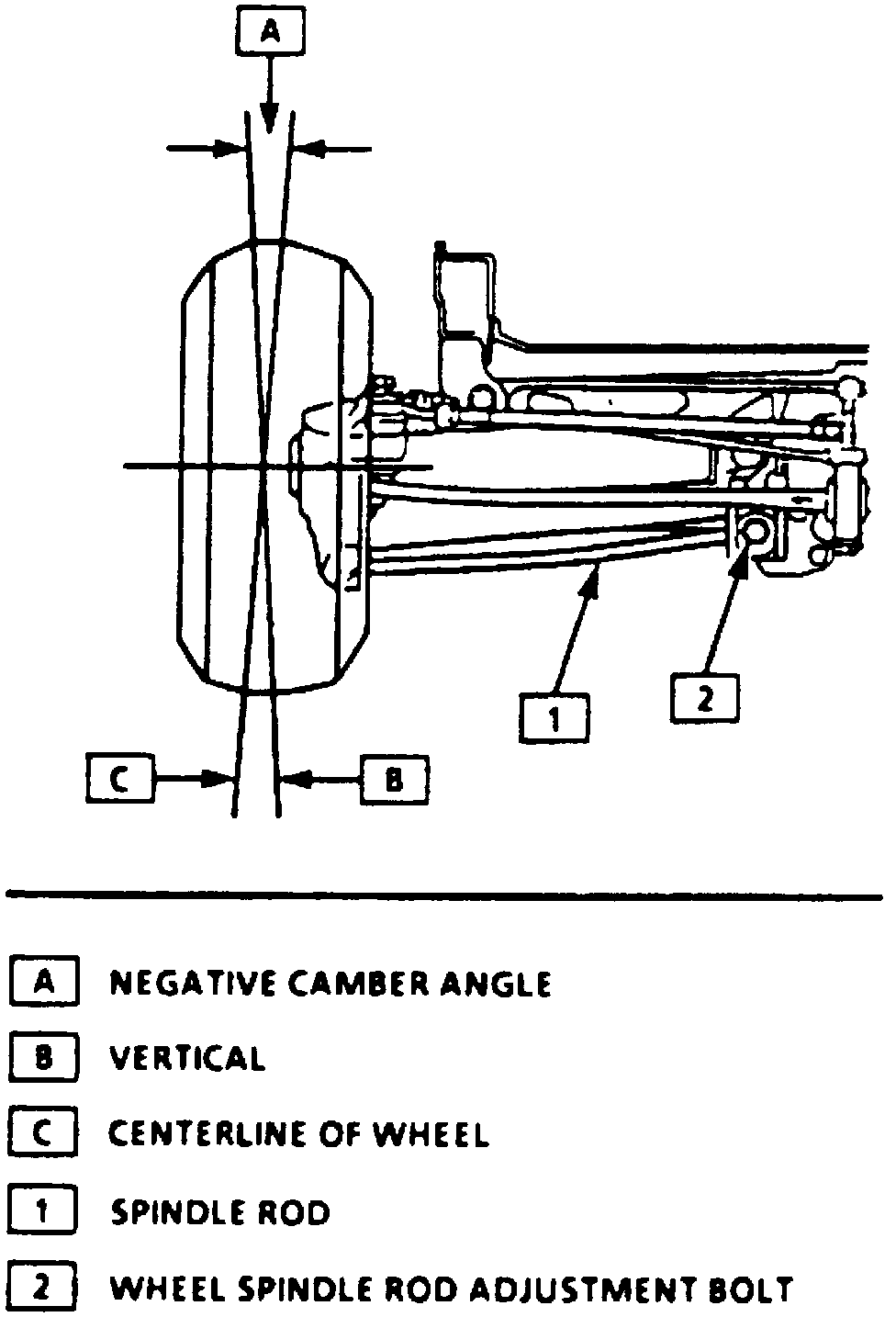

Fig. 3 Rear Camber Adjustment:

Camber is adjusted by rotating the eccentric cam and bolt located at the inboard end of the spindle support rod, Fig. 3. To check and adjust camber, proceed as follows:
1. Place rear wheels of vehicle on suitable alignment equipment following manufacturer's instructions, then check camber reading.
2. If wheel camber is not within specifications, loosen cam bolt retaining nut.
3. Rotate cam bolt, Fig. 3, until camber reading is within specifications.
