Drive Belt: Service and Repair

SERPENTINE DRIVE BELT AND TENSIONER ASSEMBLY






NOTICE: Routine inspection of the belt may reveal cracks in the belt ribs. These cracks will not impair belt performance and therefore should not be considered a problem requiring belt replacement. However, the belt should be replaced if belt slip occurs or if sections of the belt ribs are missing. A single serpentine drive belt is used to drive all engine accessories. Ml belt driven accessories are rigidly mounted with belt tension maintained by a spring loaded tensioner assembly.

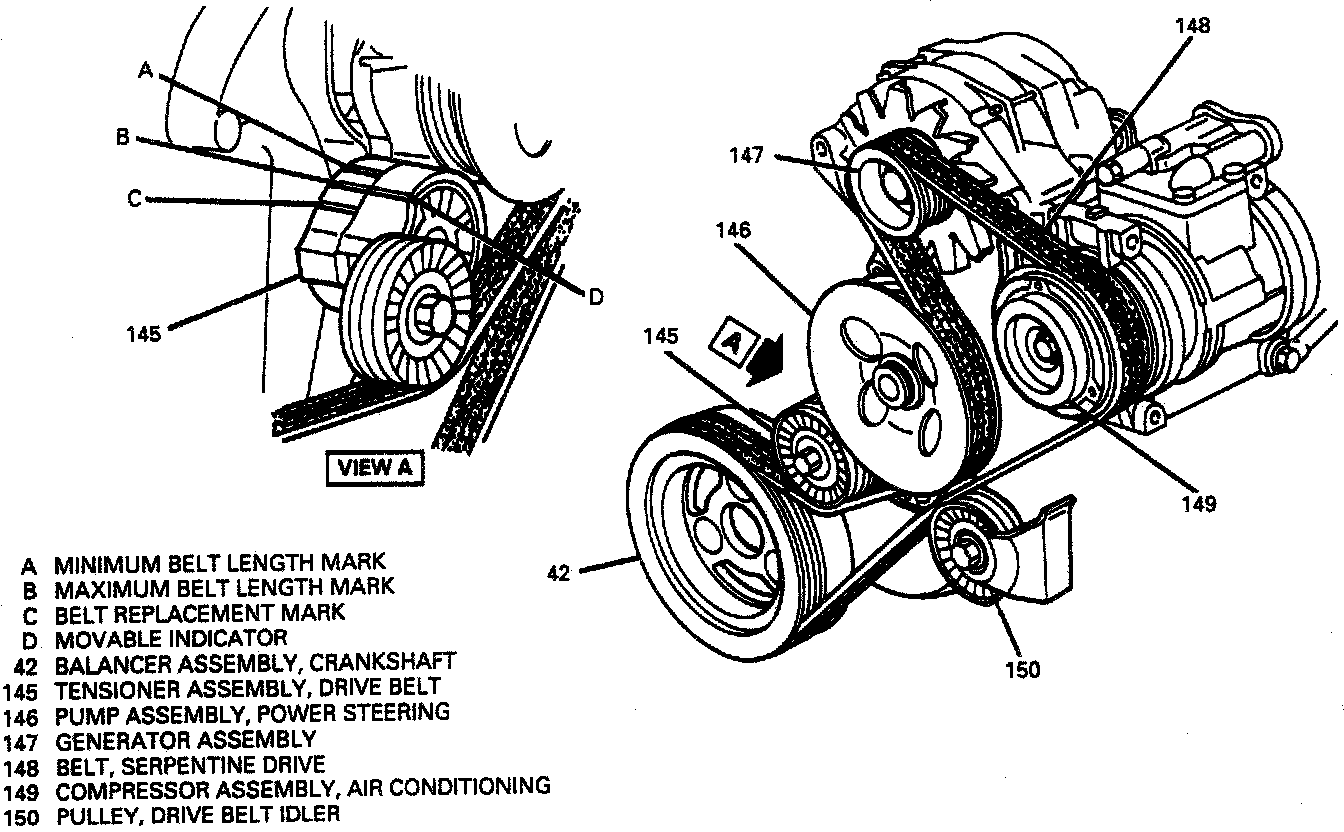

The indicator on the movabTe portion of the ten sioner assembly must be within the limits of the marks of the stationary portion of the tensioner assembly. Any reading outside of these limits indicates either a defective belt or tensioner assembly.

Drive Belt

Inspect
^ Belt length scale on drive belt tensioner assembly for proper installed length. If belt length scale does not indicate proper installed length, install new drive belt.

Remove or Disconnect
1. Battery negative cable assembly
2. Lift drive belt tensioner assembly (145) upward (clockwise) off drive belt using socket and handle on tensioner pulley bolt/screw.
3. Drive belt (148).

Clean
^ Drive belt surfaces.

Install or Connect






1. Drive belt (148) under tensioner pulley by lifting drive belt tensioner assembly (145).
^ Be sure drive belt (148) is aligned into proper grooves of drive belt pulleys.
2. Battery negative cable assembly.
