Instrument Panel (I/P) Fuse Block

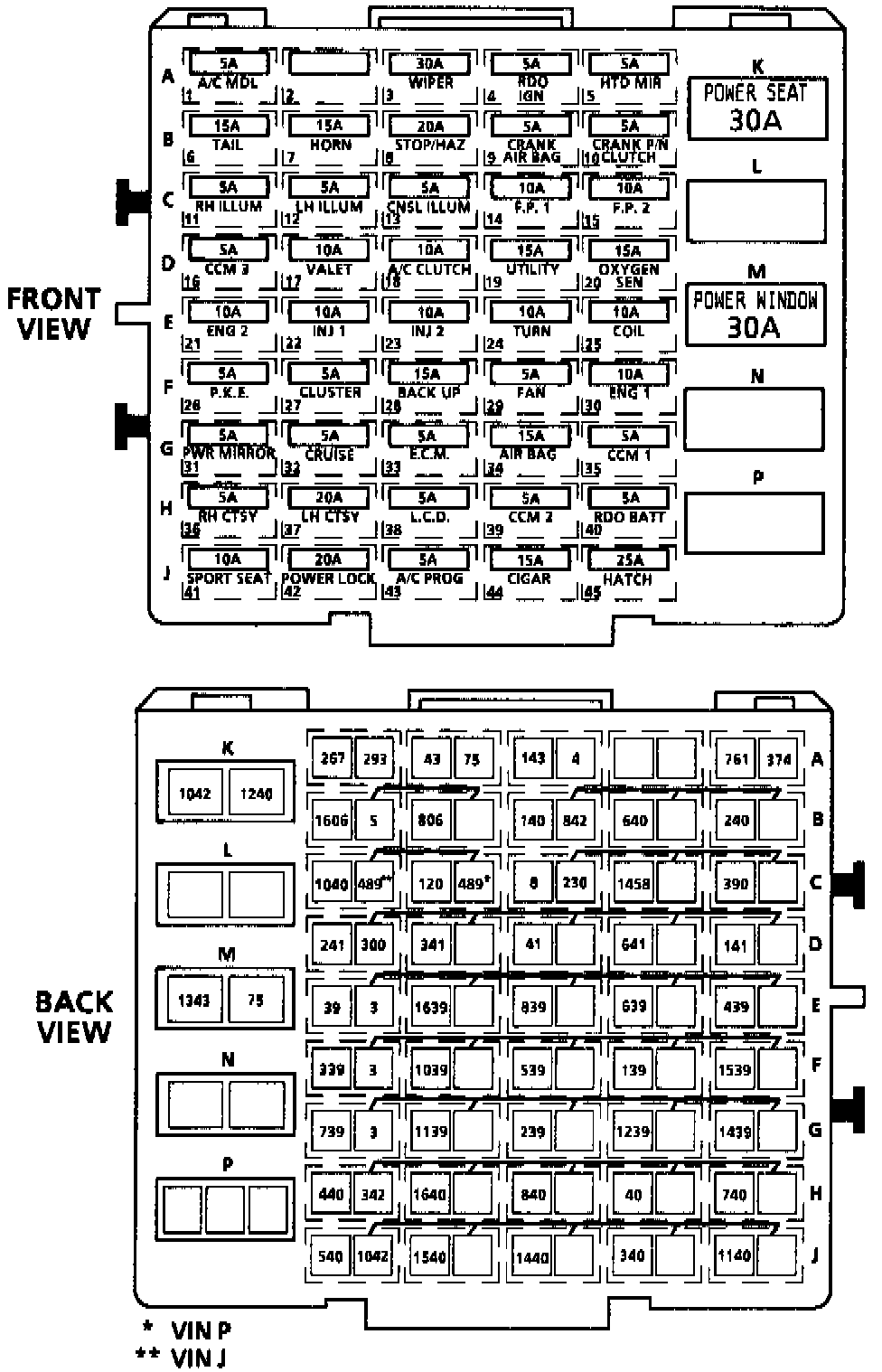

I/P Fuse Block:

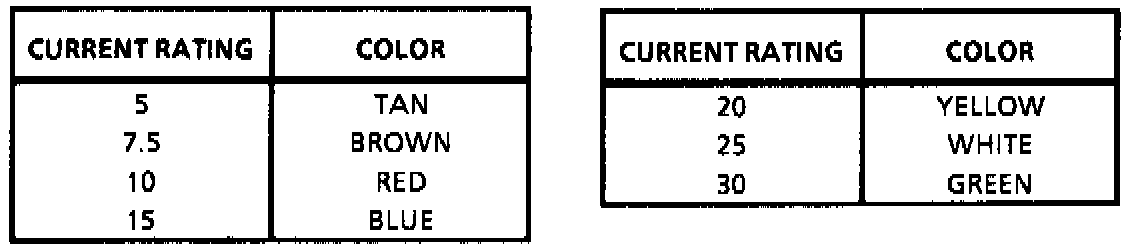

Fuse Color/Ratings:



I/P Fuse Block: Fuse Application Chart (Part 1 Of 2):

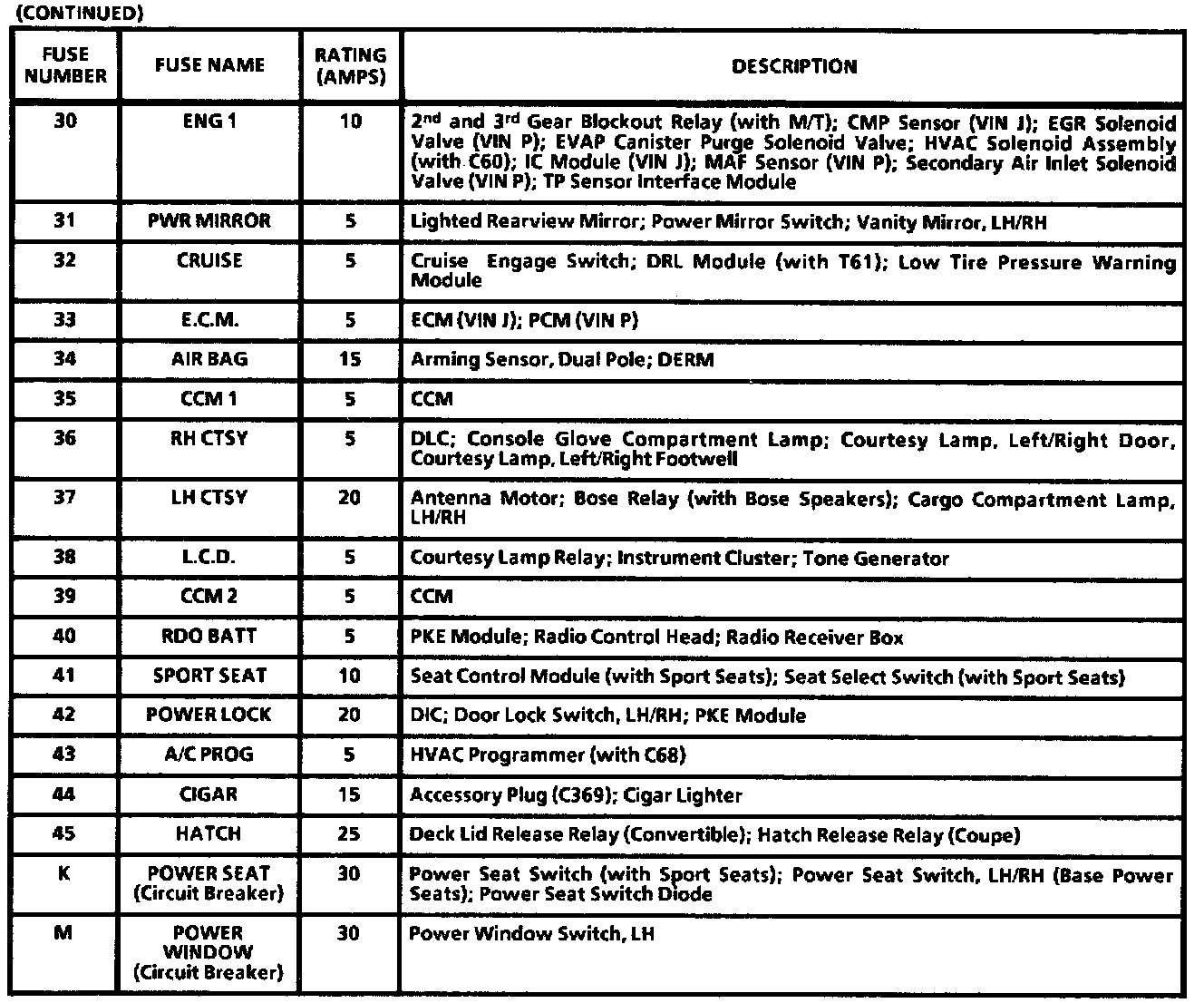

I/P Fuse Block: Fuse Application Chart (Part 2 Of 2):
