Electrical Diagrams

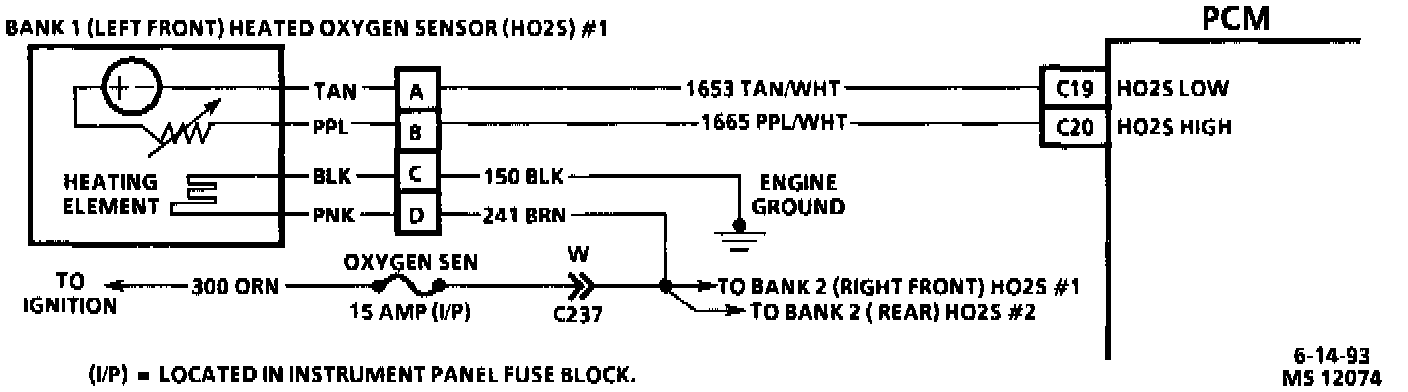

Left Oxygen Sensor Circuit Diagram:

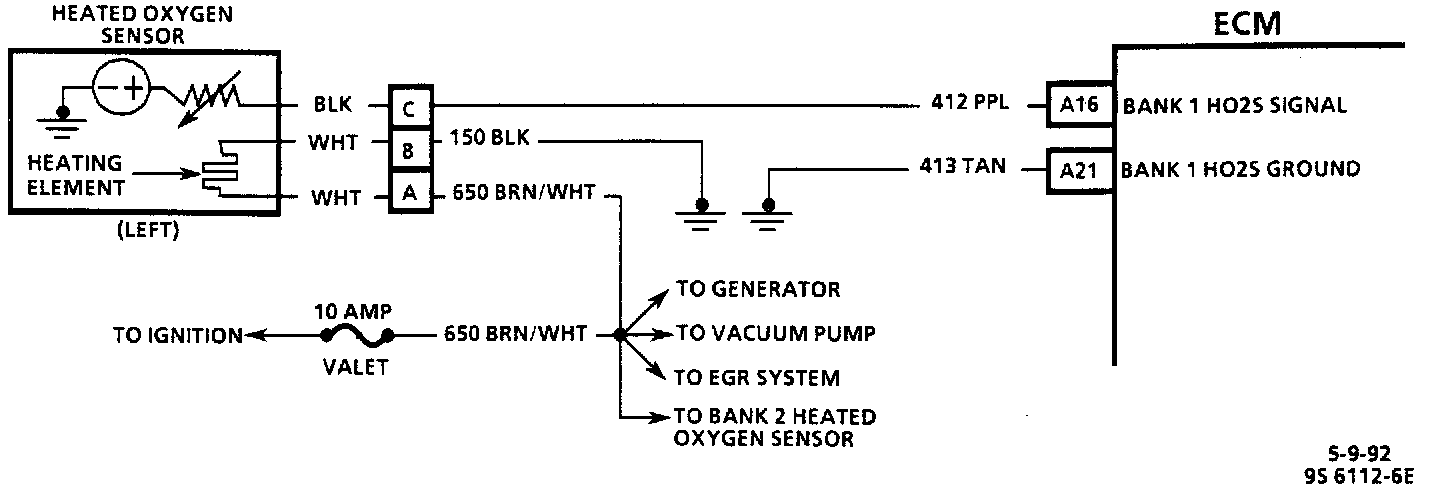

Left Front Oxygen Sensor Circuit:

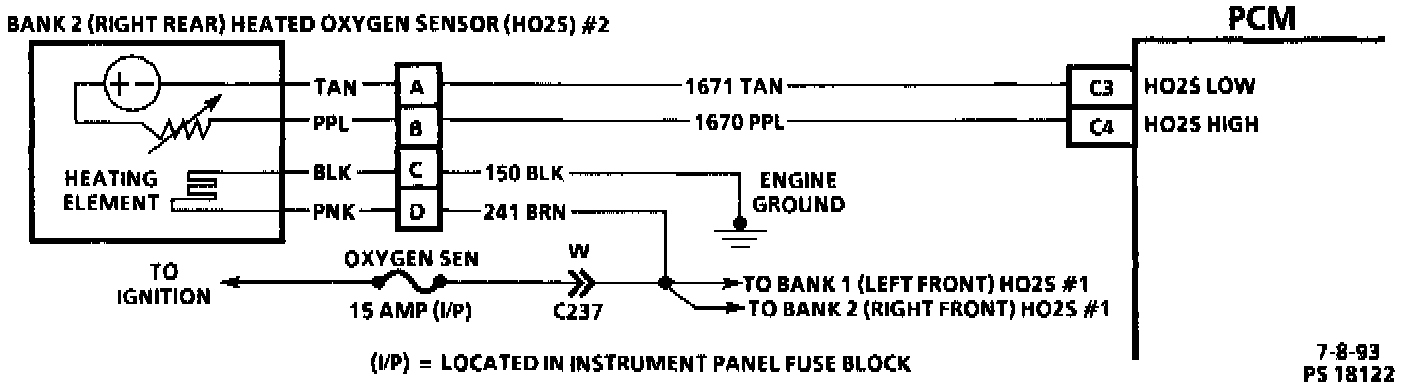

Bank 2 - (Right) Rear Heated Oxygen Sensor Circuit:
