EGR Control Solenoid: Service and Repair

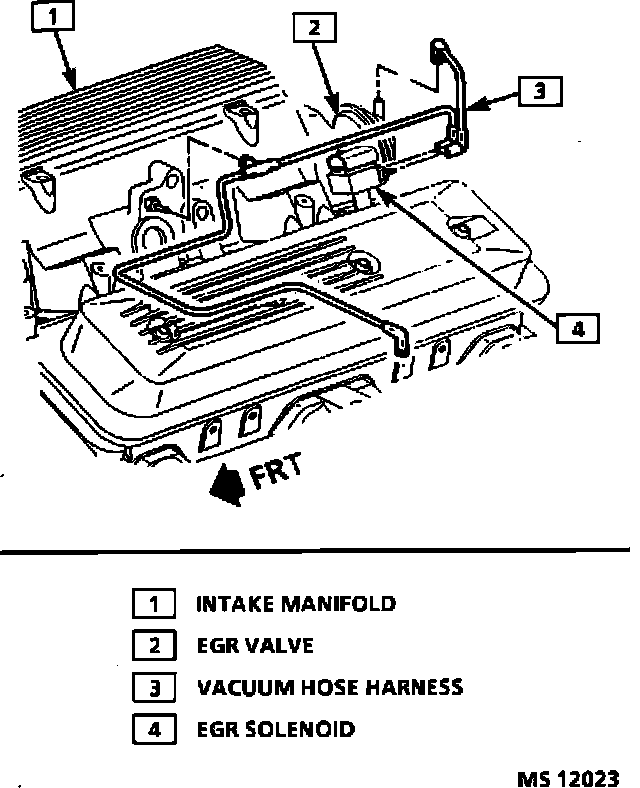

EGR Control Solenoid:

Remove or Disconnect
1. Negative battery cable
2. Left fuel rail cover
3. Electrical connector
4. Vacuum hoses
5. Nut and solenoid

Install or Connect
1. Solenoid and bracket
Torque Value: 34 N-m (25 lb.ft.)
2. Vacuum hoses
3. Electrical connector
4. Left fuel rail cover
5. Negative battery cable
