Torque Specifications

Cylinder Head Bolts

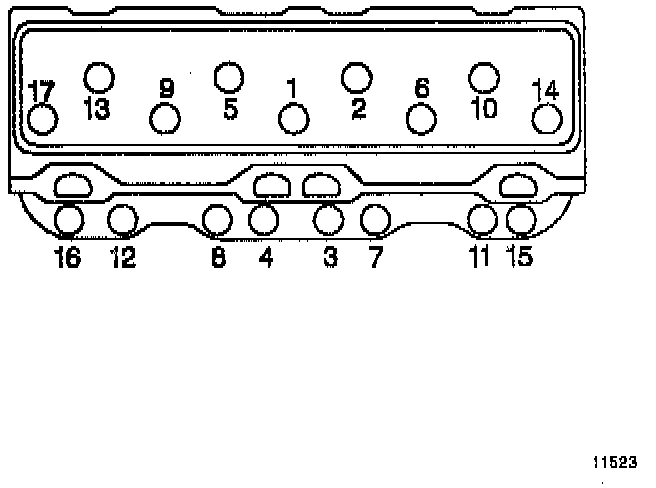

Cylinder Head Bolt Tightening Sequence:

In the sequence shown (refer to image):

^ Torque short bolts (3, 4, 7, 8, 11, 12, 15, 16) to 67°
^ Torque medium bolts (14, 17) to 80°
^ Torque long bolts (1, 2, 5, 6, 9, 10, 13) to 80°
