Transmission Temperature Sensor/Switch: Locations

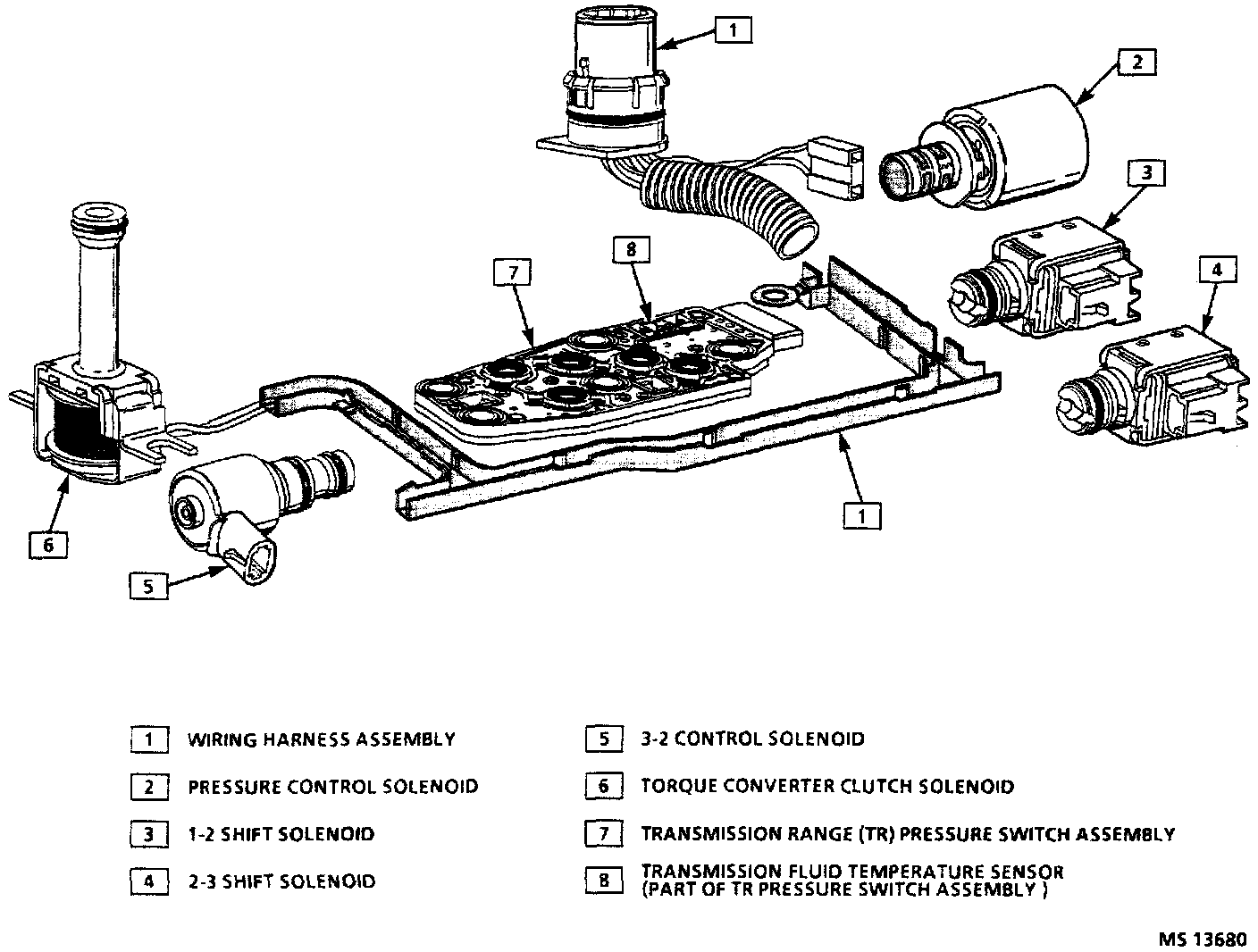

Transmission Control Components (Shown In Their Approximate Positions Inside The Transmission):

The transmission range pressure switch/temperature sensor assembly is installed on the valve body inside the transmission.
