S10/T10 P/U 2WD L4-134 2.2L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Control Assembly
>>
Locations
>>
With A/C
With A/C

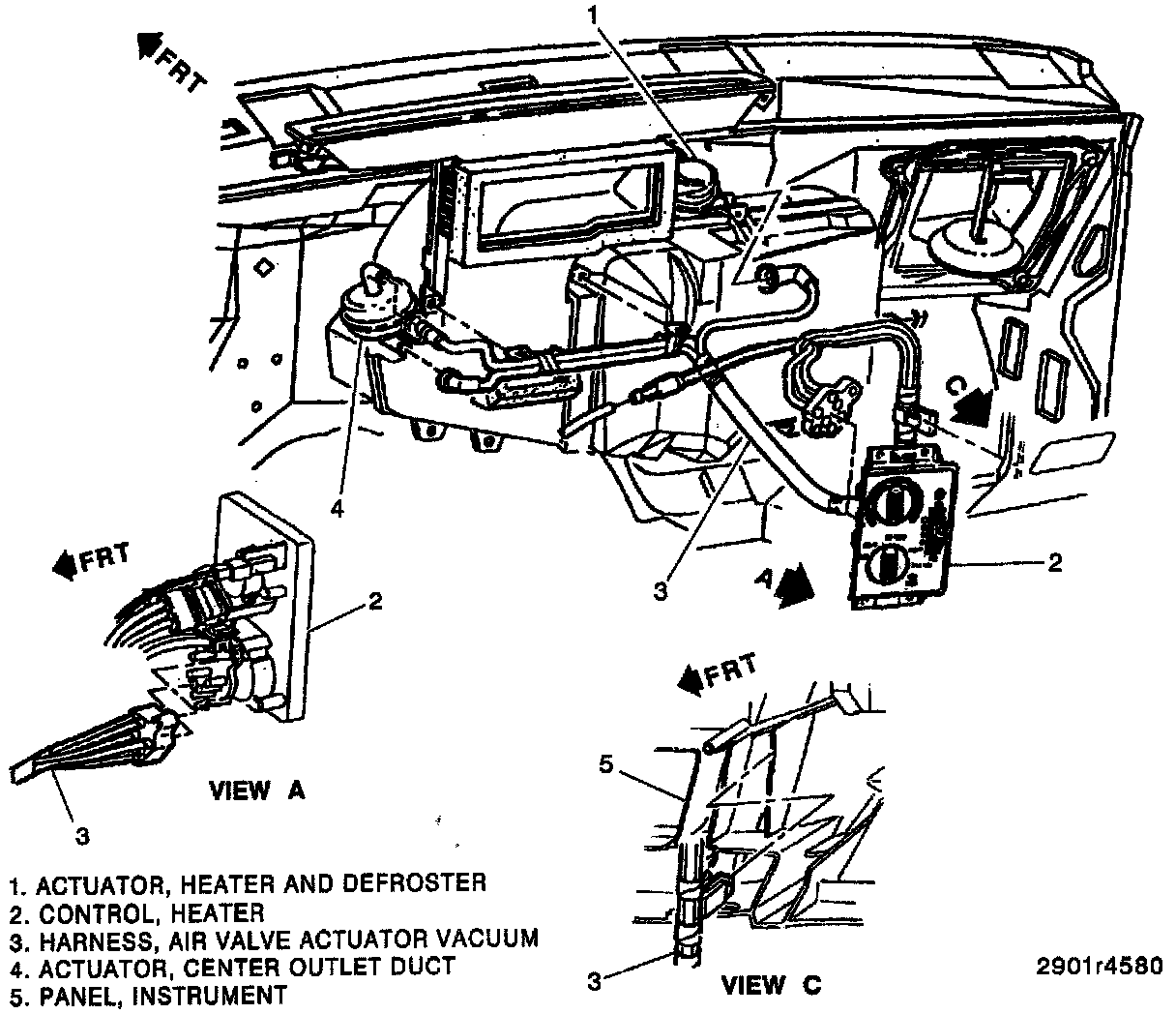

Heater Control Assembly:
Vacuum Harness Routing:
