Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1994
>>
S10/T10 P/U 2WD L4-134 2.2L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Application and ID
>>
Fuse and Circuit Breaker Identification
Fuse and Circuit Breaker Identification

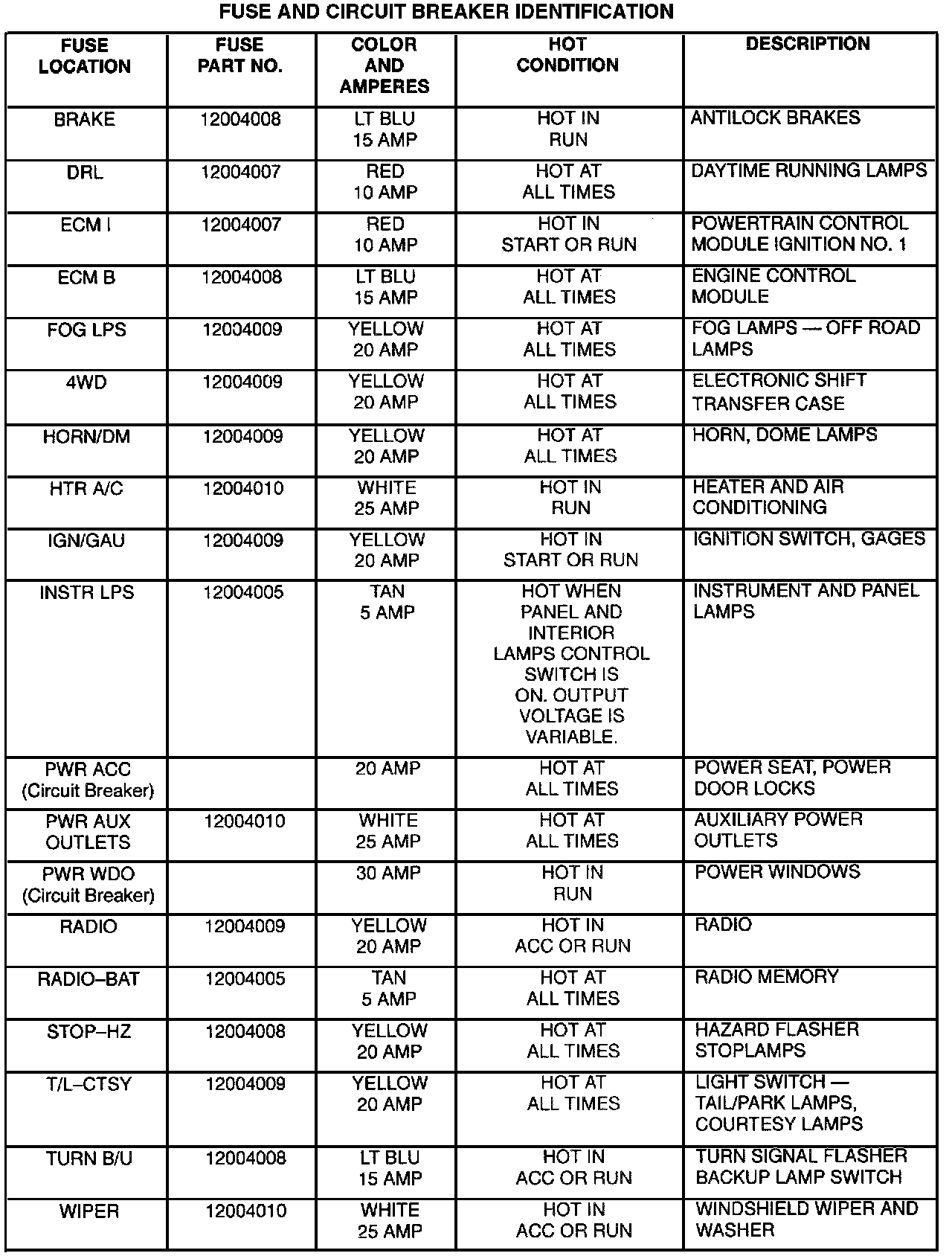

Fuse Block Details: Fuse And Circuit Breaker Identification:
