Home >> Chevrolet >> 1994 >> S10/T10 P/U 2WD L4-134 2.2L >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Catalytic Converter >> Locations

Catalytic Converter: Locations

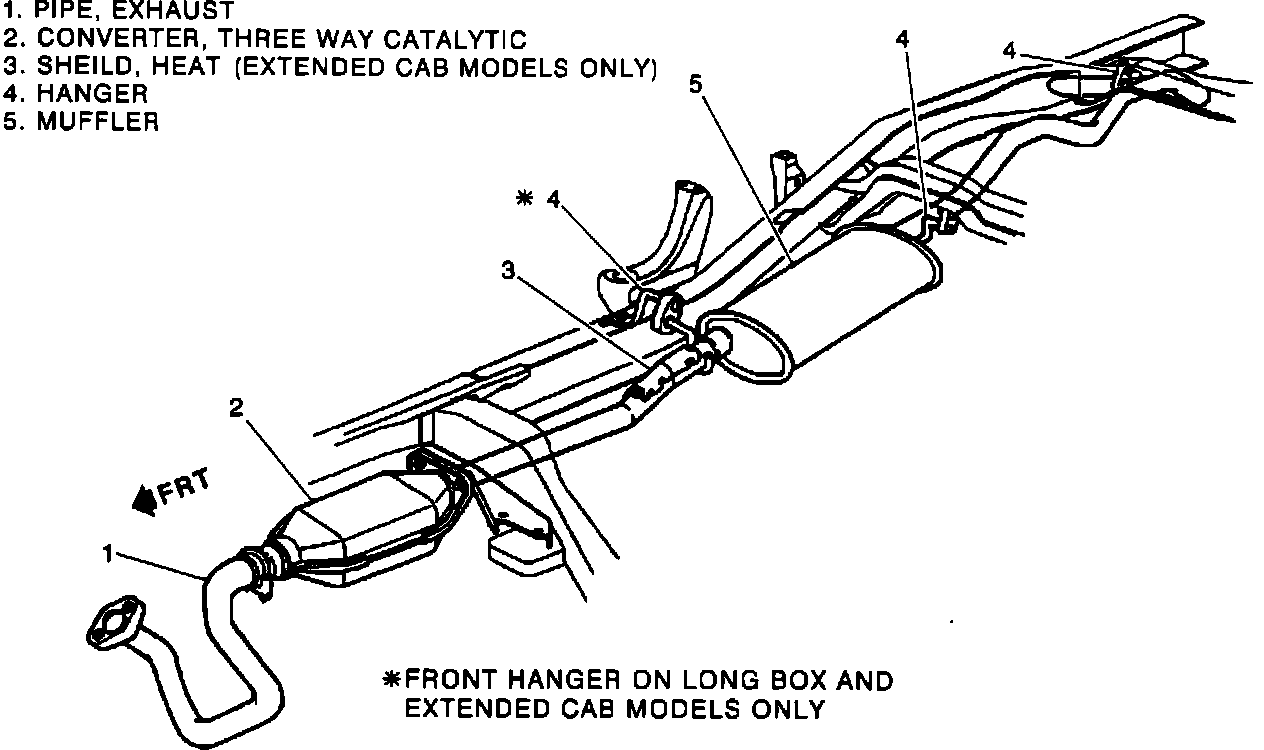

Exhaust Layout S/T 2WD PUP 2.2L:
