Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1994
>>
S10/T10 P/U 2WD L4-134 2.2L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Ignition Cable
>>
Locations
>>
Spark Plug Wire Routing
Spark Plug Wire Routing

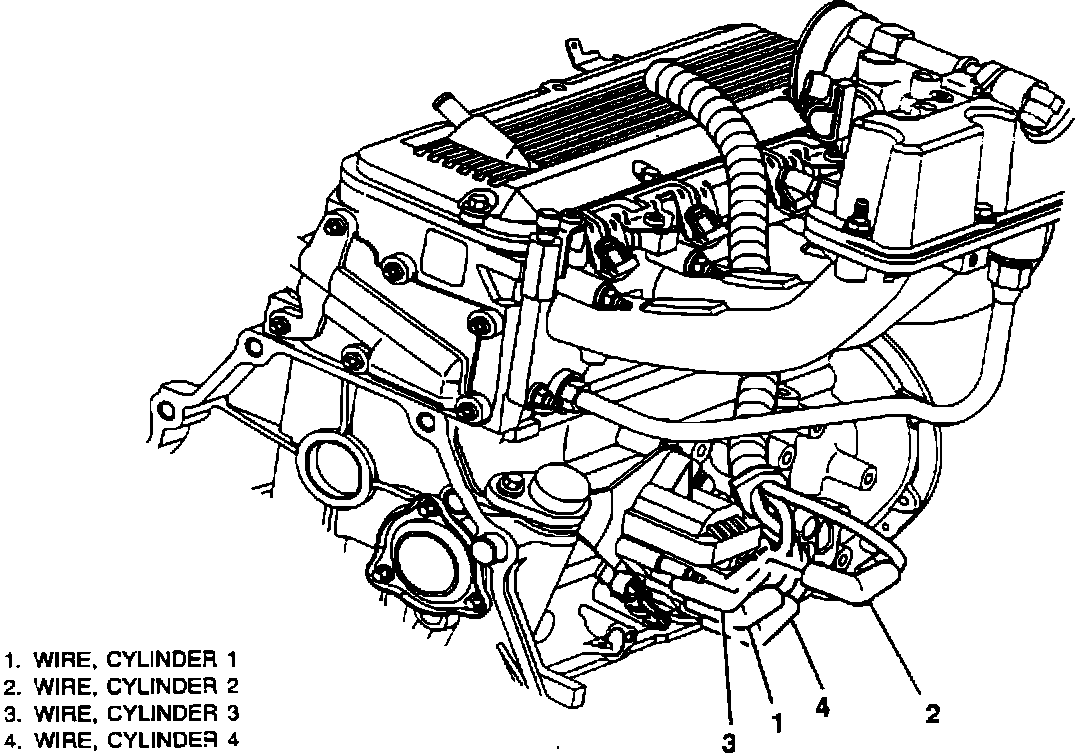

Spark Plug Wire Routing - Left Side 2.2L S/T PUP:

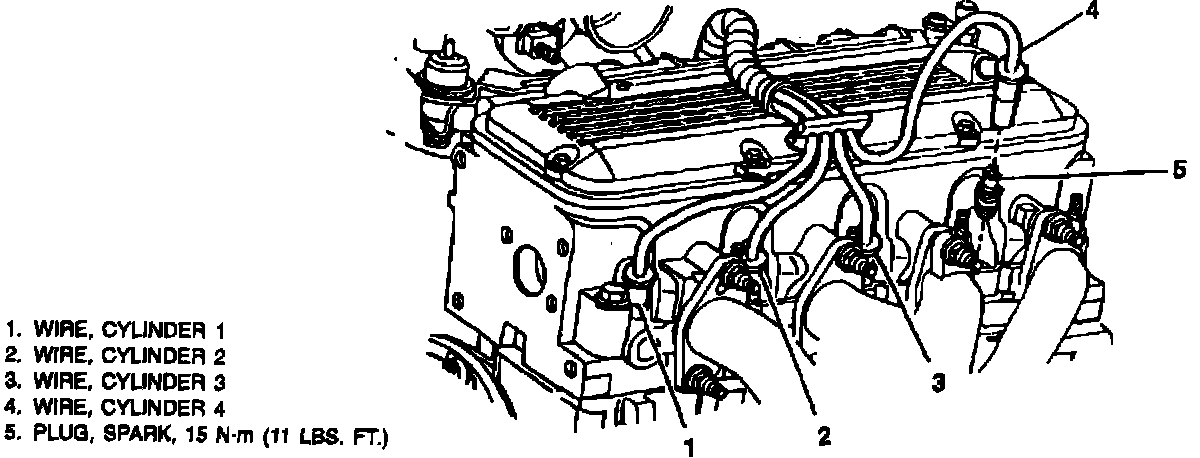

Spark Plug Wire Routing - Right Side 2.2L S/T PUP:
