Rear

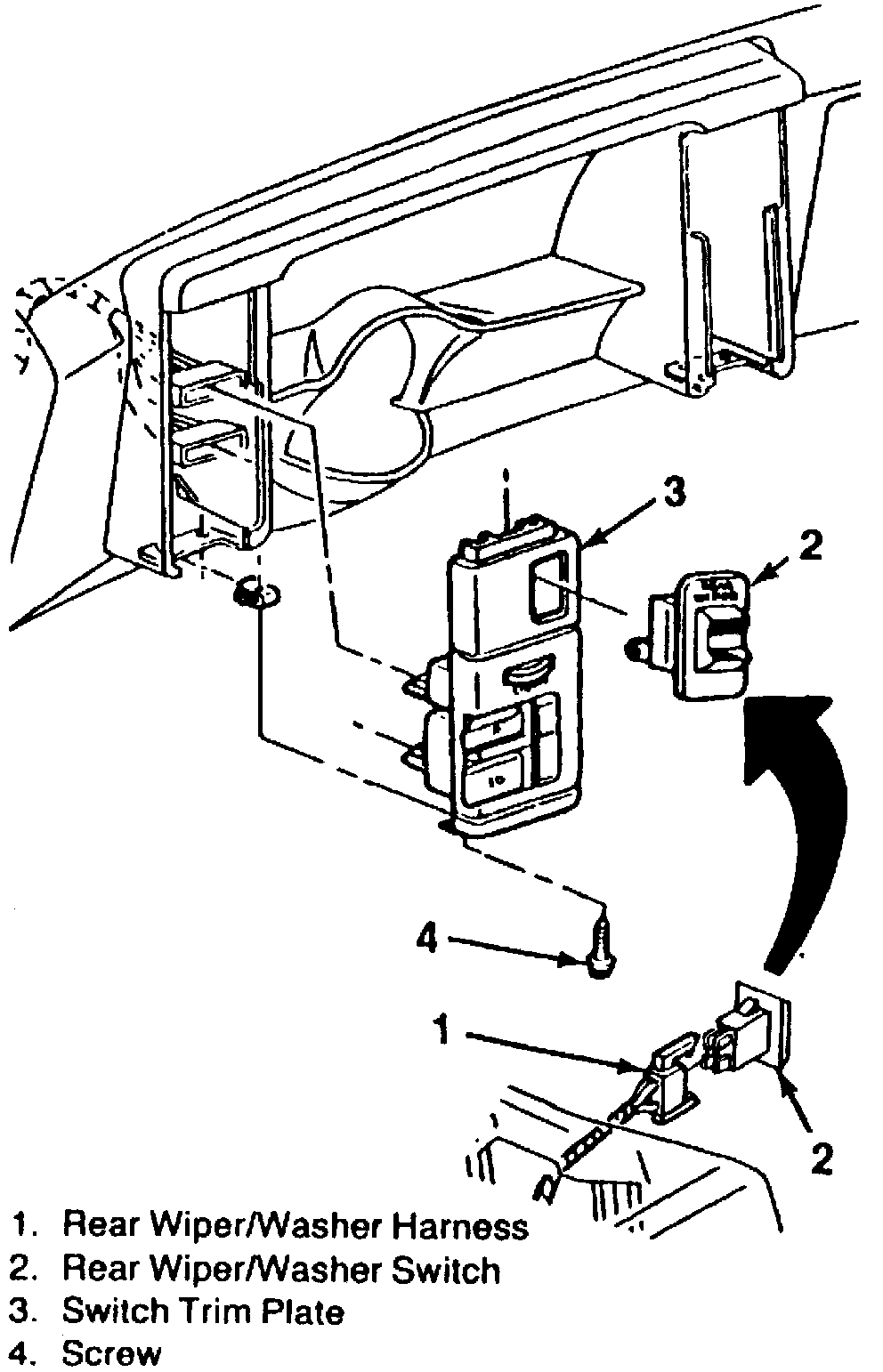

Fig. 9 Rear Wiper Switch Replacement:

1. Disconnect battery ground cable.
2. Remove switch trim plate and screws from instrument panel, Fig. 9.
3. Disconnect electrical connector, then remove switch.
4. Reverse procedure to install.
