Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1995
>>
Beretta L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Tachometer Connector
>>
Locations
Tachometer Connector: Locations

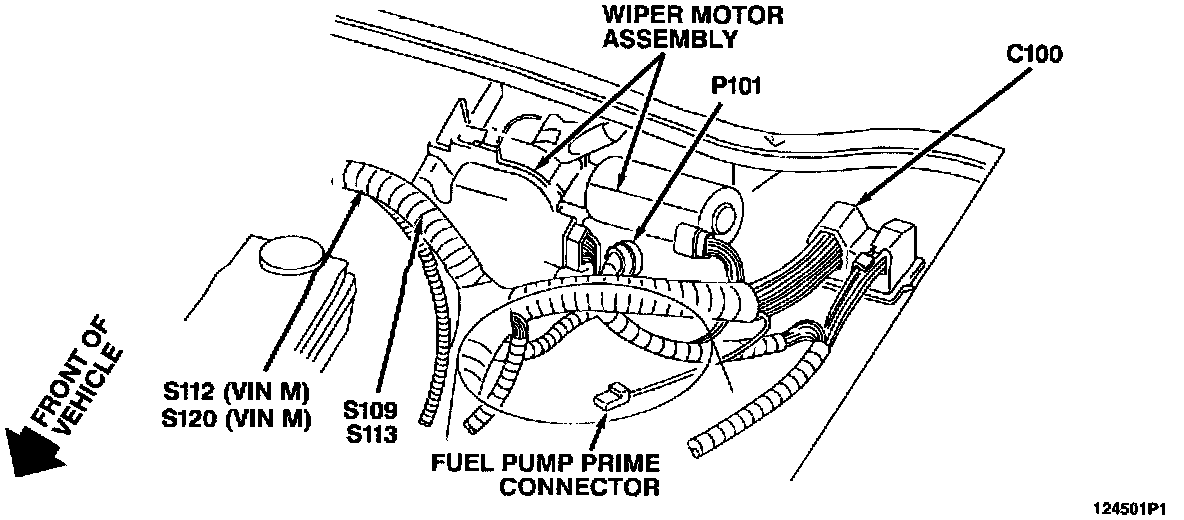

LH Rear Of Engine Compartment:

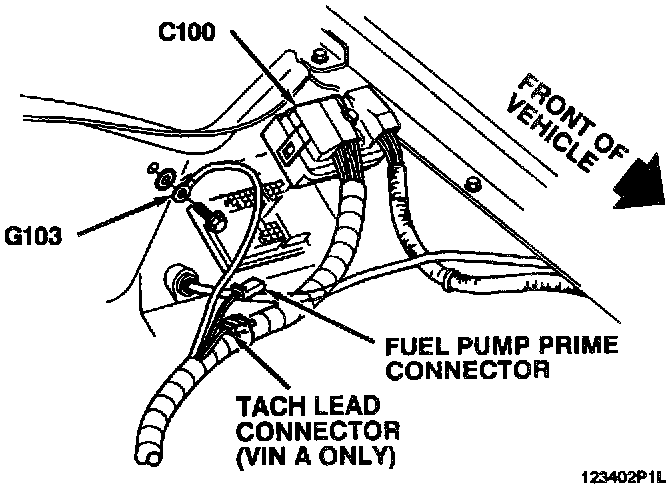

LH Rear Of Engine Compartment (VIN 4 shown, Others Similar):

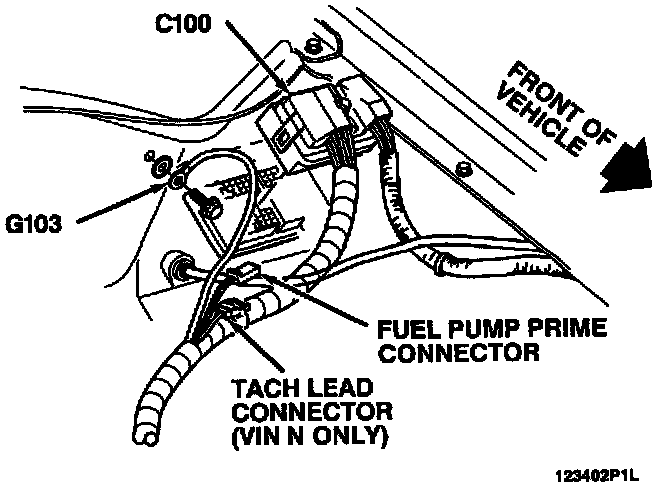

LH Rear Of Engine Compartment:
