Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1995
>>
Beretta L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Locations
>>
Pictoral Views
Pictoral Views

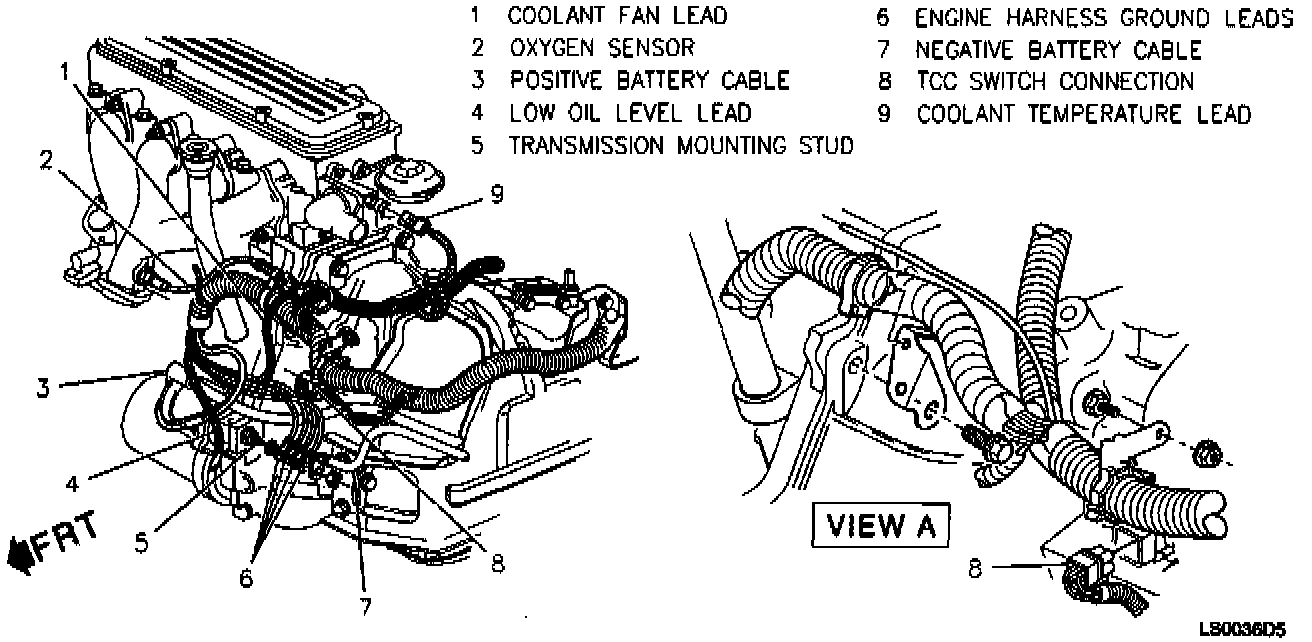

Front Engine Wiring:

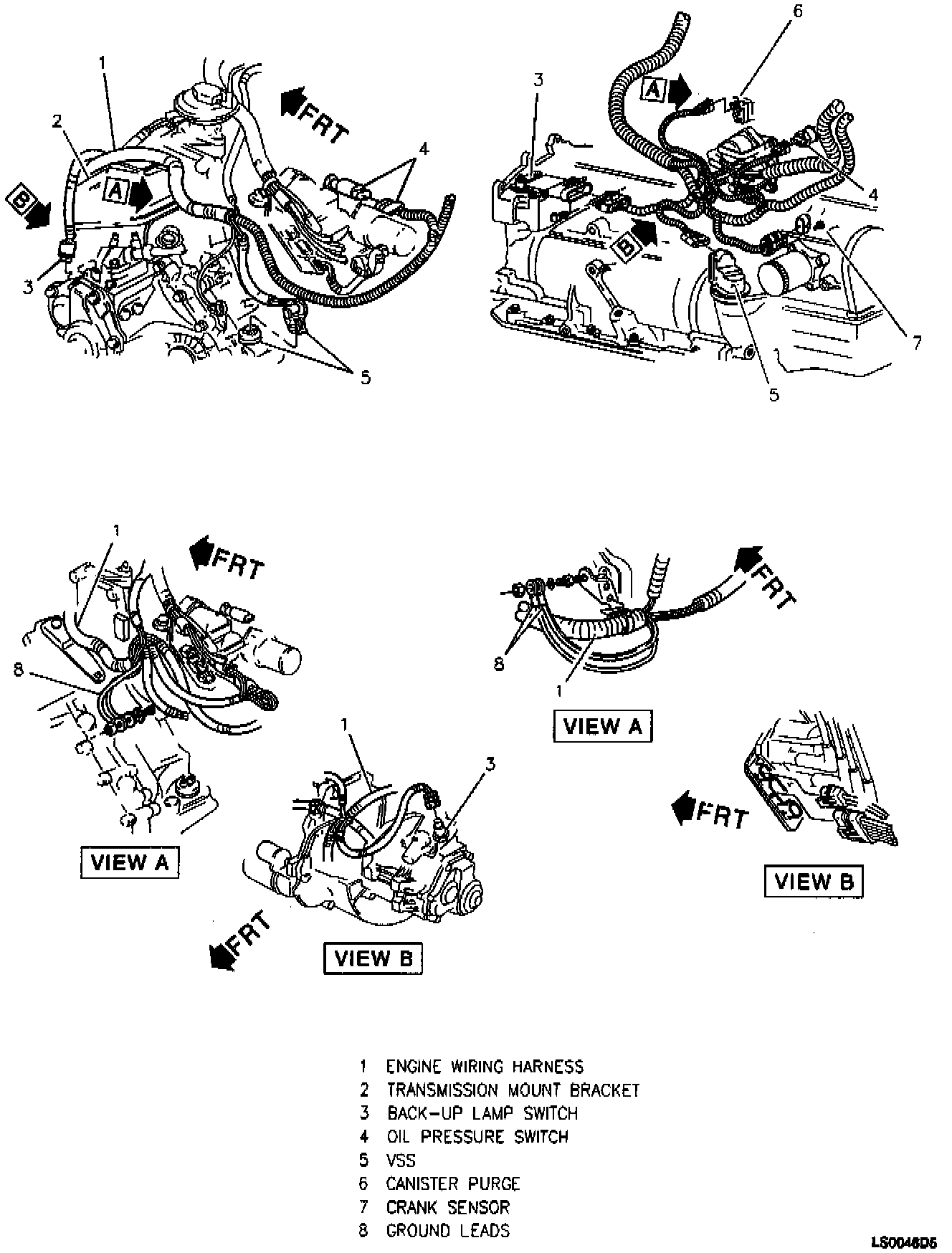

Rear Engine Wiring:

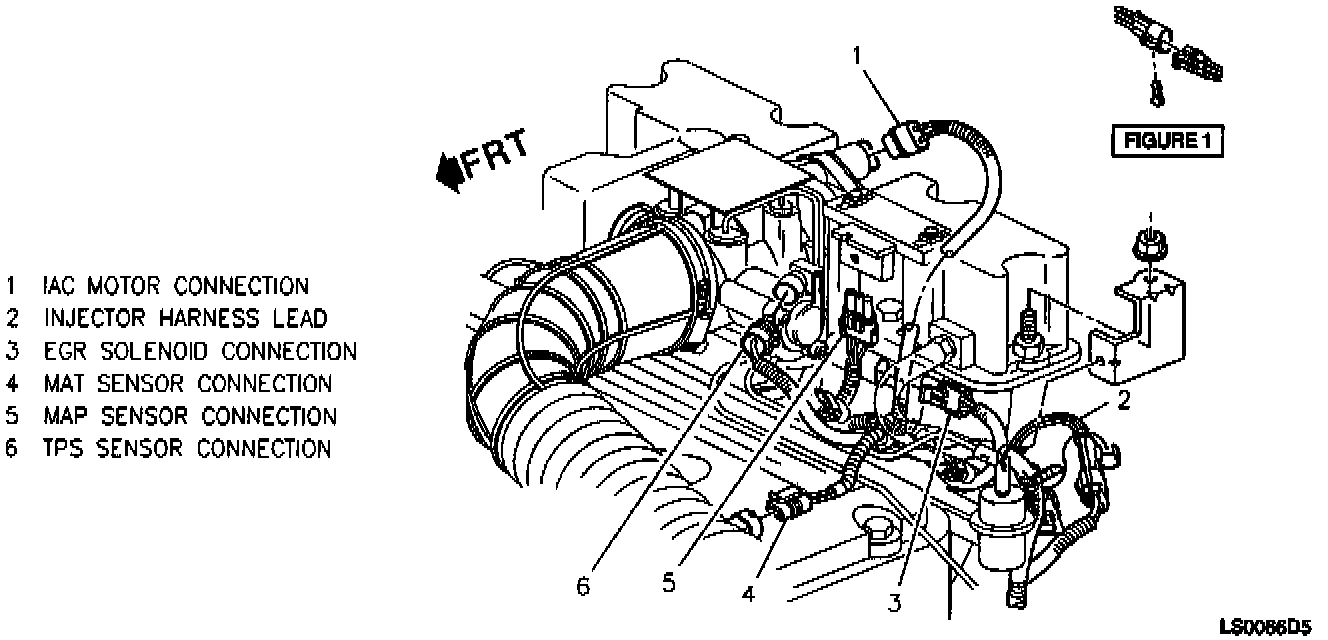

TBI Wiring:

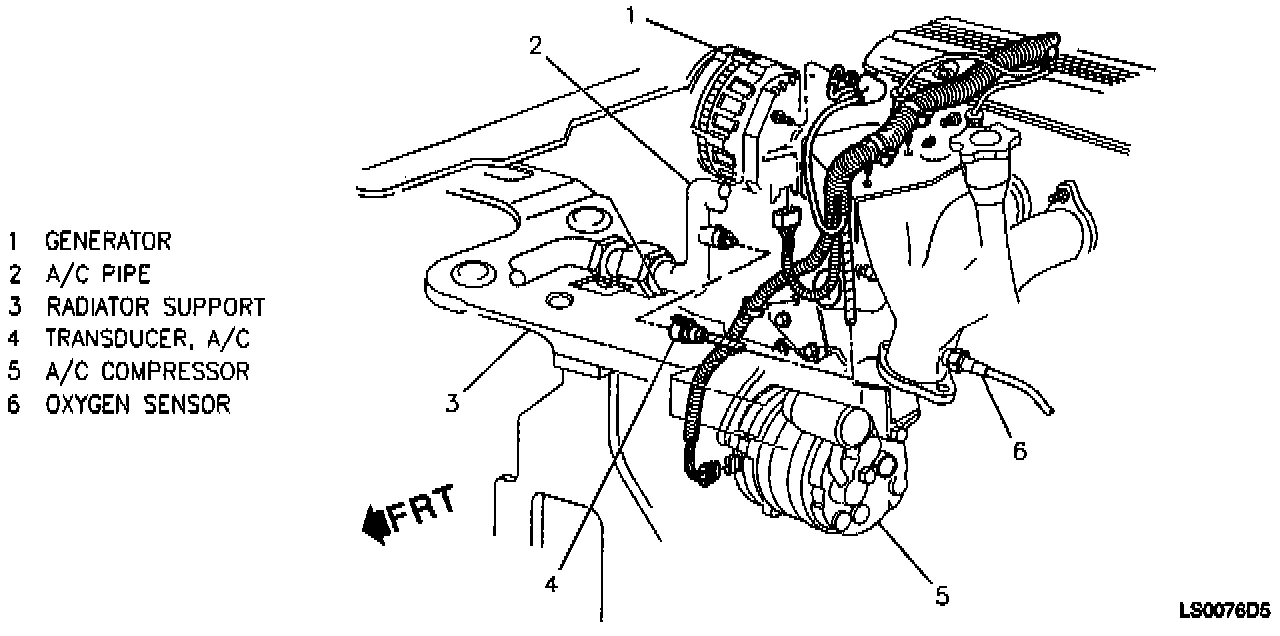

LH Side Of Engine:
